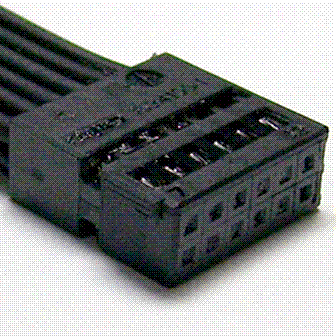

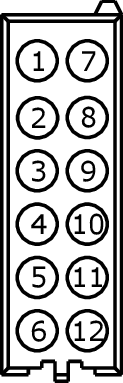

Connector End View (C4014C) - PARKING AID MODULE (PAM)
Connector: C4014C
Description
PARKING AID MODULE (PAM)
Color
BK
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
VMP16 (YE-GY) |
22 |
SENSOR - PARKING AID # REAR # (RIGHT INNER) |
|
|
3 |
VMP14 (WH-OG) |
22 |
SENSOR - PARKING AID # REAR # (CENTER) |
|
|
4 |
VMP17 (YE-OG) |
22 |
SENSOR - PARKING AID # REAR # (RIGHT OUTER) |
|
|
5 |
VMP15 (YE-GN) |
22 |
SENSOR - PARKING AID # REAR # (LEFT OUTER) |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
RMP07 (GN-WH) |
22 |
CTRL MOD. - PARKING AID # SENSORS REAR - |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
LMP07 (BU-WH) |
22 |
CTRL MOD. - PARKING AID # SENSORS REAR + |
|
|
12 |
* |
* |
Not Used |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1178 |
Service Part Number: BU2Z-14S411-YA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses Module - Reverse Park Aid (RPA) |
