Degas Bottle: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

Fill the degas bottle with the recommended coolant mixture and fill level.
Material

: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

3.

Tighten the pressure relief cap until at least one audible click is heard.

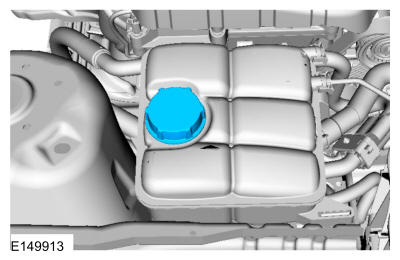

GFD61877

Courtesy of FORD MOTOR COMPANY
