Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- 2.
Refer to: Jacking and Lifting - Overview .
- 8.

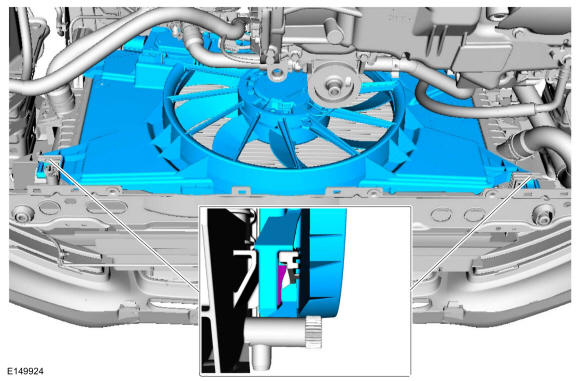

Release the lower radiator locking tabs and raise the cooling fan above the retaining clips. Remove the cooling fan motor and shroud.
