Coolant Pump: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .

2.

Drain the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .

3.

NOTE: If equipped.

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

4.

Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY

5.

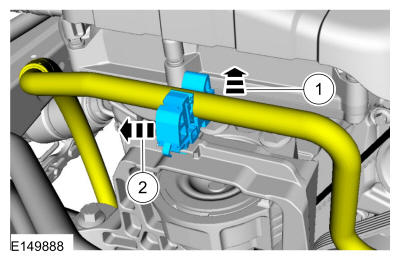

- 1.

  Unclip the A/C line from the support bracket.
- 2.

  Remove the A/C support bracket.

Courtesy of FORD MOTOR COMPANY

6.

Remove the engine mount bolts.

Courtesy of FORD MOTOR COMPANY

7.

Position a floor jack to support the engine.
Use the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY

8.

Loosen the coolant pump pulley bolts. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

9.

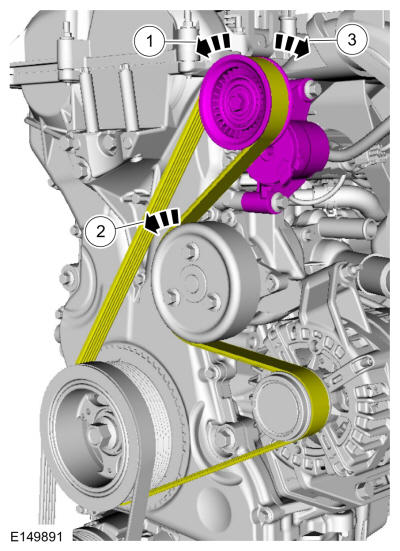

NOTE: Position the accessory drive belt so no coolant will drip on the belt, or the belt may be contaminated.
- 1.

  Using a suitable tool retract the accessory drive belt tensioner.
- 2.

  Position aside the accessory drive belt.
- 3.

  Release the accessory drive belt tensioner.

Courtesy of FORD MOTOR COMPANY

10.

Remove the bolts and the accessory drive belt tensioner.

Courtesy of FORD MOTOR COMPANY

11.

Remove the bolts and the coolant pump pulley.

Courtesy of FORD MOTOR COMPANY

12.

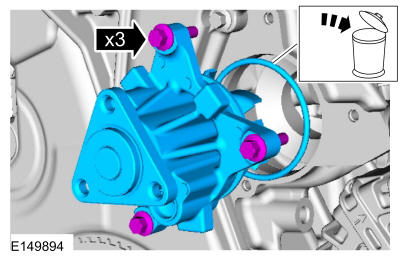

Remove the bolts and the coolant pump. Discard the O-ring seal.

Courtesy of FORD MOTOR COMPANY
