Engine Cooling - Component Location
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

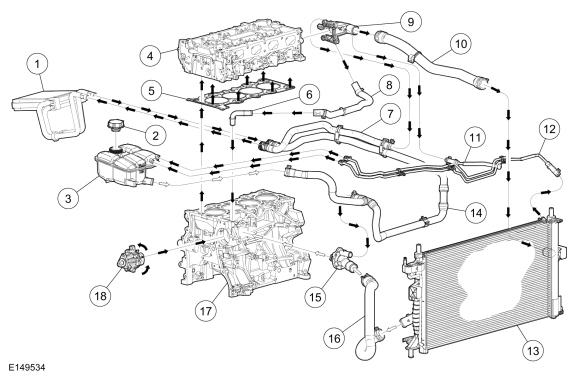

| Item | Description |
|---|---|
| 1 | Heater core |
| 2 | Pressure relief cap |
| 3 | Degas bottle |
| 4 | Cylinder head |
| 5 | Cylinder head gasket |
| 6 | Coolant bypass tube |
| 7 | Heater core inlet hose |
| 8 | Coolant bypass hose |
| 9 | Coolant outlet connector |
| 10 | Upper radiator hose |
| 11 | Degas bottle-to-engine hose |
| 12 | Radiator-to-degas bottle hose |
| 13 | Radiator |
| 14 | Heater core outlet hose |
| 15 | Thermostat and thermostat housing assembly |
| 16 | Lower radiator hose |
| 17 | Cylinder block |
