Front Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

Position the vehicle on a hoist. REFER to: Jacking and Lifting - Overview

2.

NOTE: The wheels and tires are shown removed for clarity.

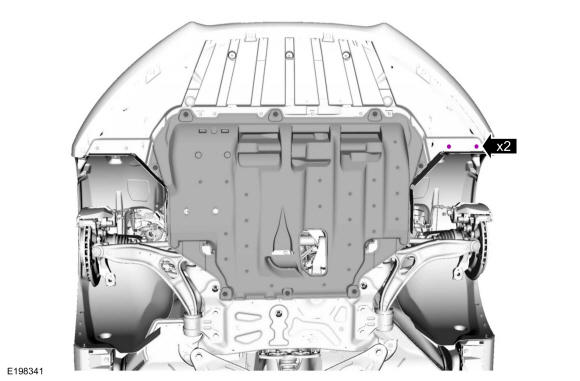

Remove the lower bumper closeout panel-to-inner fender liner screws.

Courtesy of FORD MOTOR COMPANY

3.

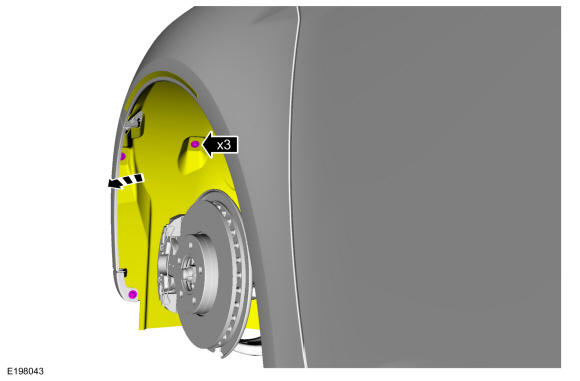

Remove 3 screws and position the fender liner aside.

Courtesy of FORD MOTOR COMPANY

4.

Remove the front active park assist sensor.
1. 1.

  Disconnect the front active park assist sensor electrical connector.
1. 2.

  Release the tabs.
1. 3.

  Remove the front active park assist sensor from the bracket.

Courtesy of FORD MOTOR COMPANY
