Active Park Assist Switch: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Automatic transmission shown, manual transmission similar.

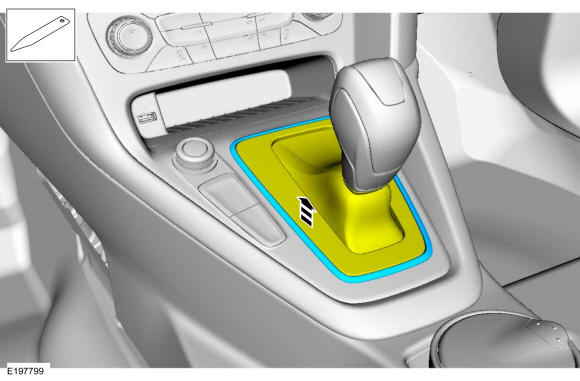

Remove the selector lever trim ring. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

2.

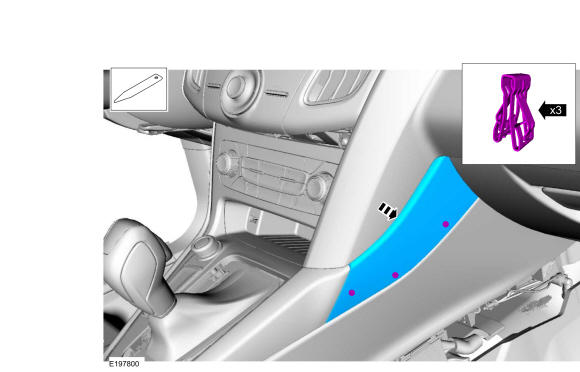

Remove the RH finish panelUse the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

3.

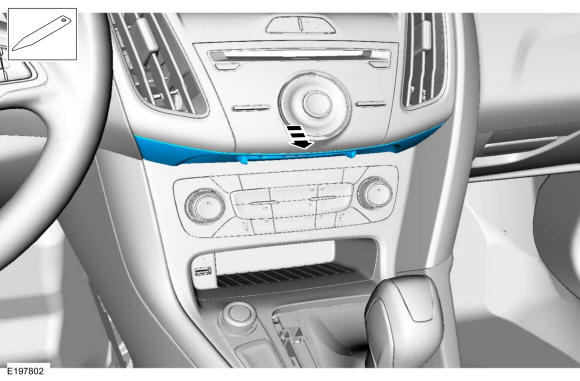

Remove the instrument panel center finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

4.

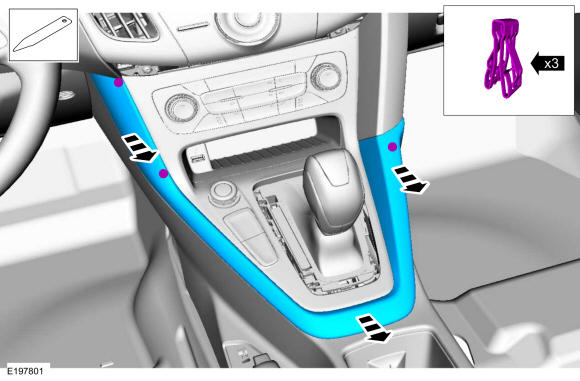

Release the clips and remove the floor console upper finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

5.

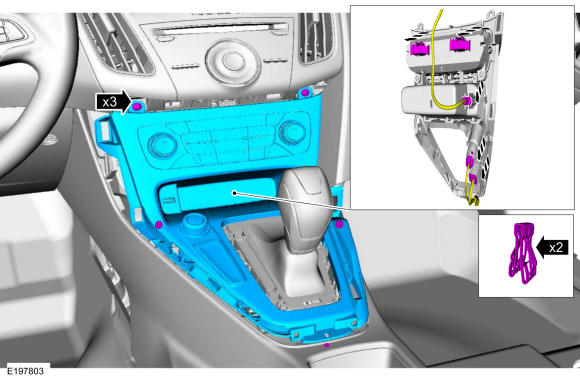

Remove the screws, release the clips and remove the floor console upper trim panel.
- Disconnect the electrical connectors.
  Torque

  : 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

6.

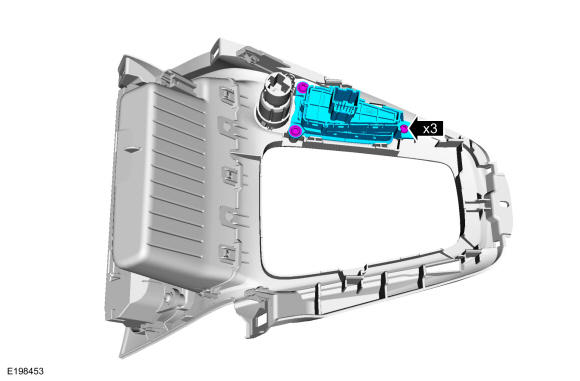

Remove the screws and the active park assist switch.

Courtesy of FORD MOTOR COMPANY
