Transmission Support Insulator: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

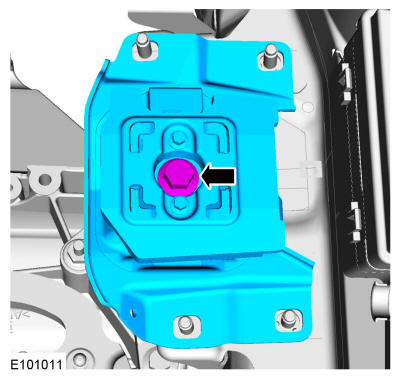

Courtesy of FORD MOTOR COMPANY

2.

WARNING: Make sure that a new bolt is installed.

Torque: 109 lb.ft (148 Nm)

Courtesy of FORD MOTOR COMPANY

3.

Remove the following items:
- Use the General Equipment: Wooden Block Use the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY

4.

Refer to: Jacking and Lifting - Overview .

5.
- 2.

  If equipped.

Courtesy of FORD MOTOR COMPANY

6.

Lower the Vehicle.

7.

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

8.

Refer to: Battery Tray .
