Section 463 (Manual Transmission - 5-Speed Manual Transmission - MTX75 (Except Electric Vehicle))
>>
Removal And Installation
>>
Neutral Position Sensor
>>
Removal
Neutral Position Sensor: Removal
WARNING:
This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
1.
Refer to:
Battery Tray
.

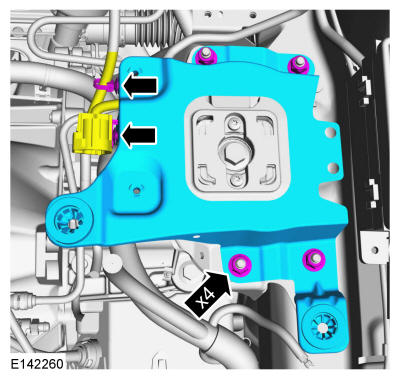

2.
Courtesy of FORD MOTOR COMPANY

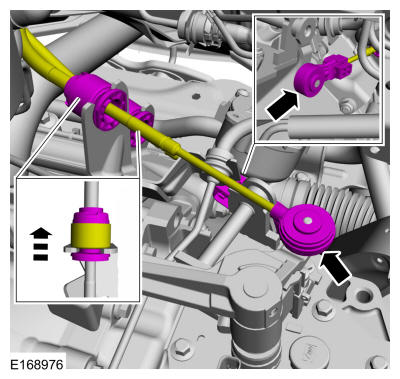

3.
NOTE:
Gearshift cables must not be kinked or bent.
Courtesy of FORD MOTOR COMPANY

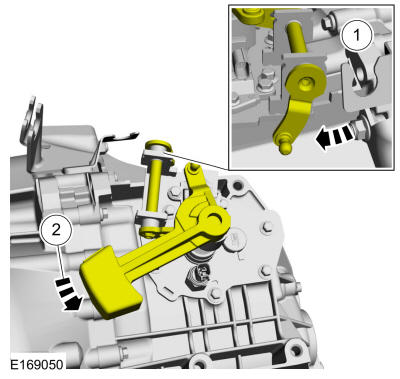

4.
Courtesy of FORD MOTOR COMPANY

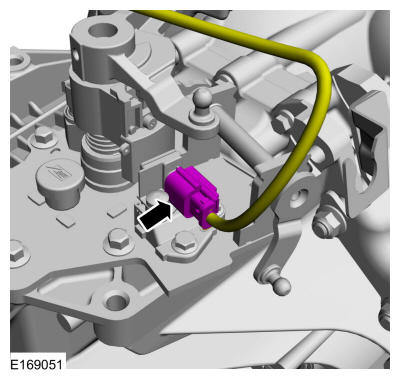

5.
Courtesy of FORD MOTOR COMPANY

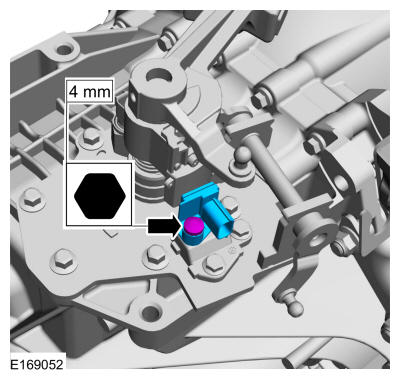

6.
Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY
