Halfshaft Seal RH: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

Refer to: Wheel and Tire .

2.

Remove engine undershield - If equipped.

3.

If equipped.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

6.

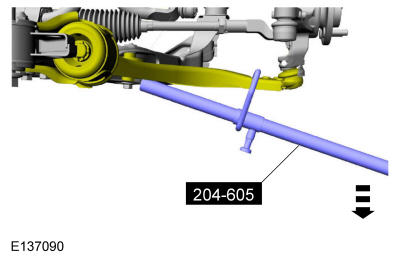

Use Special Service Tool: 204-605 Separator, Lower Arm Ball Joint.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

8.

Use Special Service Tool: 204-609 Protection Cap, Ball Joint Gaiter.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

10.

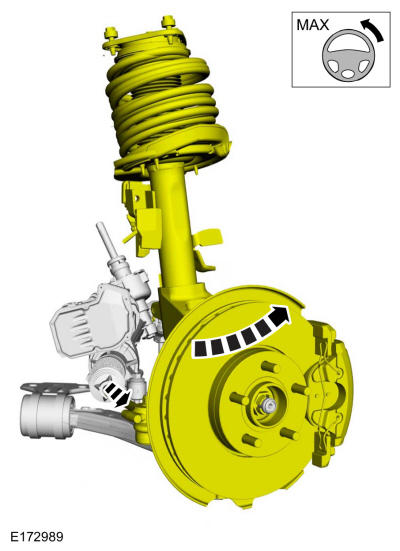

NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.

NOTE: Be prepared to collect escaping fluid.

Courtesy of FORD MOTOR COMPANY

11.

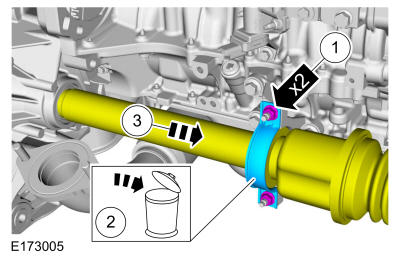

NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.

NOTE: The inner constant velocity (CV) joint must not be bent more than 18 °.

NOTE: The outer constant velocity (CV) joint must not be bent more than 45 °.

Courtesy of FORD MOTOR COMPANY

12.

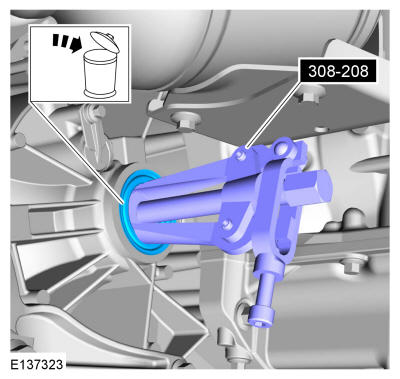

Use Special Service Tool: 308-208 Remover, Halfshaft Seal.

Courtesy of FORD MOTOR COMPANY
