Halfshaft Seal LH: Removal
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 2.

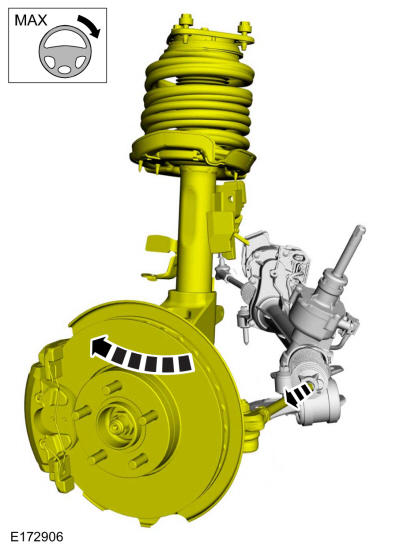

Remove engine undershield - If equipped.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 6.

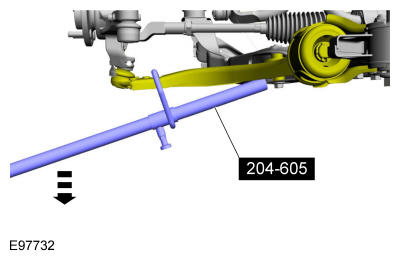

Use Special Service Tool: 204-605 Separator, Lower Arm Ball Joint.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Use Special Service Tool: 204-609 Protection Cap, Ball Joint Gaiter.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 11.

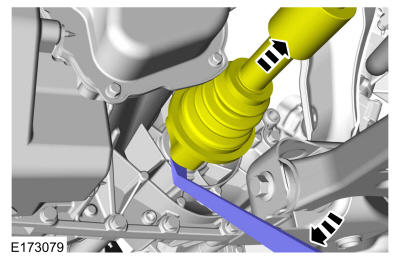

NOTE:
Make sure that the strut is not moved more than necessary to prevent damage to top mount.
NOTE:
The inner constant velocity (CV) joint must not be bent more than 18 °.
NOTE:
The outer constant velocity (CV) joint must not be bent more than 45 °.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

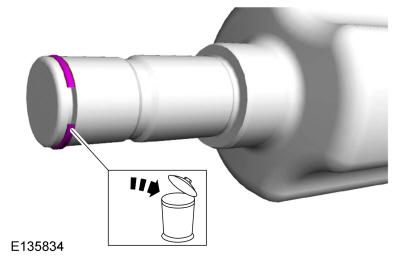

- 13.

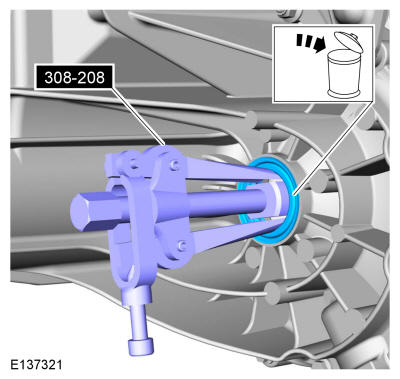

Use Special Service Tool: 308-208 Remover, Halfshaft Seal.
 Courtesy of FORD MOTOR COMPANY
|
