Halfshaft Seal LH: Installation
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 3.NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.NOTE: The inner constant velocity (CV) joint must not be bent more than 18 °.NOTE: The outer constant velocity (CV) joint must not be bent more than 45 °.NOTE: Take extra care not to damage the seal.
- 1.

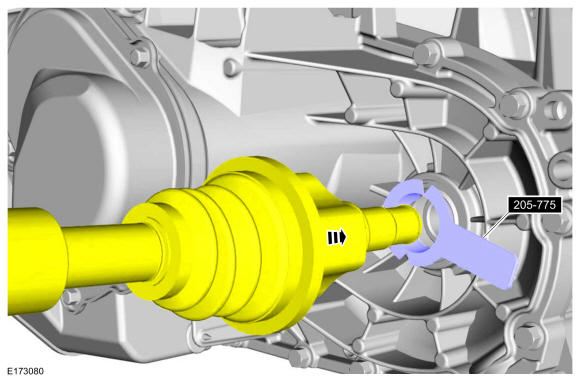

Use Special Service Tool: 205-775 Protector, Halfshaft Seal.
- 1.

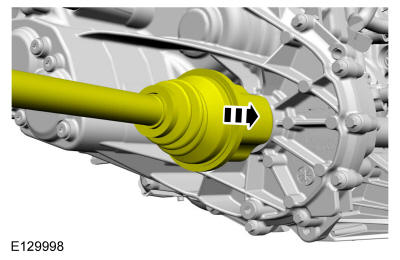

- 4.NOTE: Take extra care not to damage the seal.
Remove the special tool before completely installing the halfshaft. Remove Special Service Tool: 205-775 Protector, Halfshaft Seal.

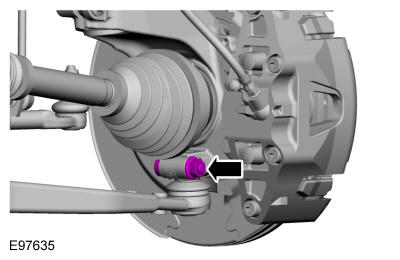

- 8.NOTE: Make sure a new bolt is installed.NOTE: Make sure a new nut is installed.
Torque: 61 lb.ft (83 Nm)
- 11.
Refer to: Transmission Fluid Level Check .
- 13.
Refer to: Wheel and Tire .
