3rd-4th Gear Synchronizer: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use vise jaws protectors.

1.

NOTE: Make sure that the components are installed to the position noted before removal.

Lubricate the synchronizer rings with manual transmission fluid before assembly.

Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

2.

Assemble the following items:

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Make sure that a new component is installed.

Courtesy of FORD MOTOR COMPANY

5.

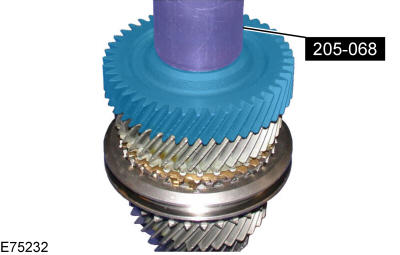

Use Special Service Tool: 205-068 Installer, Drive Pinion Bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY

6.

Install the following items:
2. Use Special Service Tool: 308-044 Installer, Transmission Extension Housing Bushing/Seal.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Make sure that the components are installed to the position noted before removal.

Courtesy of FORD MOTOR COMPANY

8.

Keep the reverse gear idler shaft bearing block raised while installing the shaft. Use Special Service Tool: 308-214 Remover, Hydraulic Line Spring Clip.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

10.

Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY

11.
- 1.

  Install the input and output shafts together.
- 2.

  Move the input and output shafts to one side.
- 3.

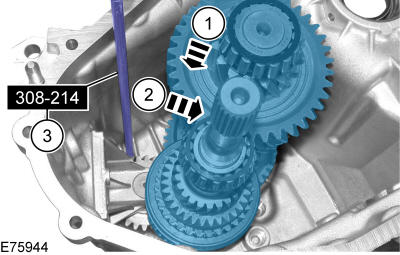

  Remove Special Service Tool: 308-214 Remover, Hydraulic Line Spring Clip.

Courtesy of FORD MOTOR COMPANY

12.

NOTE: Make sure that the components are installed to the position noted before removal.

Install the following items:

Courtesy of FORD MOTOR COMPANY

13.

Install the following items:
1. Material: Gasket Maker / TA-16 (WSK-M2G348-A5)
  Torque: 25 lb.ft (34 Nm)

Courtesy of FORD MOTOR COMPANY

14.

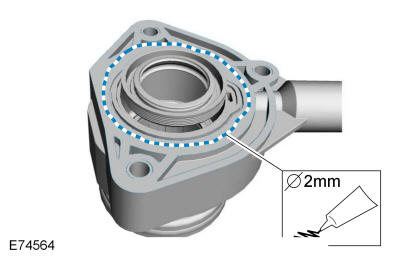

Material: Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY

15.

NOTE: The guide pins must remain installed in the gearbox housing.

Courtesy of FORD MOTOR COMPANY

16.

Tighten the bolts in a crisscross sequence.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

17.

NOTE: Make sure that a new component is installed.

Use Special Service Tool: 205-115 Installer, Drive Pinion Seal.

Courtesy of FORD MOTOR COMPANY

18.

NOTE: Make sure that a new component is installed.

Material: Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY

19.

Install the following items:
1. Use Special Service Tool: 205-115 Installer, Drive Pinion Seal.
3. Torque
  : 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

20.

Remove the adhesive tape from the input shaft splines.

Courtesy of FORD MOTOR COMPANY

22.

Material: Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY

23.

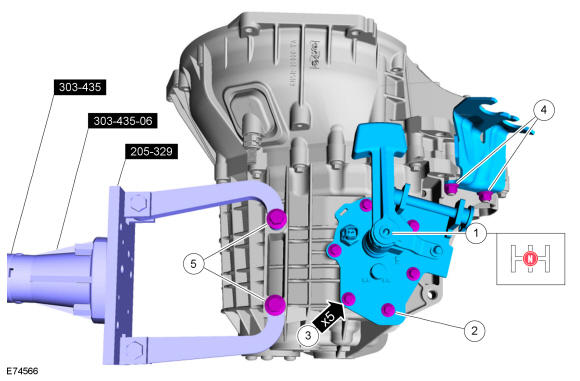

- 2.

  NOTE: Note the different lengths of the bolts.
Torque: 19 lb.ft (26 Nm)

3.

Torque: 19 lb.ft (26 Nm)

4.

Torque: 30 lb.ft (40 Nm)

5.

Remove Special Service Tool: 205-329 Mounting Bracket, Engine/Differential., 303-435-06 Mounting Bracket for 303-435., 303-435 Mounting Stand.
