Input Shaft: Disassembly

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

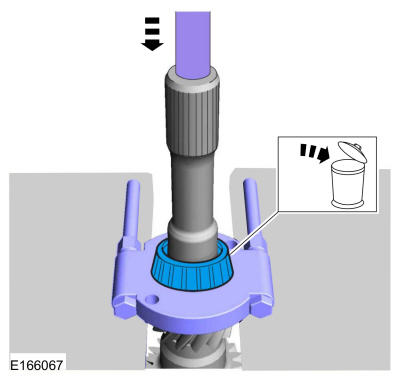

Using the bearing separator and a hydraulic press, remove and discard the bearing. Use the General Equipment: Hydraulic Press Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

2.

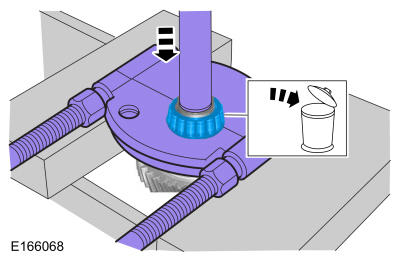

Using the bearing separator and a hydraulic press, remove and discard the bearing. Use the General Equipment: Hydraulic Press Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

3.

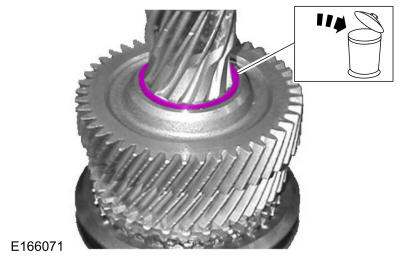

Remove and discard the snap ring.

Courtesy of FORD MOTOR COMPANY

4.

Using the bearing separator and a hydraulic press, Remove the 4th gear. Use the General Equipment: Hydraulic Press Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

5.

Remove the 3rd gear, the needle bearing and the 3rd gear synchronizer ring. Remove and discard the snap ring.

Courtesy of FORD MOTOR COMPANY

6.

Remove the 3rd and 2nd gear synchronizer assembly, 2nd gear and the needle bearing.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: The detent balls are spring-loaded. Take care when removing the selector ring from the synchronizer hub.

NOTE: Mark the installed position of the selector ring.

Disassemble the following items:
- 1.

  Selector ring
- 2.

  Synchronizer body
- 3.

  Compression springs
- 4.

  Blocker bars
- 5.

  Detent balls

Courtesy of FORD MOTOR COMPANY
