Input Shaft: Assembly

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Do not lubricate new roller bearings.

Lubricate all other transmission components with transmission fluid during reassembly.

Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

2.

NOTE: Observe the markings on the selector ring.

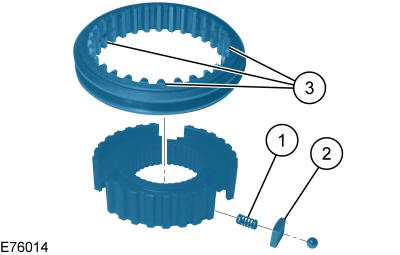

Assemble the following items:
- 1.

  Compression springs
- 2.

  Blocker bars and detent balls
- 3.

  Selector ring

Courtesy of FORD MOTOR COMPANY

3.

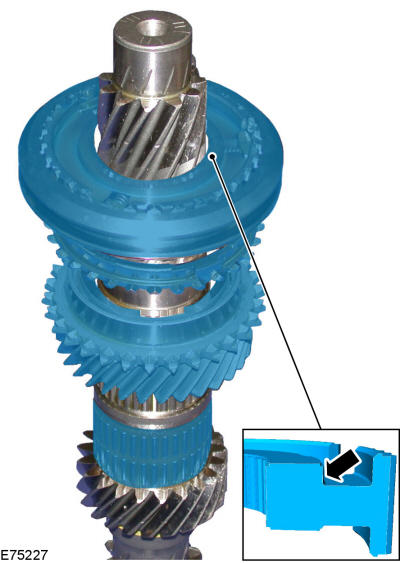

Install the needle bearing, the 2nd gear, the 3rd and 2nd gear synchronizer assembly.

Courtesy of FORD MOTOR COMPANY

4.

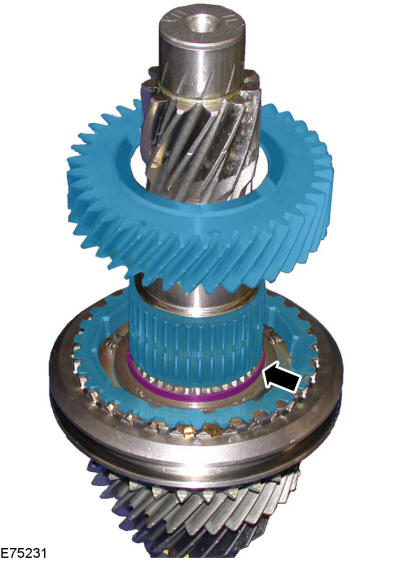

Install a new snap ring. Install the synchronizer ring, the needle bearing and the 3rd gear.

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Use a tube to press the gear on.

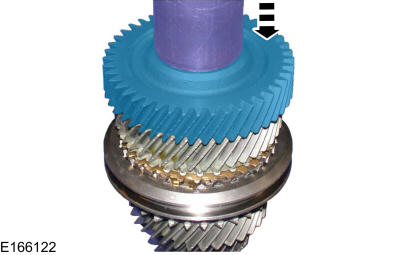

Install the 4th gear. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY

6.

Install the following items:
1. Install a new snap ring.

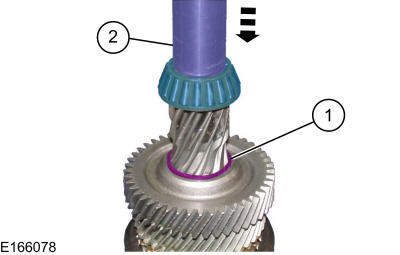

2. Install a new bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Using a tube, press the bearing on by the inner race only.

NOTE: The roller bearing must not be lubricated.

Install a new bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
