Disassembly And Assembly Of Subassemblies: Differential: Disassembly
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: Use vise jaw protectors.
Clamp the differential in a vise. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors
- 2.

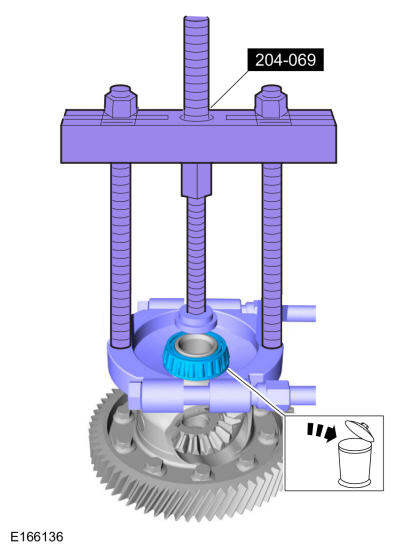

Remove and discard the bearing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Bearing Separator
- 3.
Remove and discard the bearing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Bearing Separator
- 4.

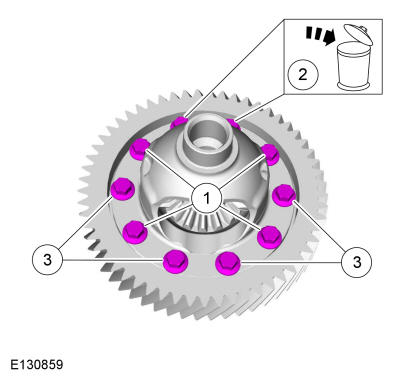

Remove the following items:- 1.
Loosen: Four turn(s)
- 2.

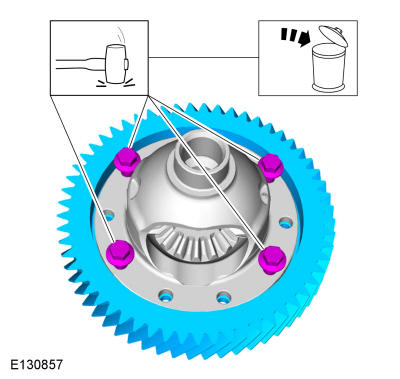

Remove and discard the bolts.
- 3.
Save four bolts for reassembly.
- 1.
