Disassembly And Assembly Of Subassemblies: Differential: Assembly
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: Do not lubricate new roller bearings.
Lubricate all other transmission components with transmission fluid during reassembly.
Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
- 2.NOTE: Use vise jaw protectors.
Clamp the differential in a vise. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors

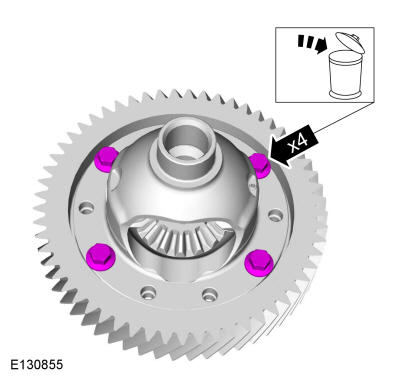

- 3.NOTE: Make sure that the mating faces are clean and free of foreign material.
- Install the four bolts saved during disassembly.
- Tighten each bolt 1 turn at a time in the sequence shown.
Torque: 61 lb.ft (83 Nm)

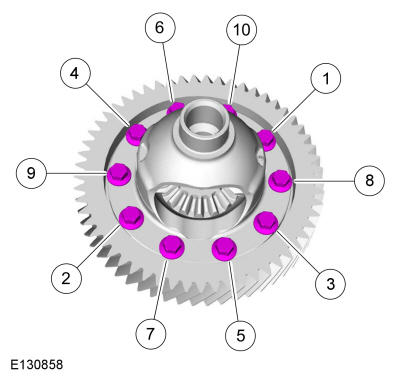

- 5.NOTE: Make sure that new bolts are installed.
Tighten the bolts in sequence shown.
Torque: 61 lb.ft (83 Nm)

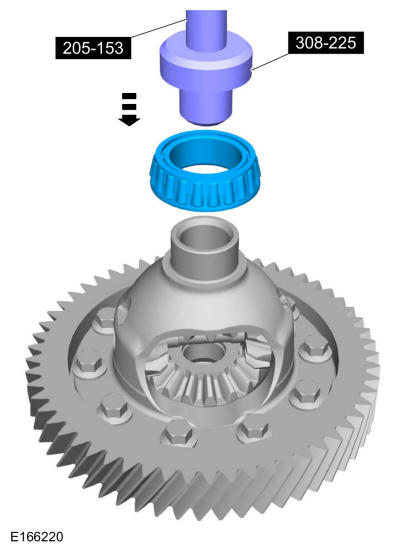

- 6.NOTE: The roller bearing must not be lubricated.
Install a new bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-225 (T94P-7025-GH) Installer, Differential Bearing Cup.
- 7.NOTE: The roller bearing must not be lubricated.
Install a new bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-225 (T94P-7025-GH) Installer, Differential Bearing Cup.
