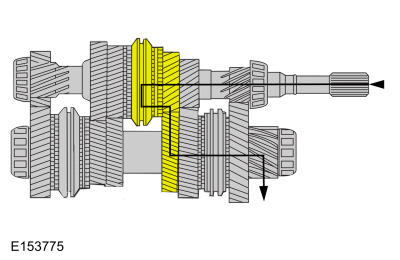

3rd Gear
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- The input shaft drives the output shaft.
- The 3rd gear on the input shaft drives 3rd gear on the output shaft.
- The 3rd/4th gear synchronizer is splined to the input shaft.
- When the 3-4 synchronizer sleeve is shifted forward, 3rd gear is locked to the input shaft.
- The output shaft drives the differential ring gear.
- The power flows through the side and pinion gears to the halfshafts.
