Side Impact Sensor - Front Door

NOTE: RH shown, LH similar.

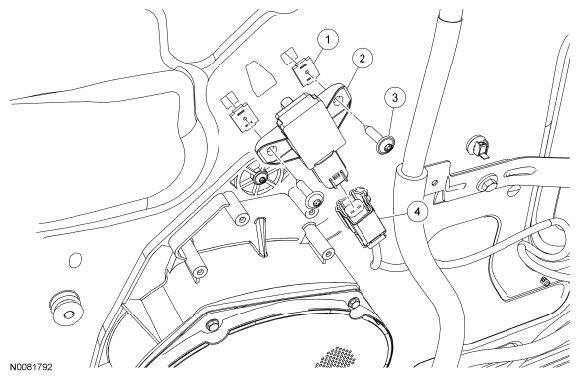

Fig 1: Identifying Side Impact Sensor, Electrical Connector, Screw And Insert Nut
G06078518Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W713617 Insert nut (2 required)
2 14B345 Side impact sensor (pressure sensor)
3 W705314 Side impact sensor screw (2 required)
4 - Electrical connector (part of 14630)
WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the airbags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE: Always make sure the correct Supplemental Restraint System (SRS) component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford Catalog Advantage™ or equivalent to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
  2. Remove the front door trim panel. For additional information, Refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Disconnect the side impact sensor electrical connector.
  4. Remove the 2 screws and side impact sensor.
  5. NOTE: To prevent stripping the insert nuts, tighten the side impact sensor screws only enough to retain the side impact sensor correctly.

    To install, reverse the removal procedure.

    • Inspect the insert nut for damage. If the insert nut is damaged, install a new insert.
  6. Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
