Parking Brake Control: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the floor console. Refer to: Floor Console - Vehicles With: Center Armrest . Refer to: Floor Console - Vehicles Without: Center Armrest .

2.

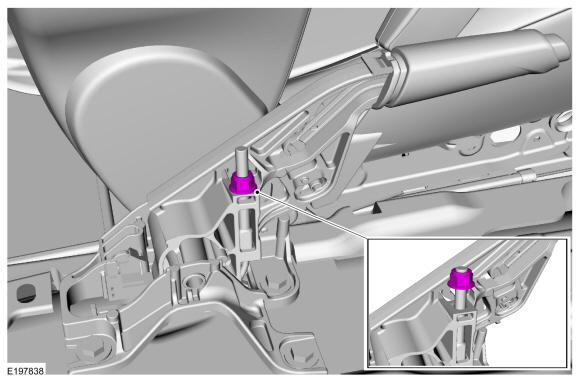

Loosen the parking brake cable adjustment nut.

GFD60654

Courtesy of FORD MOTOR COMPANY

3.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

4.

Remove and discard the nuts, detach the exhaust pipe and discard the gasket.
Torque: 35 lb.ft (48 Nm)

GFD60646

Courtesy of FORD MOTOR COMPANY

5.

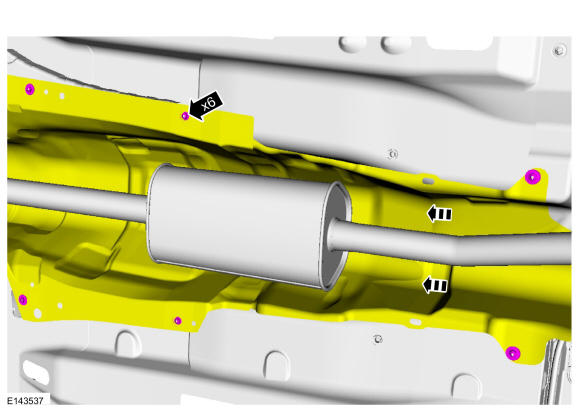

Remove the nuts and position the exhaust heat shield forward.
Torque: 97 lb.in (11 Nm)

GFD60647

Courtesy of FORD MOTOR COMPANY

6.

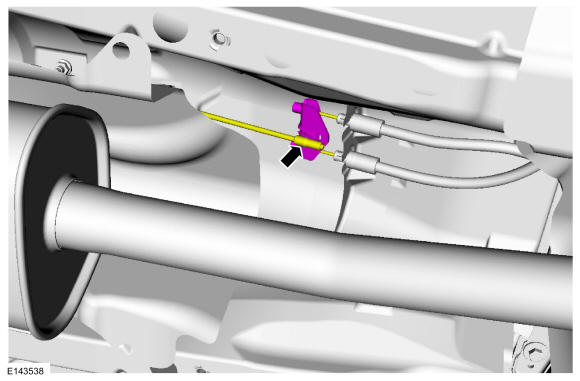

Detach the front parking brake cable from the equalizer.

GFD60655

Courtesy of FORD MOTOR COMPANY

7.

NOTE: During installation, make sure the cable seal is fully seated.

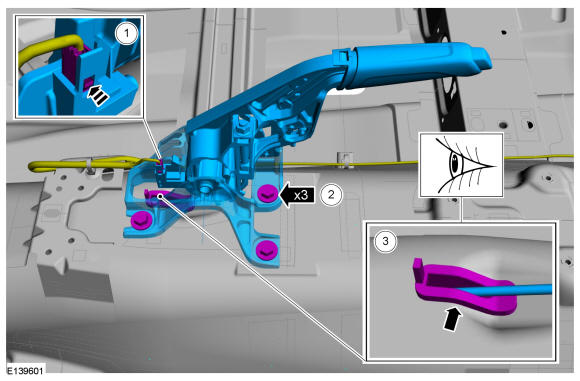

Remove the parking brake control.
- 1.

  Disconnect the parking brake switch electrical connector
- 2.

  Remove the bolts.
  Torque: 26 lb.ft (35 Nm)
- 3.

  Detach the cable seal and remove the parking brake control.

GFD60656

Courtesy of FORD MOTOR COMPANY
