Parking Brake Cable - Vehicles With: Rear Disc Brakes: Removal
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 3.
Remove the rear wheels and tires. Refer to: Wheel and Tire .
- 4.
Remove and discard the nuts, detach the exhaust pipe and discard the gasket.Torque: 35 lb.ft (48 Nm)
- 8.

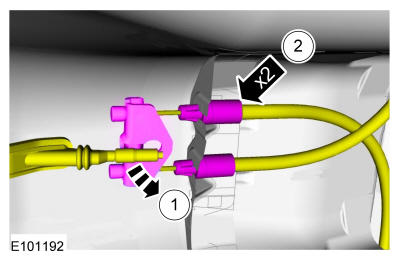

Detach the front parking brake cable from the equalizer and detach the rear parking brake cables from the body.
- 9.
Detach the parking brake cables from the brake calipers on both sides.- 1.
Rotate the brake caliper lever.
- 2.
Detach the parking brake caliper from the brake caliper lever.
- 3.
Detach the parking brake cable from the brake caliper bracket.
- 1.
- 10.
- 1.
Remove the bolts and detach the parking brake cable brackets from the body on both sides.Torque: 97 lb.in (11 Nm)
- 2.
Remove the bolts and detach the parking brake cable brackets from the suspension arms on both sides.Torque: 17 lb.in (1.9 Nm)
- Detach the remaining parking brake cable brackets and remove the parking brake cables.
