Parking Brake Cable Adjustment - Vehicles With: Rear Disc Brakes
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Adjustment
- 3.
Refer to: Jacking and Lifting - Overview .
- 4.NOTE: Make sure the parking brake control is fully released.NOTE: This step requires the aid of another technician.
- 1.

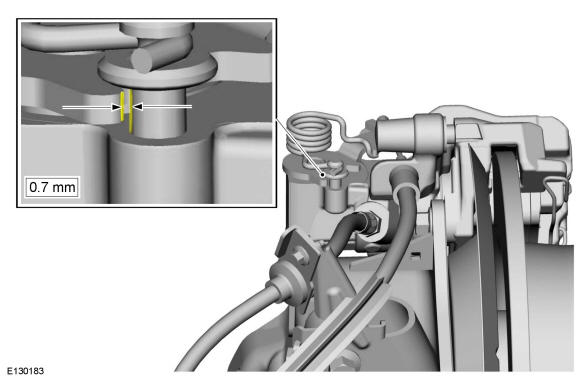

Insert a 0.7 mm feeler gauge between the parking brake lever and the brake caliper abutment, on both sides.
- 2.
Tighten the parking brake cable adjustment nut until movement is observed on one of the parking brake levers.
- 3.
Remove the feeler gauges.
- 1.
