Parking Brake Control: Removal

WARNING: This page is about a different car, the 2014 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: FLOOR CONSOLE - VEHICLES WITH: CENTER ARMREST .

    Refer to: FLOOR CONSOLE - VEHICLES WITHOUT: CENTER ARMREST .

  2. NOTE: Vehicles without a parking brake control boot.
    G08056111
  3. NOTE: Vehicles with a parking brake control boot.
    G08056112
  4. Refer to: JACKING AND LIFTING - OVERVIEW .
  5. Torque  : 35 lb.ft (48 Nm)

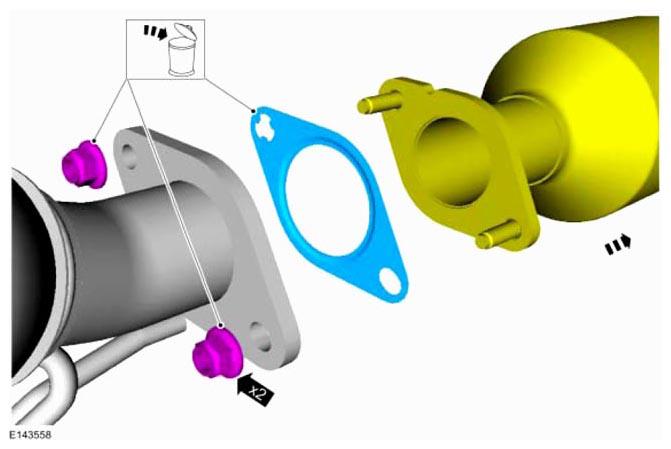

    G08056113
  6. Torque  : 97 lb.in (11 Nm)

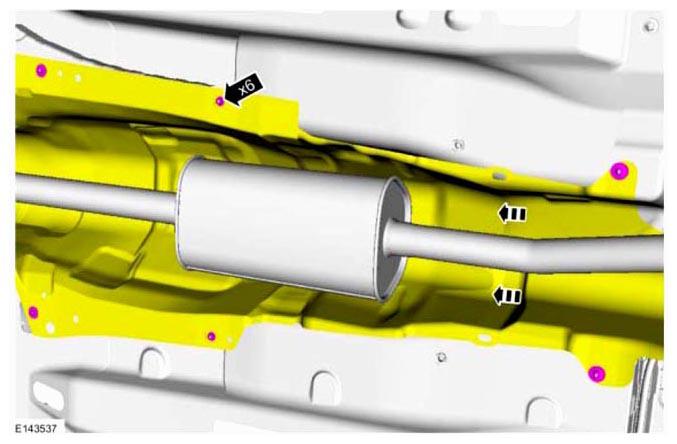

    G08056114

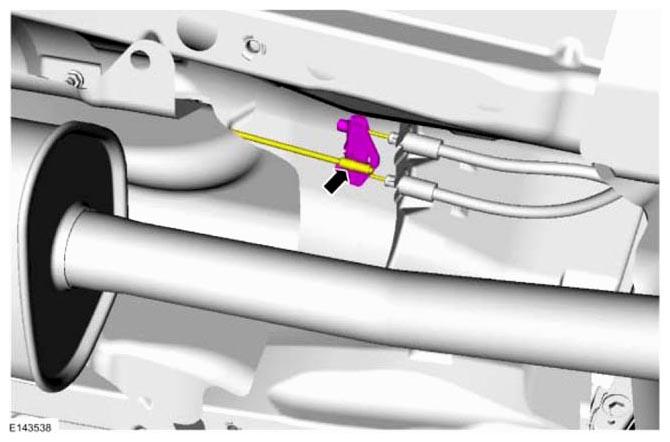

  7. G08056115
  8. NOTE: Vehicles without a parking brake control boot.

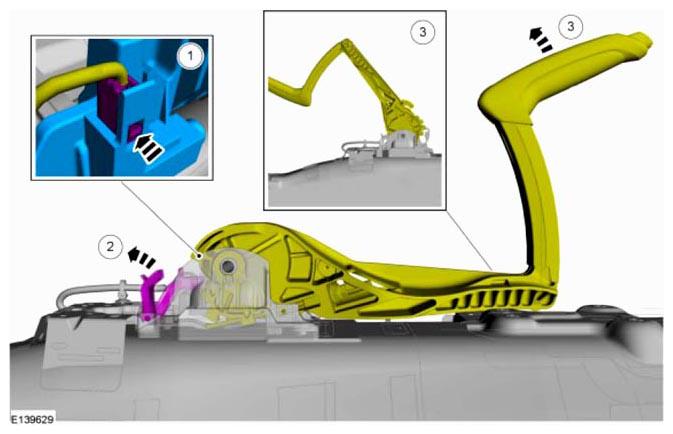

    G08056116
  9. NOTE: Vehicles without a parking brake control boot.
    NOTE: Make sure the cable seal is fully seated.

    Visual check.

    Torque  : 26 lb.ft (35 Nm)

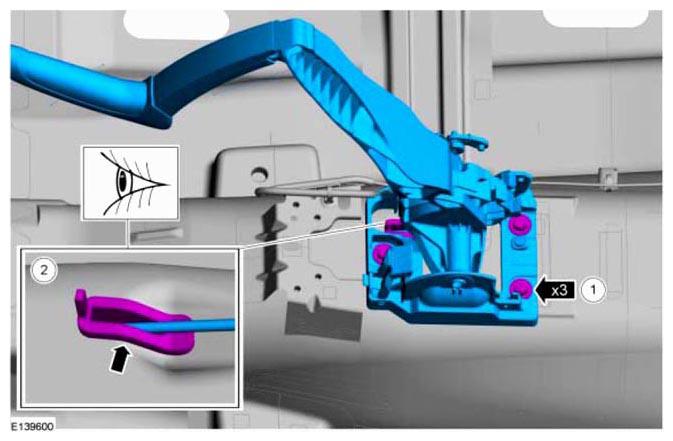

    G08056117
  10. NOTE: Vehicles with a parking brake control boot.
    NOTE: Make sure the cable seal is fully seated.

    Visual check.

    Torque  : 26 lb.ft (35 Nm)

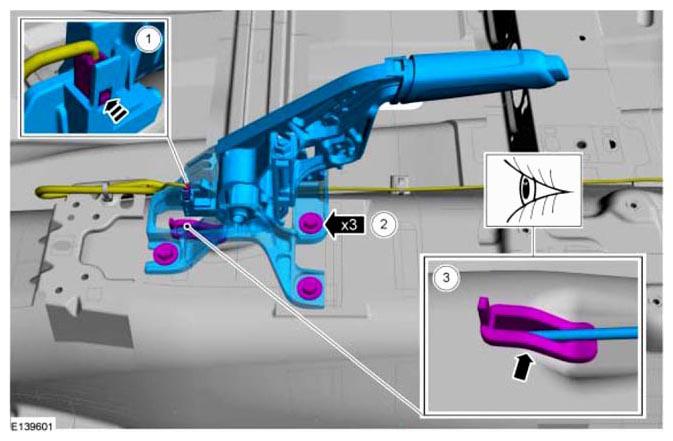

    G08056118
