Supplemental Restraint System

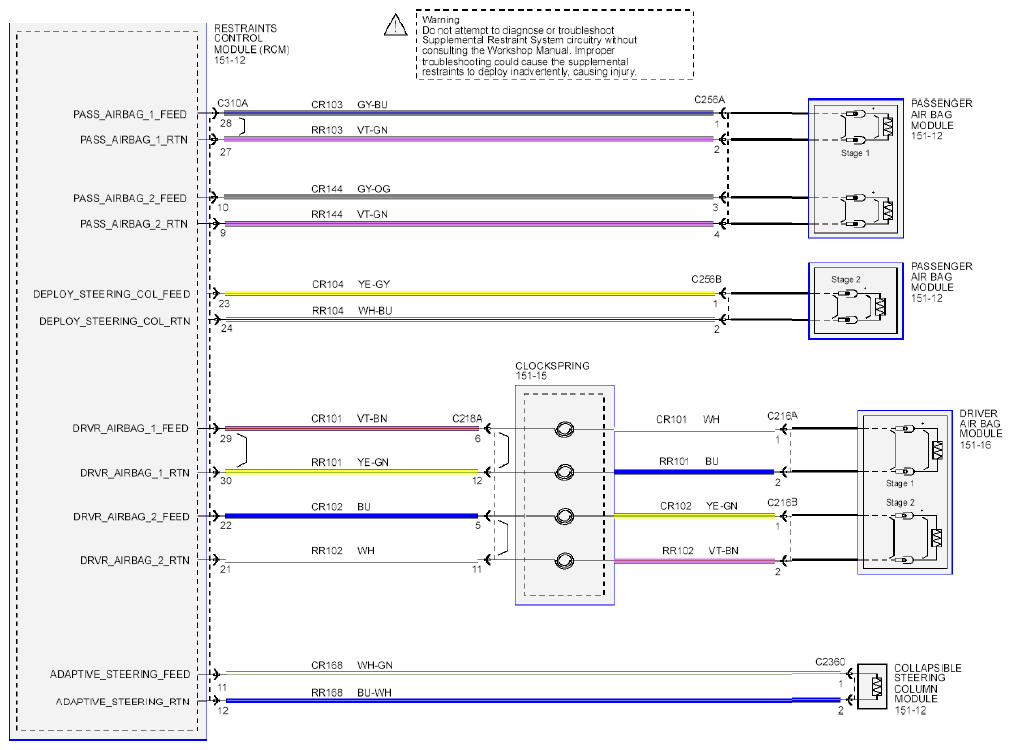

Fig 1: Supplemental Restraint System - Wiring Diagram (1 Of 8)

Courtesy of FORD MOTOR CO.

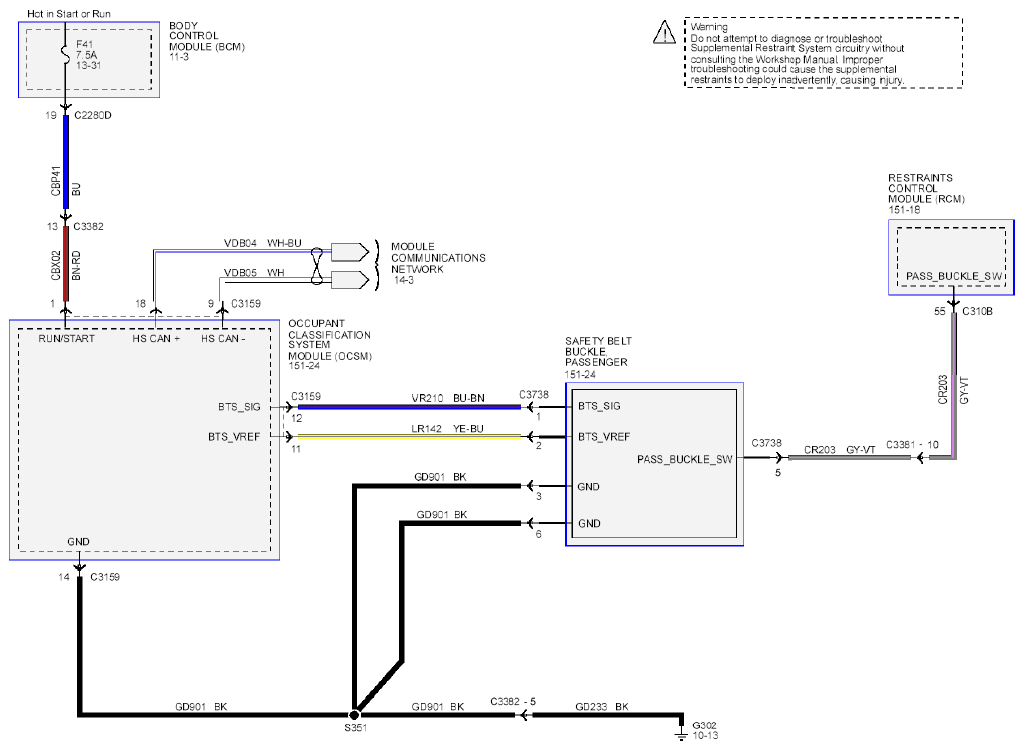

Fig 2: Supplemental Restraint System - Wiring Diagram (2 Of 8)

Courtesy of FORD MOTOR CO.

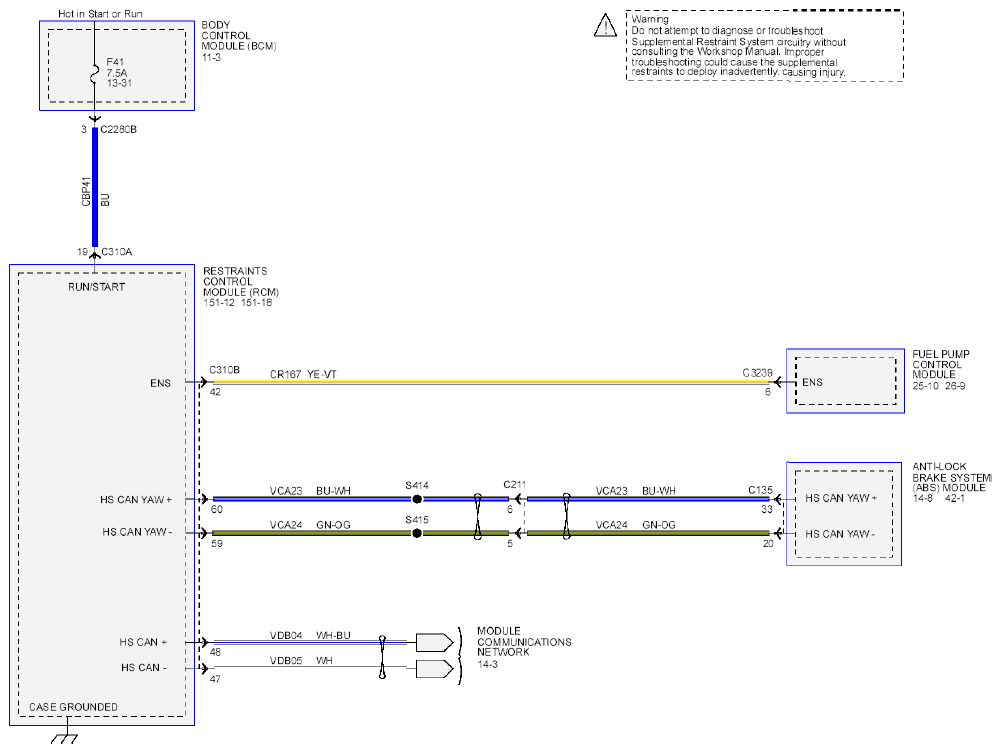

Fig 3: Supplemental Restraint System - Wiring Diagram (3 Of 8)

Courtesy of FORD MOTOR CO.

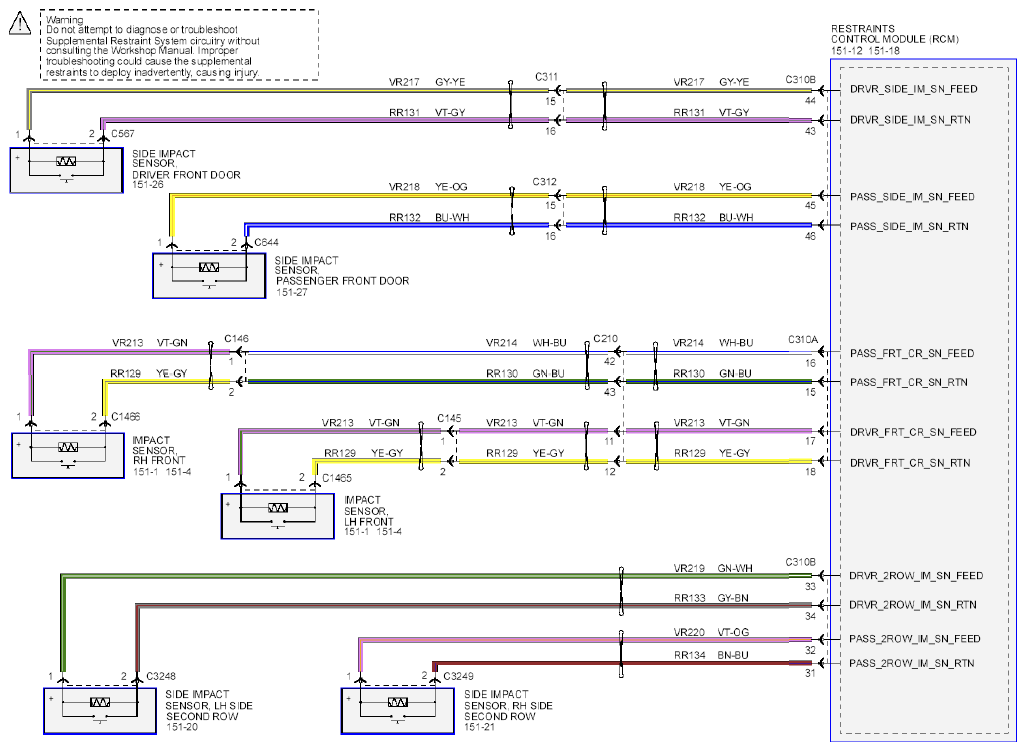

Fig 4: Supplemental Restraint System - Wiring Diagram (4 Of 8)

Courtesy of FORD MOTOR CO.

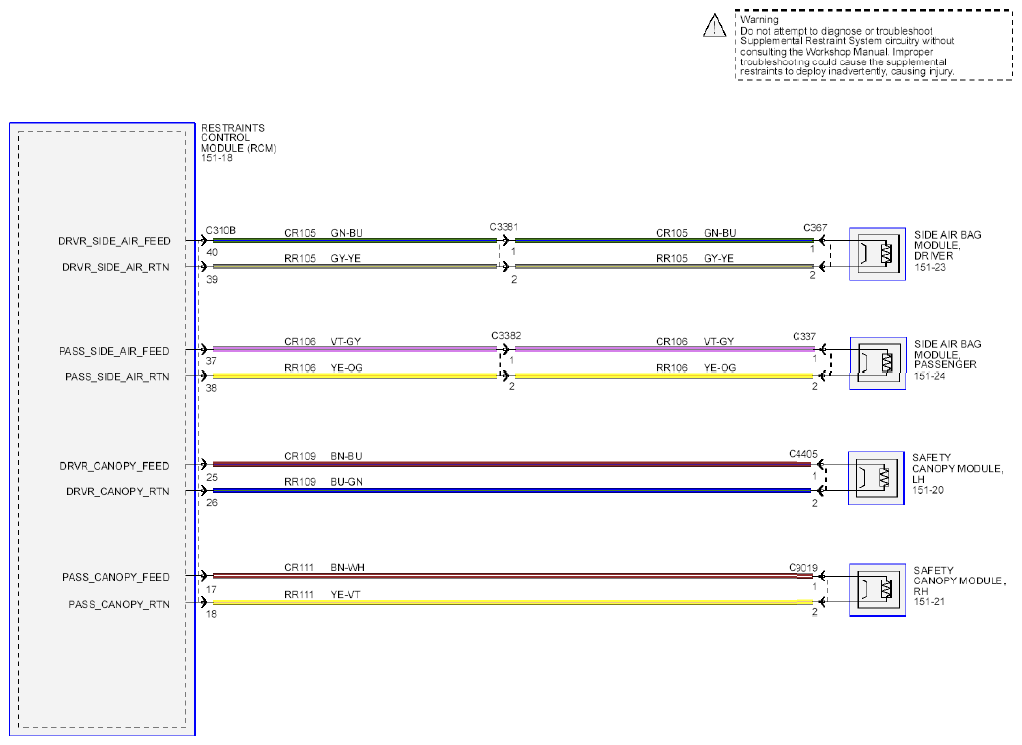

Fig 5: Supplemental Restraint System - Wiring Diagram (5 Of 8)

Courtesy of FORD MOTOR CO.

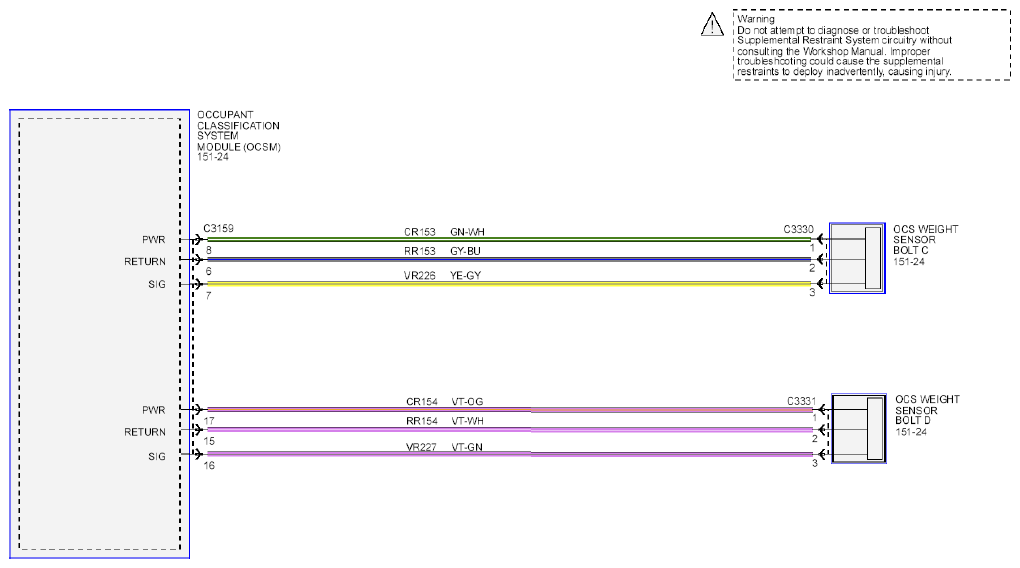

Fig 6: Supplemental Restraint System - Wiring Diagram (6 Of 8)

Courtesy of FORD MOTOR CO.

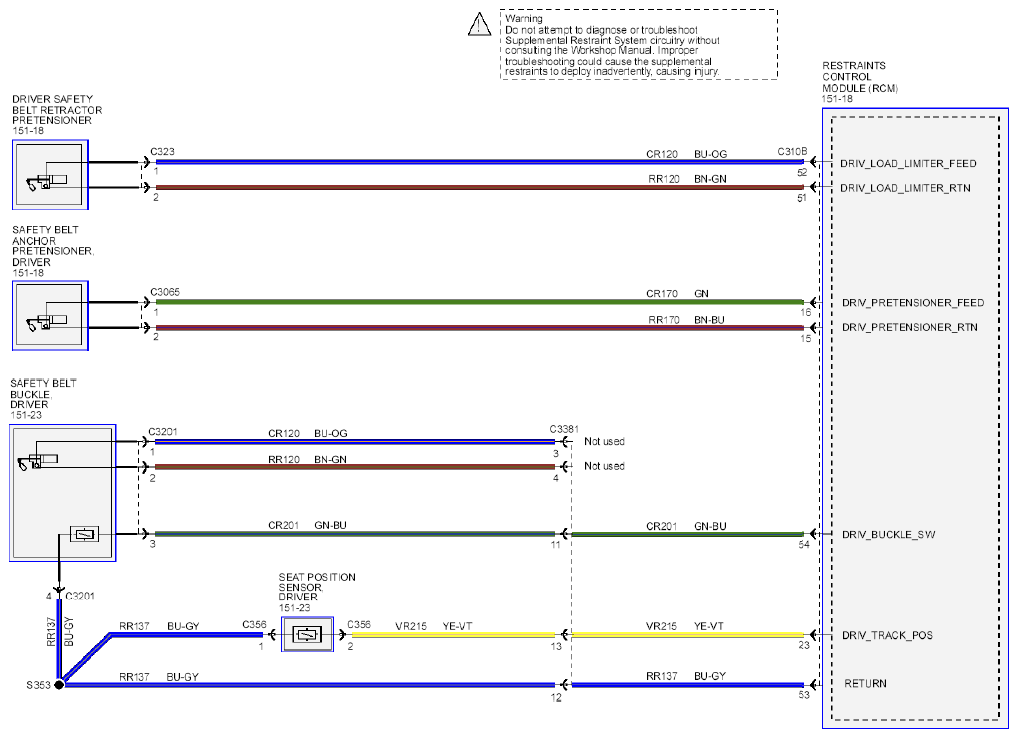

Fig 7: Supplemental Restraint System - Wiring Diagram (7 Of 8)

Courtesy of FORD MOTOR CO.

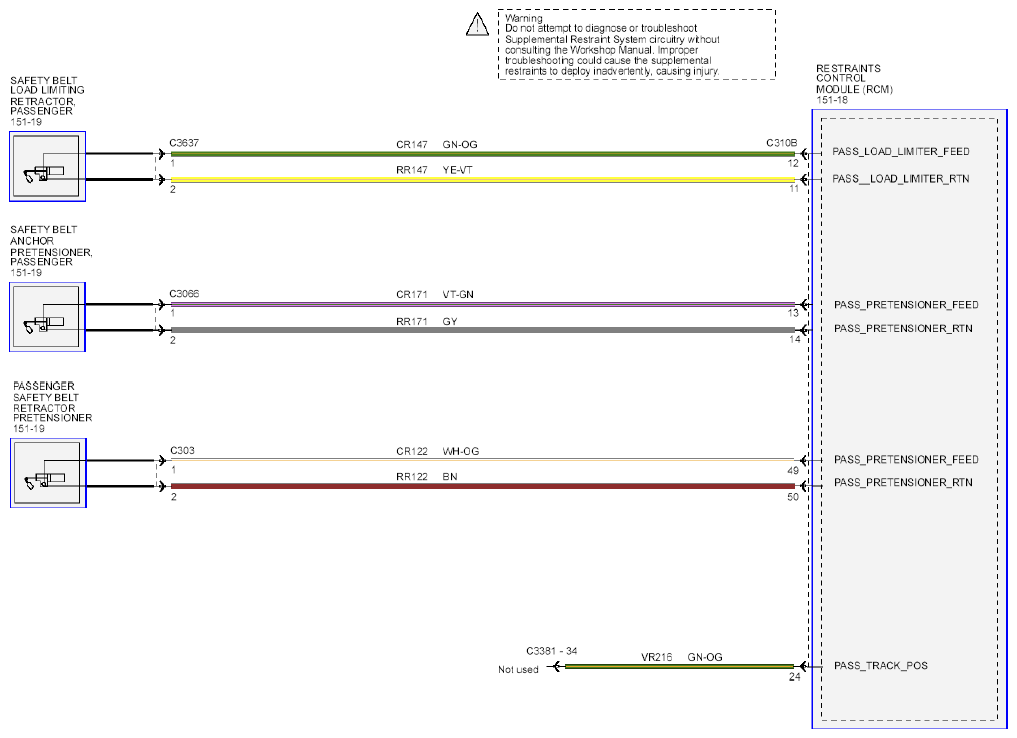

Fig 8: Supplemental Restraint System - Wiring Diagram (8 Of 8)

Courtesy of FORD MOTOR CO.
