Cluster And Panel Illumination

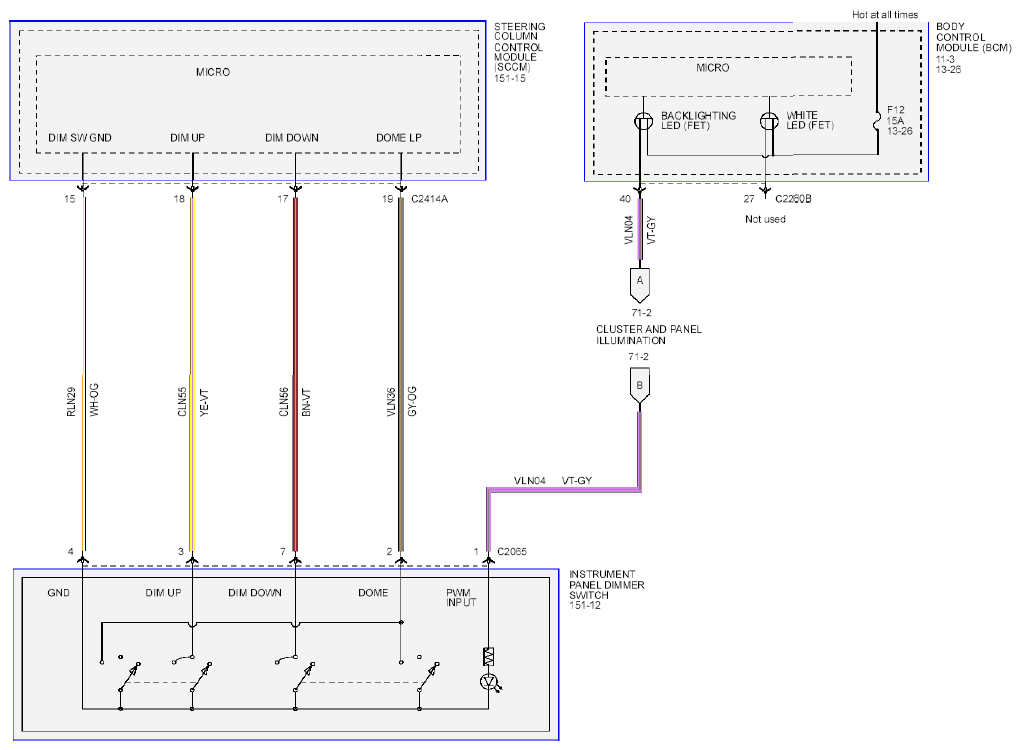

Fig 1: Cluster And Panel Illumination - Wiring Diagram (1 Of 3)
G09080142Courtesy of FORD MOTOR CO.

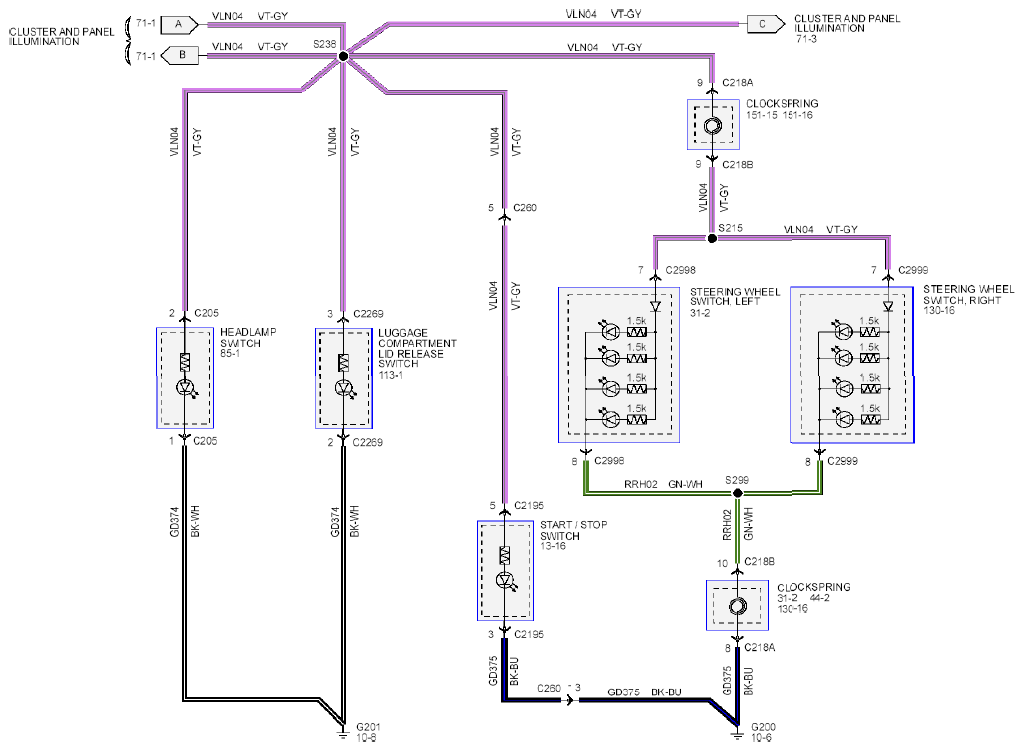

Fig 2: Cluster And Panel Illumination - Wiring Diagram (2 Of 3)
G09080143Courtesy of FORD MOTOR CO.

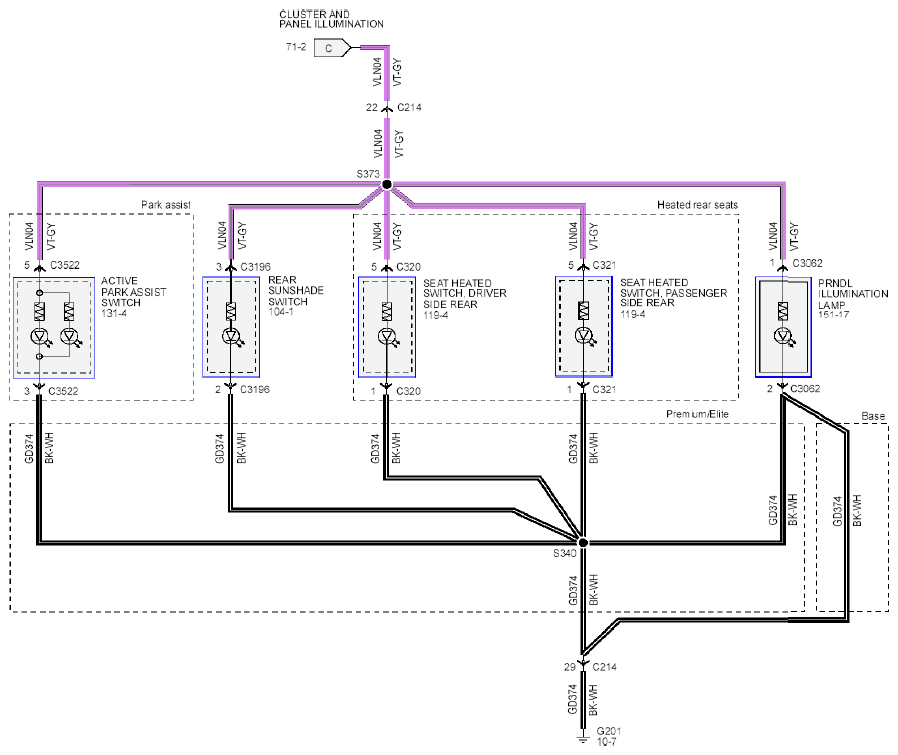

Fig 3: Cluster And Panel Illumination - Wiring Diagram (3 Of 3)
G09080144Courtesy of FORD MOTOR CO.
