Air Dryer: Service and Repair

Air Suspension Compressor Drier









Removal and Installation

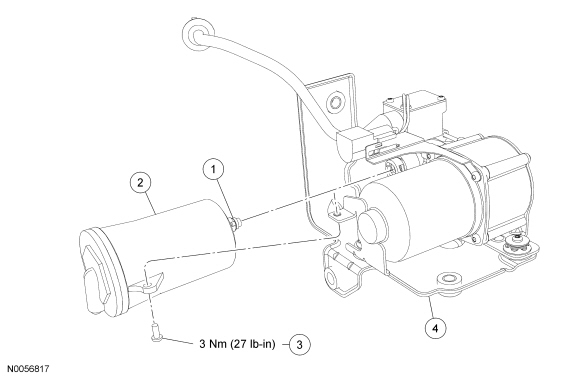

1. Remove the air compressor. For additional information, refer to Air Suspension Compressor .

2. Remove the compressor drier screw.
- To install, tighten to 3 Nm (27 lb-in).


3. NOTE: Make sure that the drier O-ring does not remain inside of the compressor assembly.

Rotate the compressor drier 90 degrees counterclockwise to unlock, then remove the air compressor drier.


4. NOTE: Inspect the compressor drier O-ring for damage and install a new O-ring as necessary.

NOTE: When installing the air lines, make sure the white air line is fully inserted into the fitting for correct installation.

To install, reverse the removal procedure.
