Lincoln
>>
2012
>>
Navigator 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Seat Belt Buckle Switch
>>
Diagrams
>>

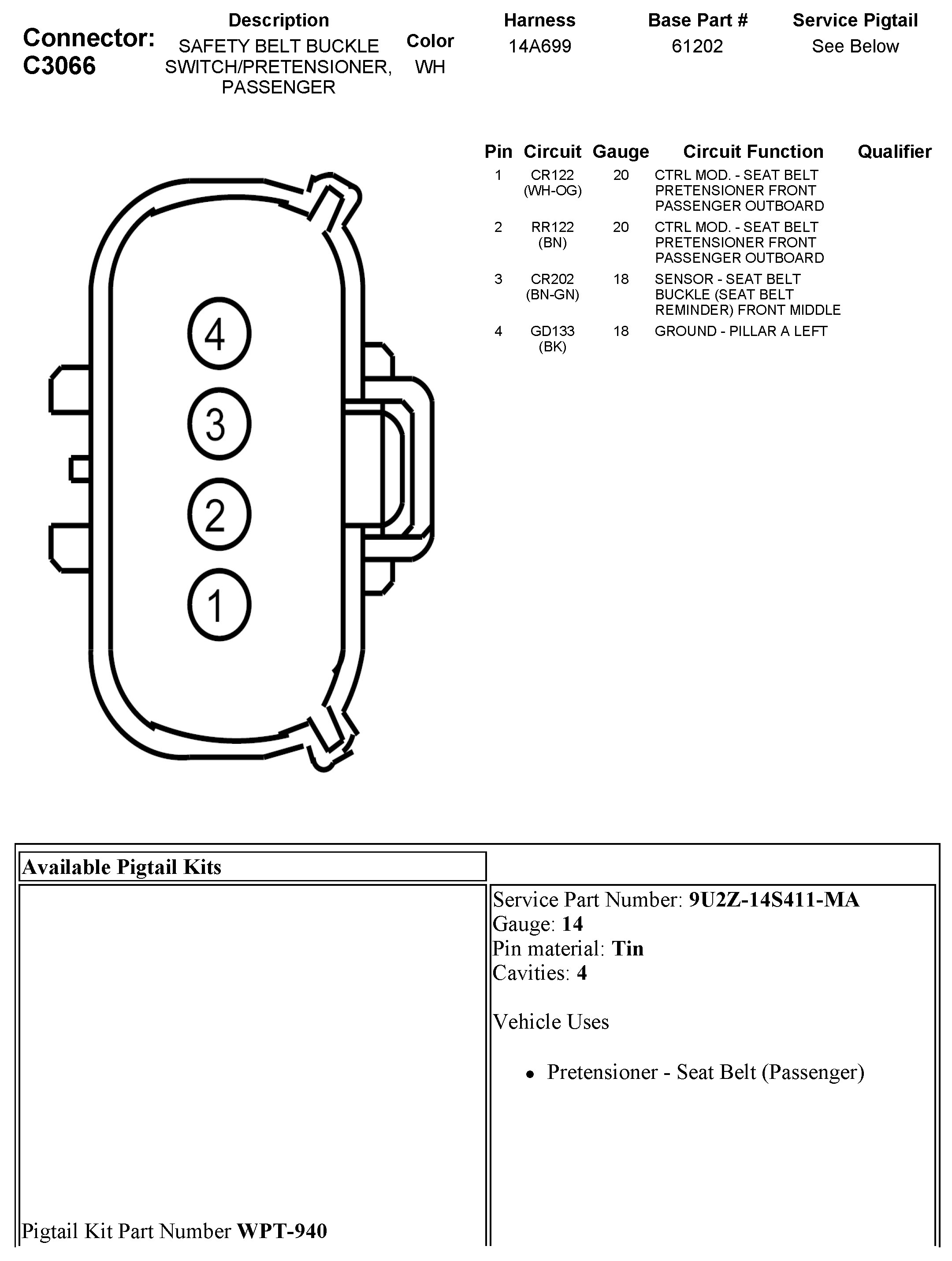

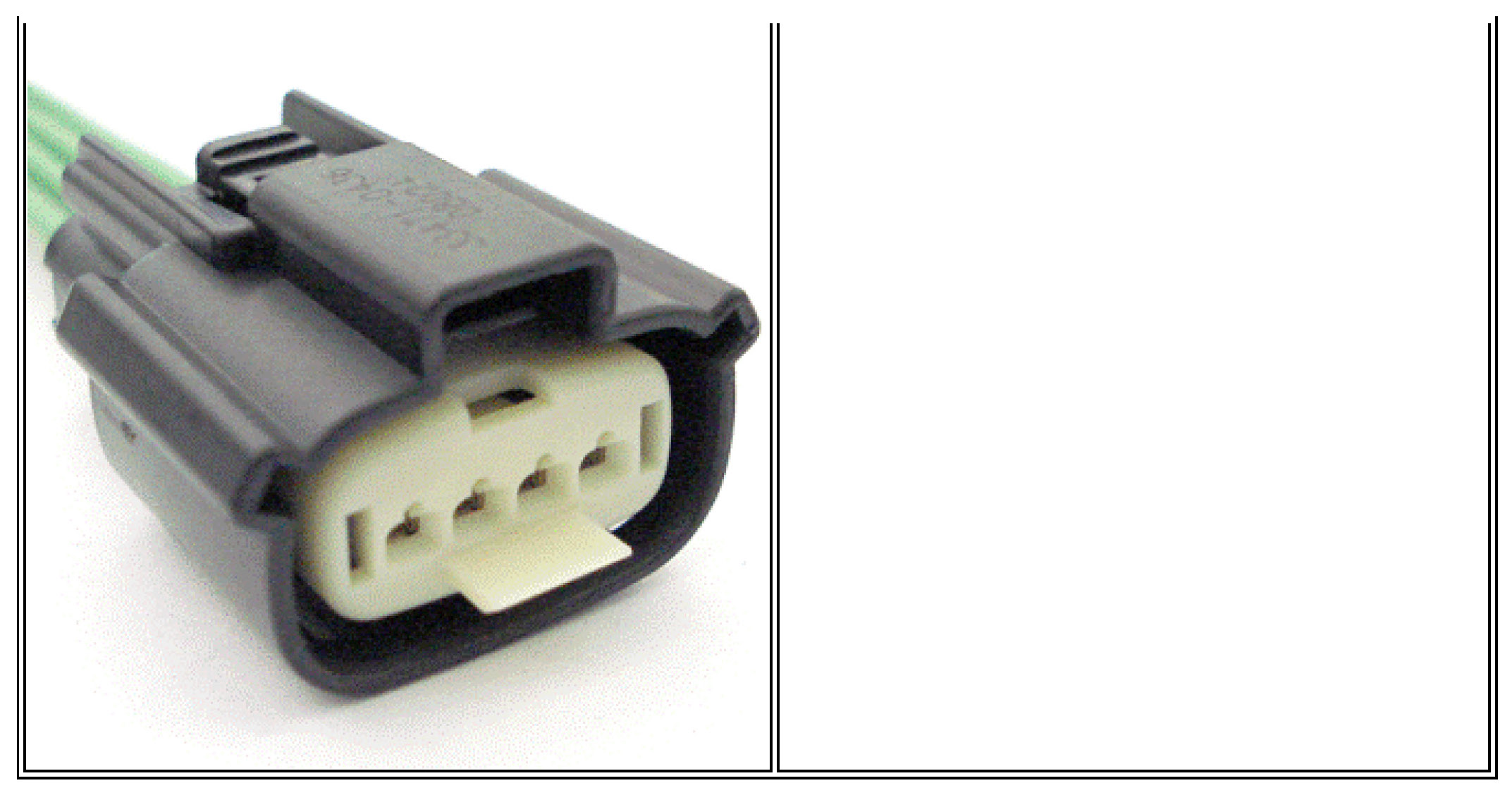

C3066 Safety Belt Buckle Switch/Pretensioner, Passenger
C3066 Safety Belt Buckle Switch/Pretensioner, Passenger
