Home >> Lincoln >> 2012 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Diagrams >> C3315 Passenger Side Impact Sensor, C-Pillar

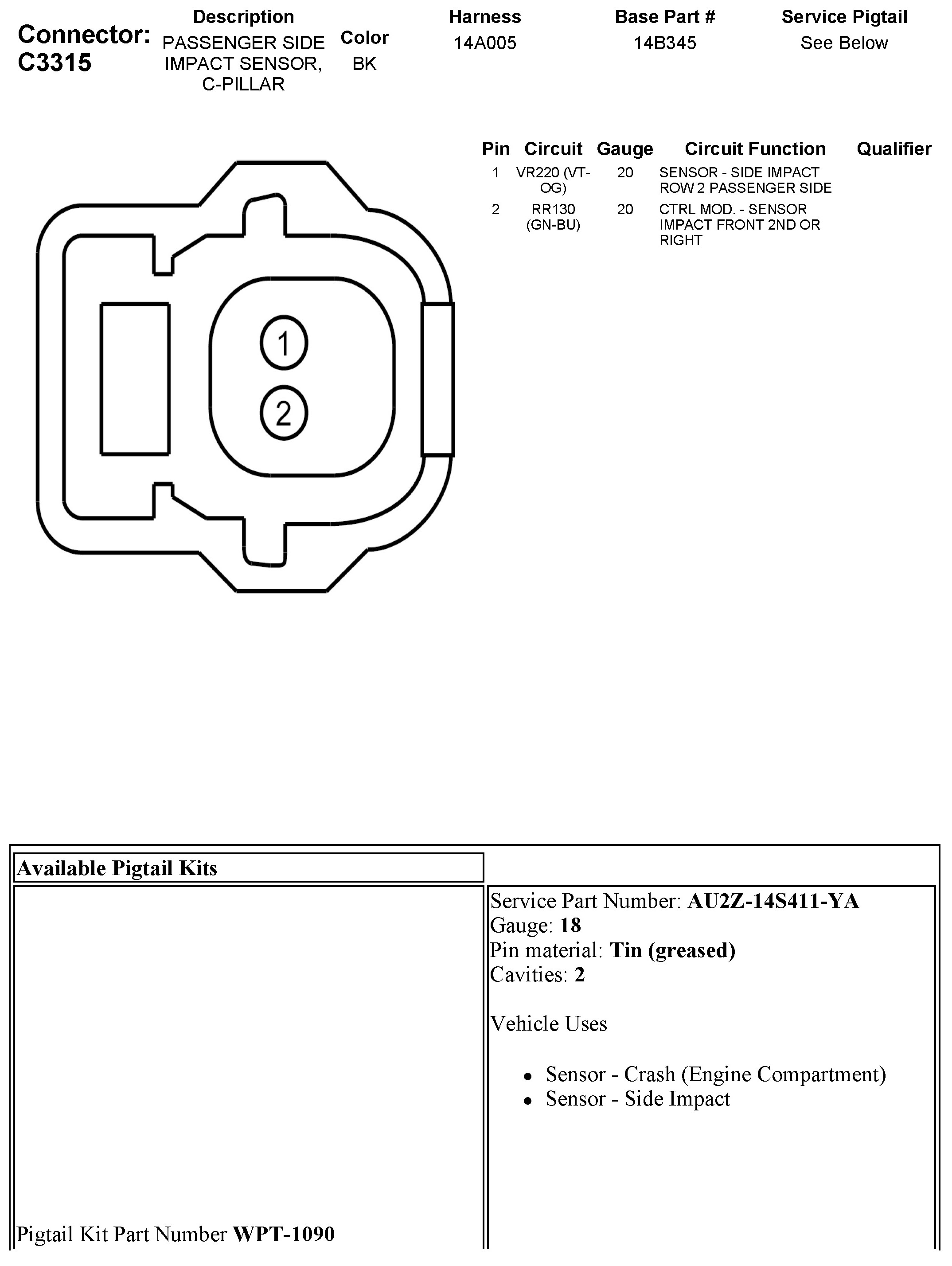

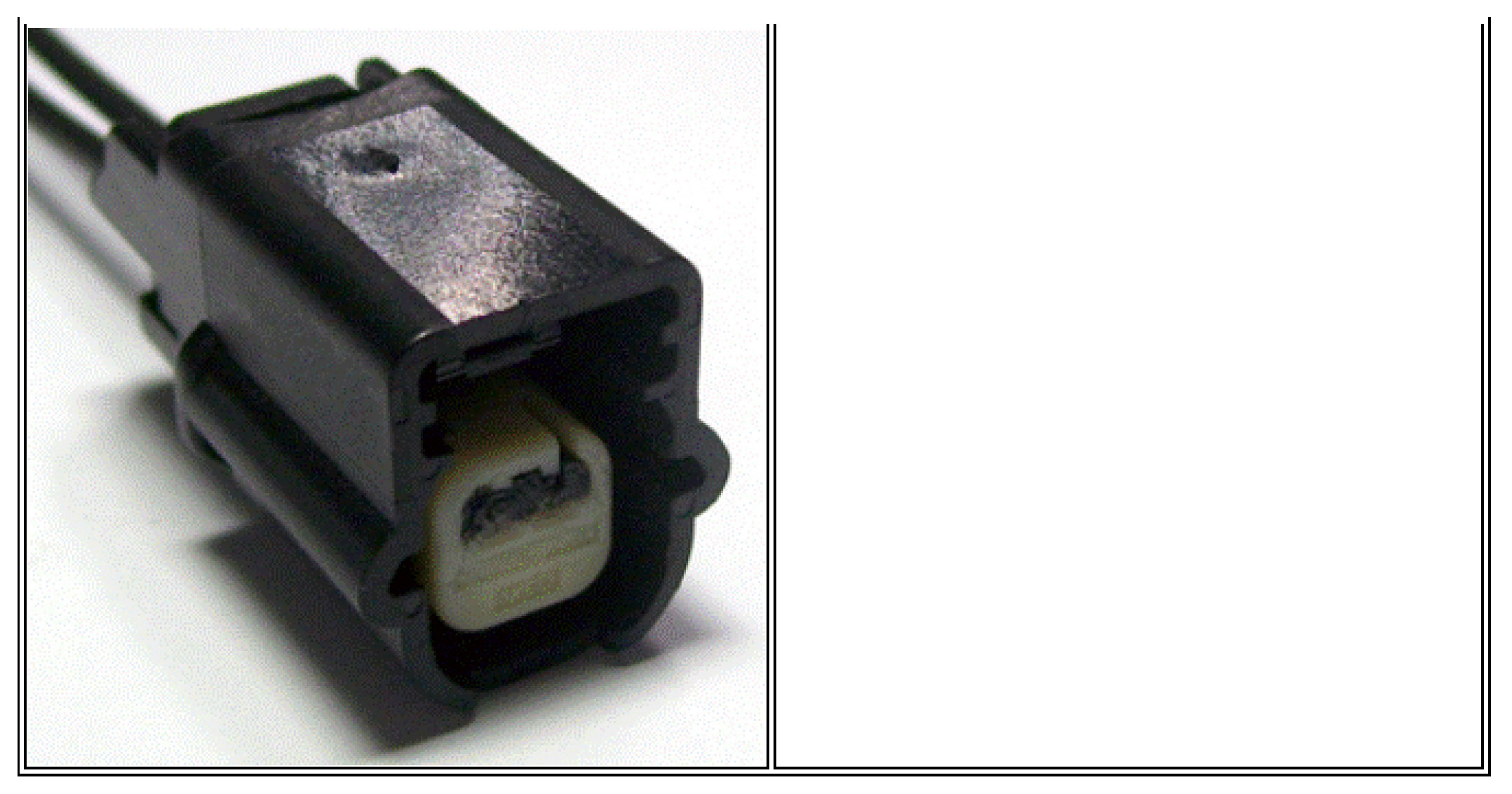

C3315 Passenger Side Impact Sensor, C-Pillar
