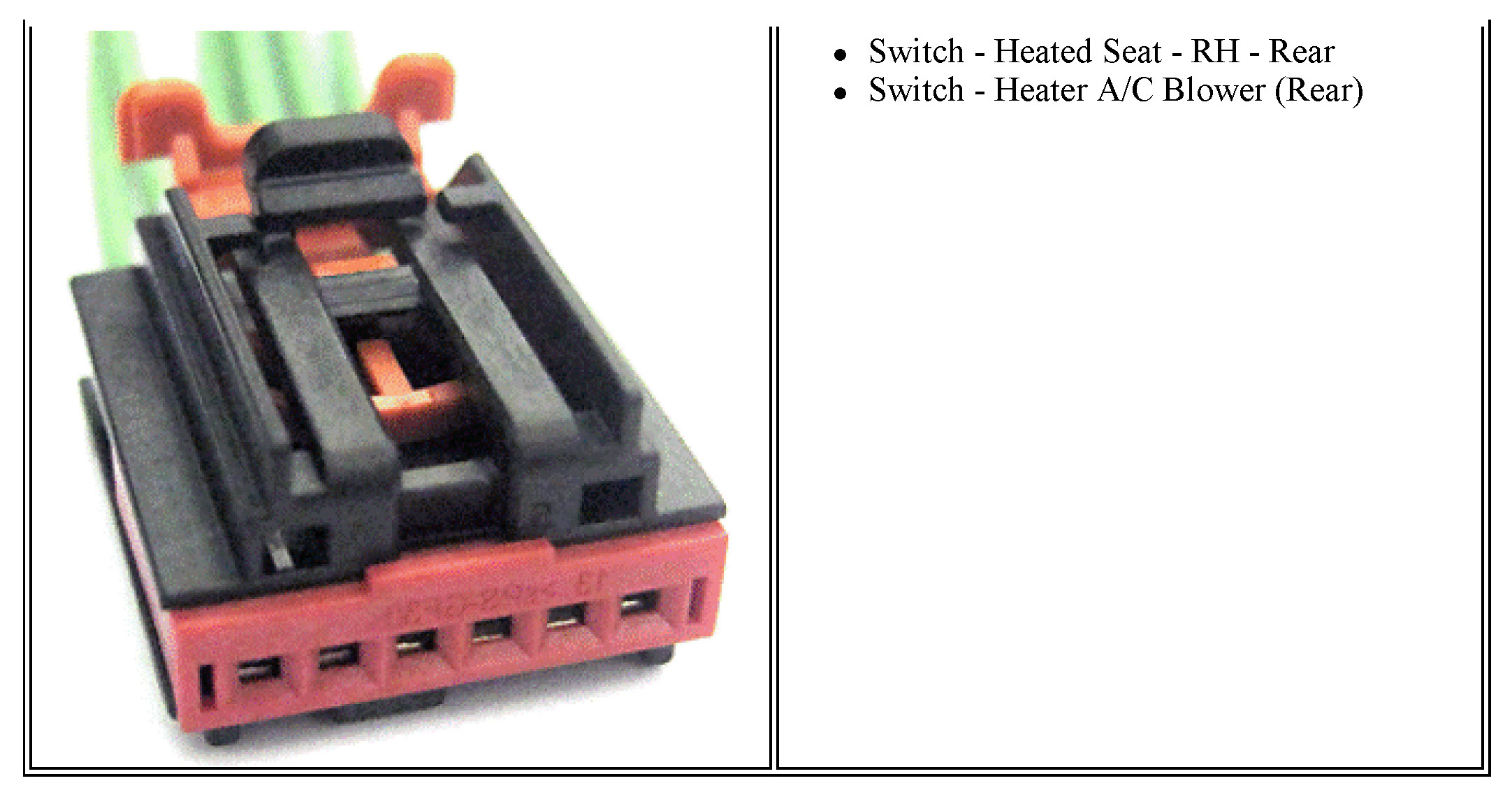

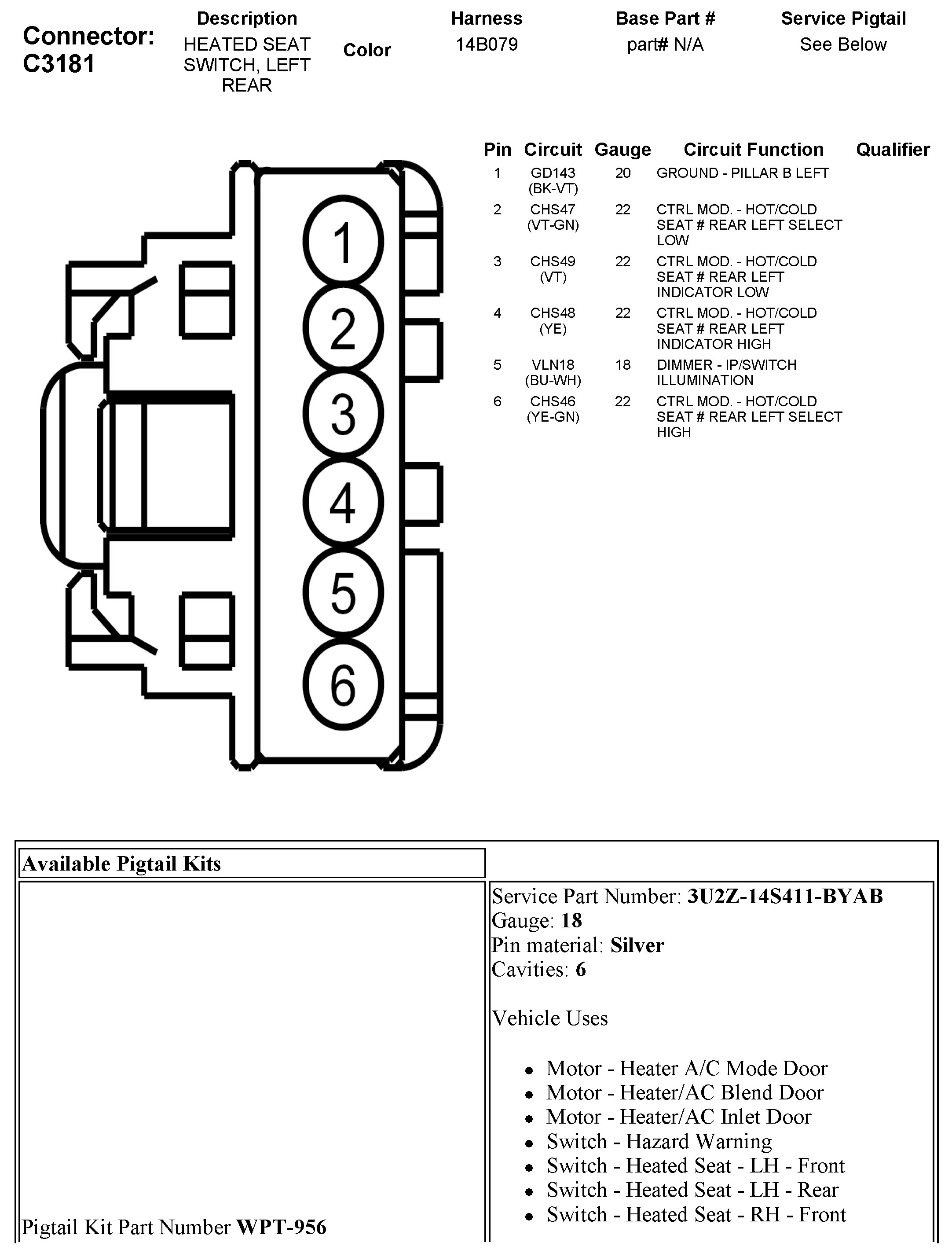

Home >> Lincoln >> 2012 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Seat Temperature Switch >> Diagrams >> C3181 Heated Seat Switch, Left Rear
