Positive Crankcase Ventilation Valve: Service and Repair

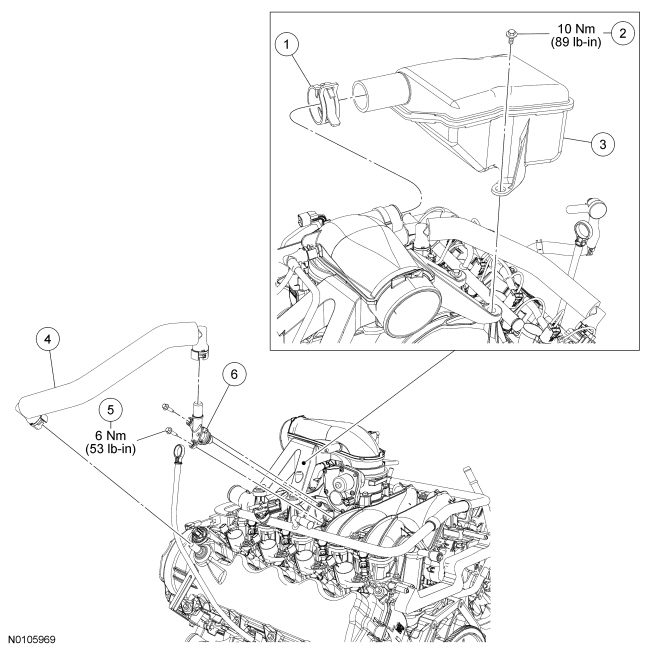

Positive Crankcase Ventilation (PCV) System Components









Removal

1. Release the clamp and remove the bolt and the air intake resonator assembly.

2. Disconnect the quick connect couplings and remove the PCV tube.

3. Remove the 2 bolts and the PCV fitting.

Installation

1. Install the PCV fitting and the 2 bolts.
- Tighten to 6 Nm (53 lb-in).


2. Position the PCV tube and connect the quick connect couplings.

3. Position the air intake resonator assembly, install the bolt and the clamp.
- Tighten to 10 Nm (89 lb-in).
