Door Switch: Service and Repair

Door Ajar Switch

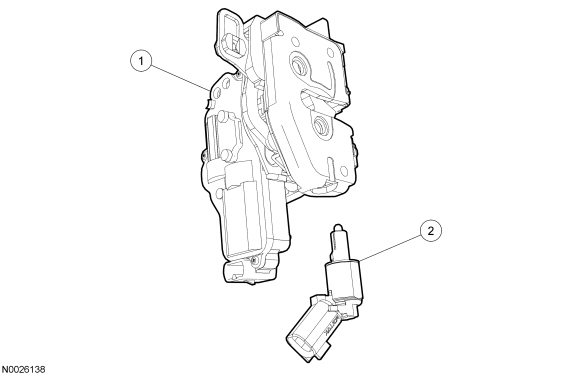

NOTE: LH front door latch shown, others similar.









Removal and Installation

1. Remove the door latch. For additional information, refer to Front Door Latch or Rear Door Latch .

2. Release the locking tab and remove the door ajar switch.

3. To install, reverse the removal procedure.
