Home >> Lincoln >> 2012 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 85 (Headlamps/Autolamps)

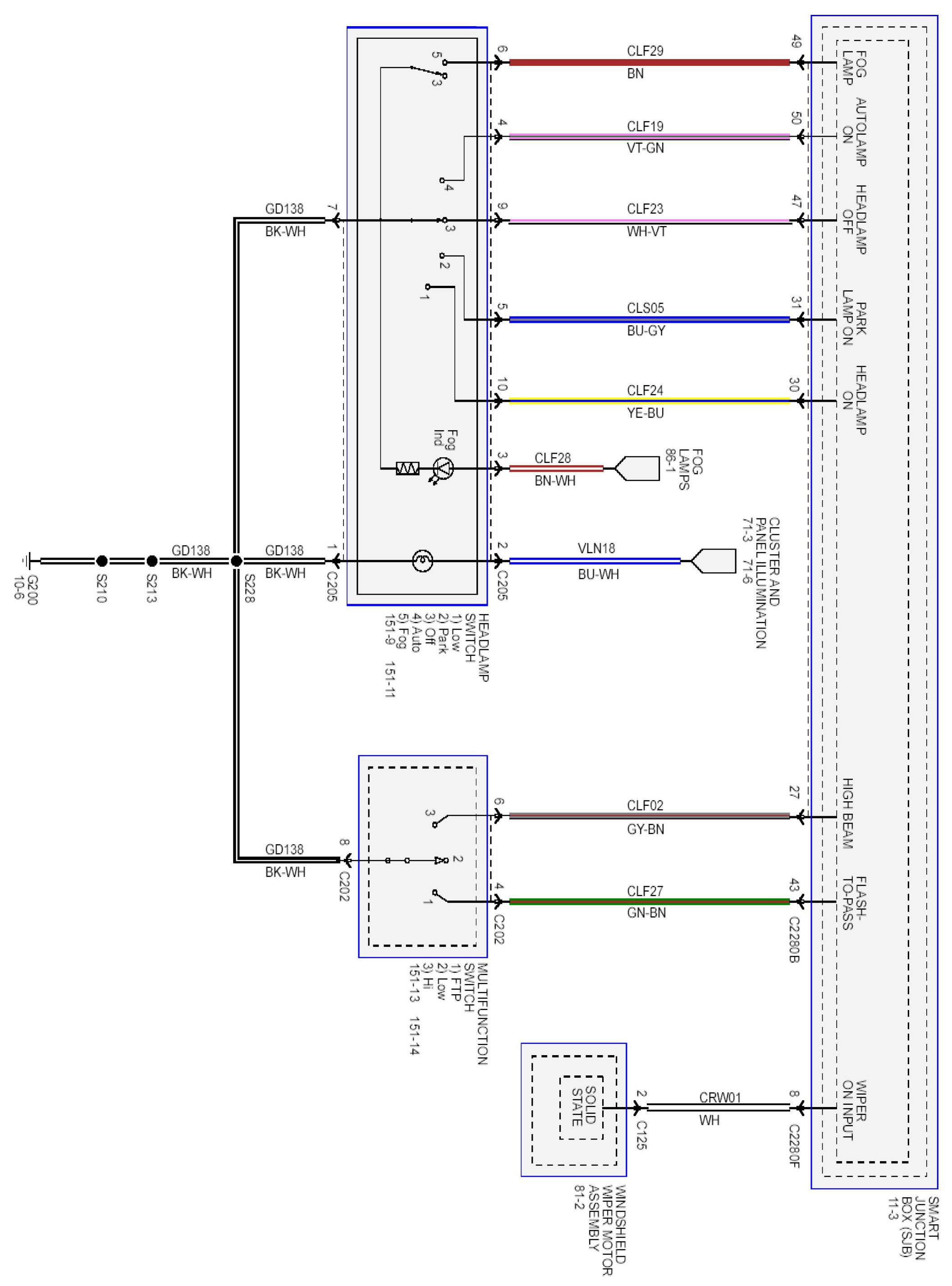

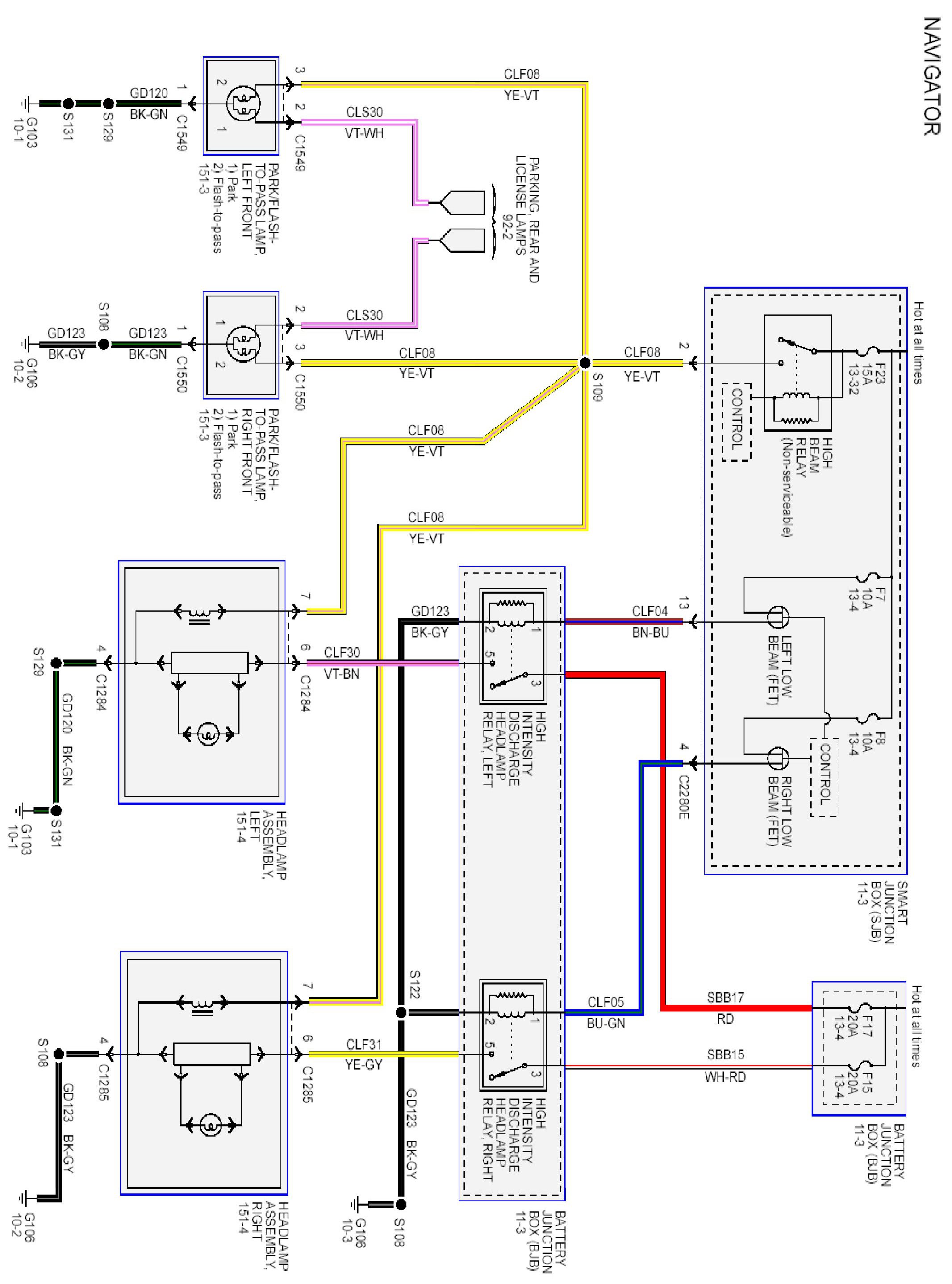

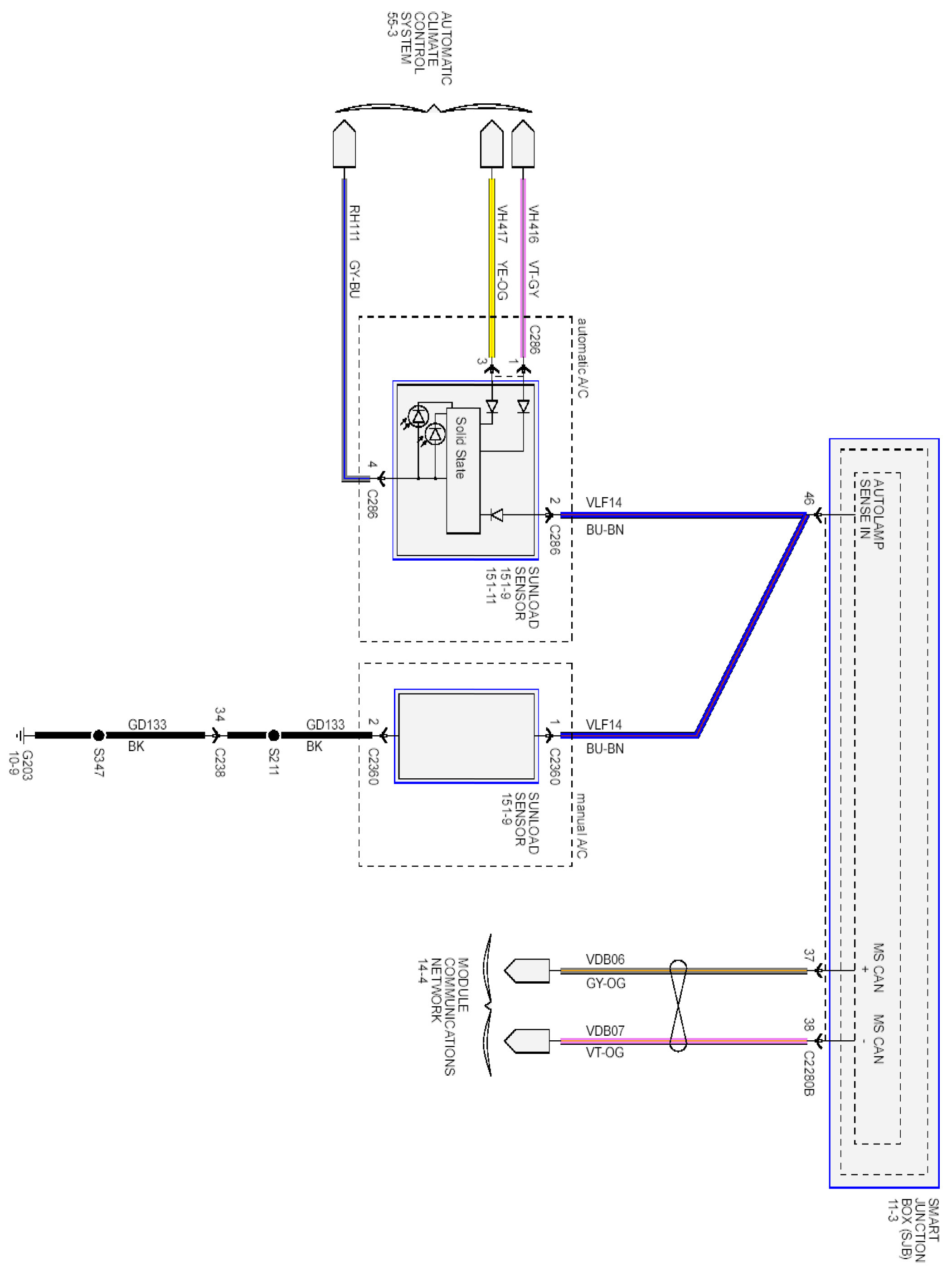

Diagram Set 85 (Headlamps/Autolamps)
