Home >> Lincoln >> 2012 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 71 (Cluster and Panel Illumination)

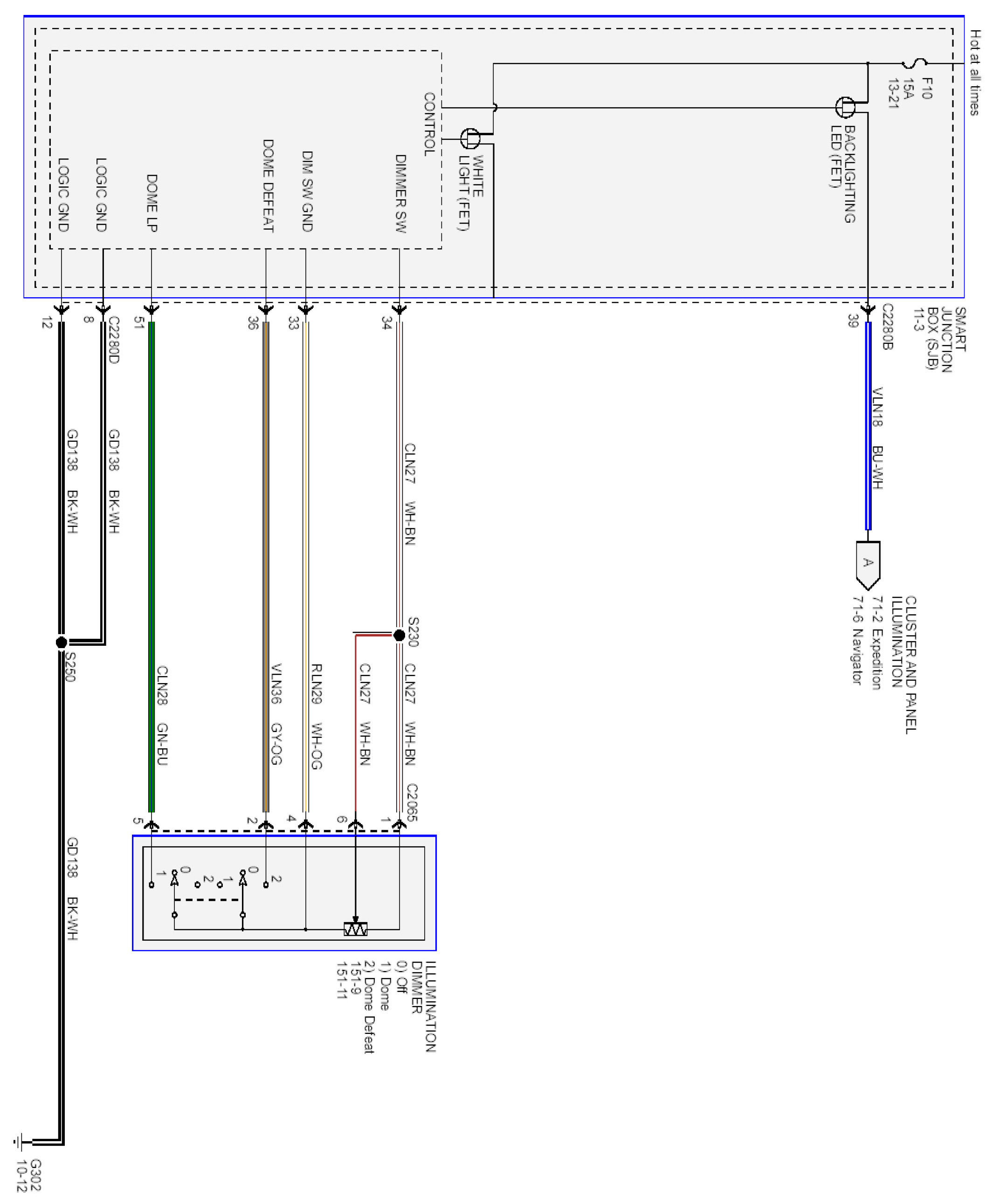

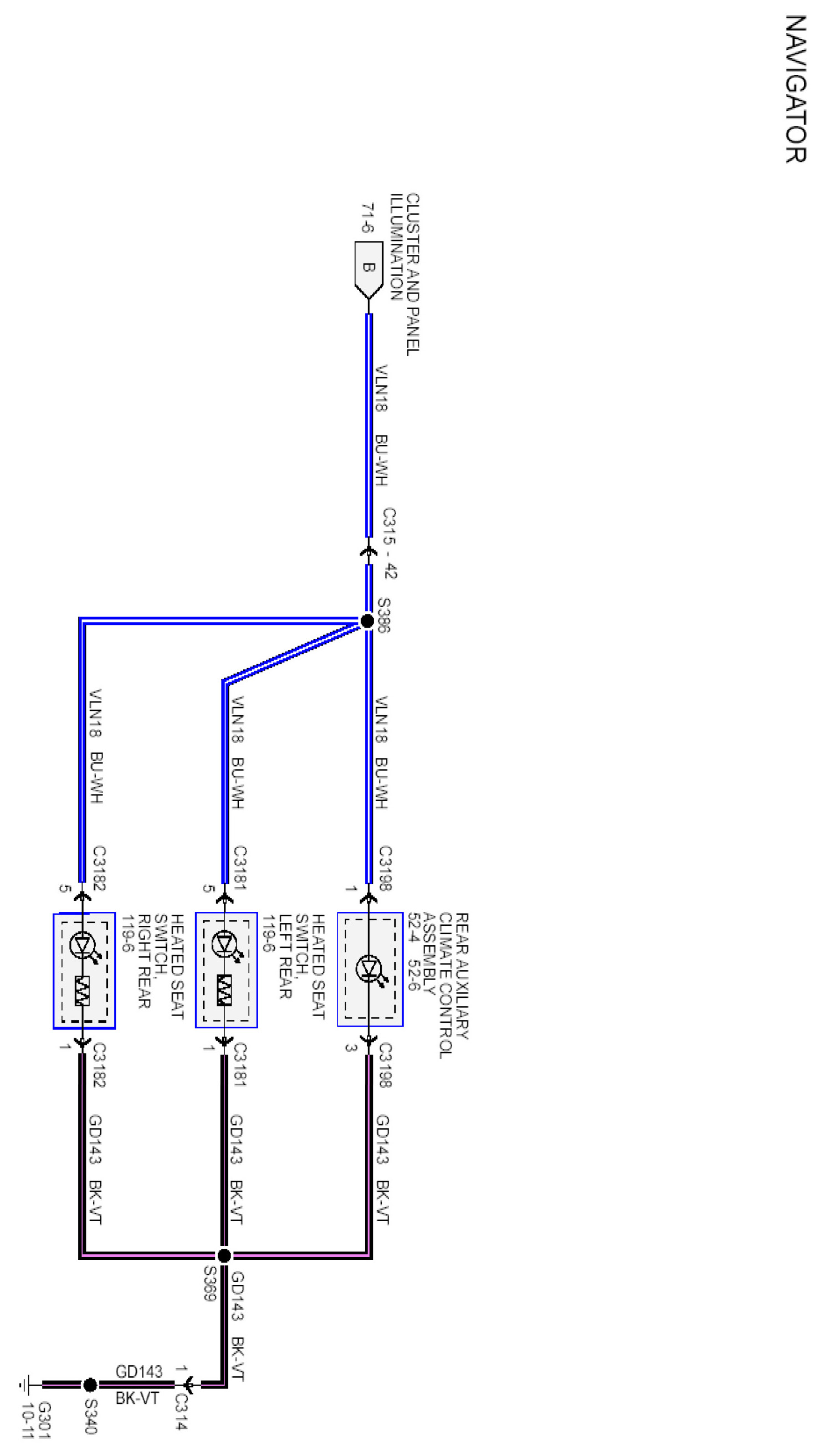

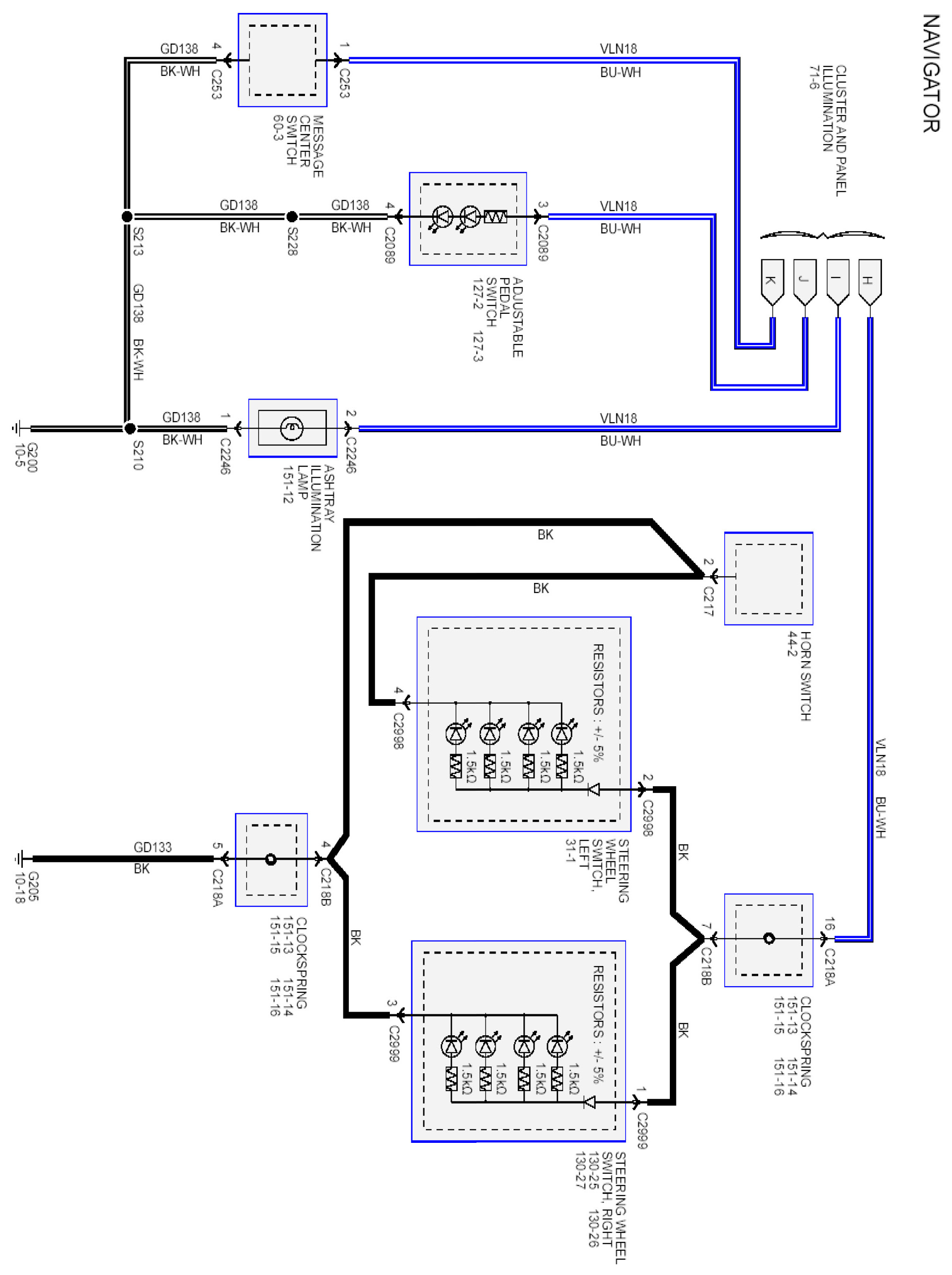

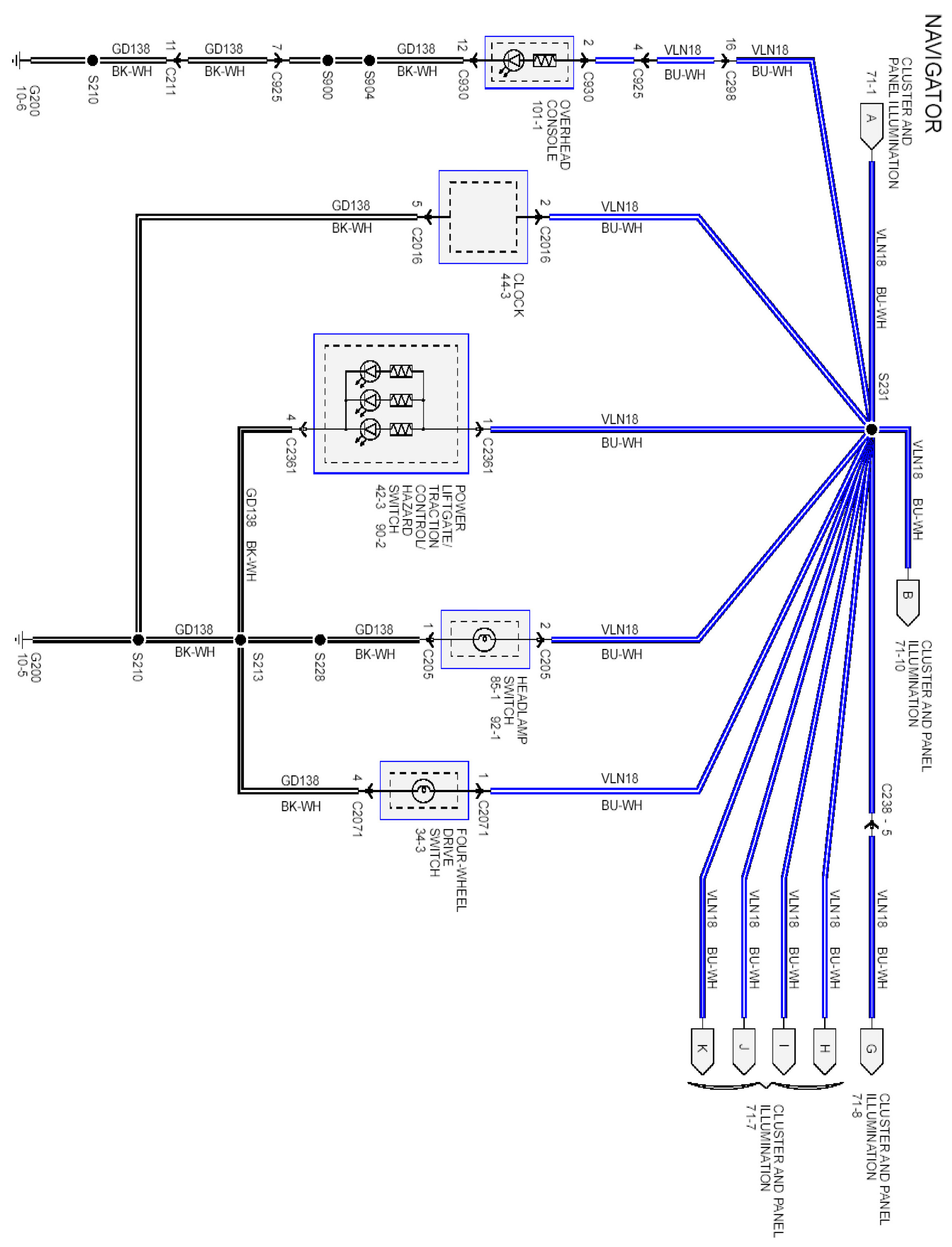

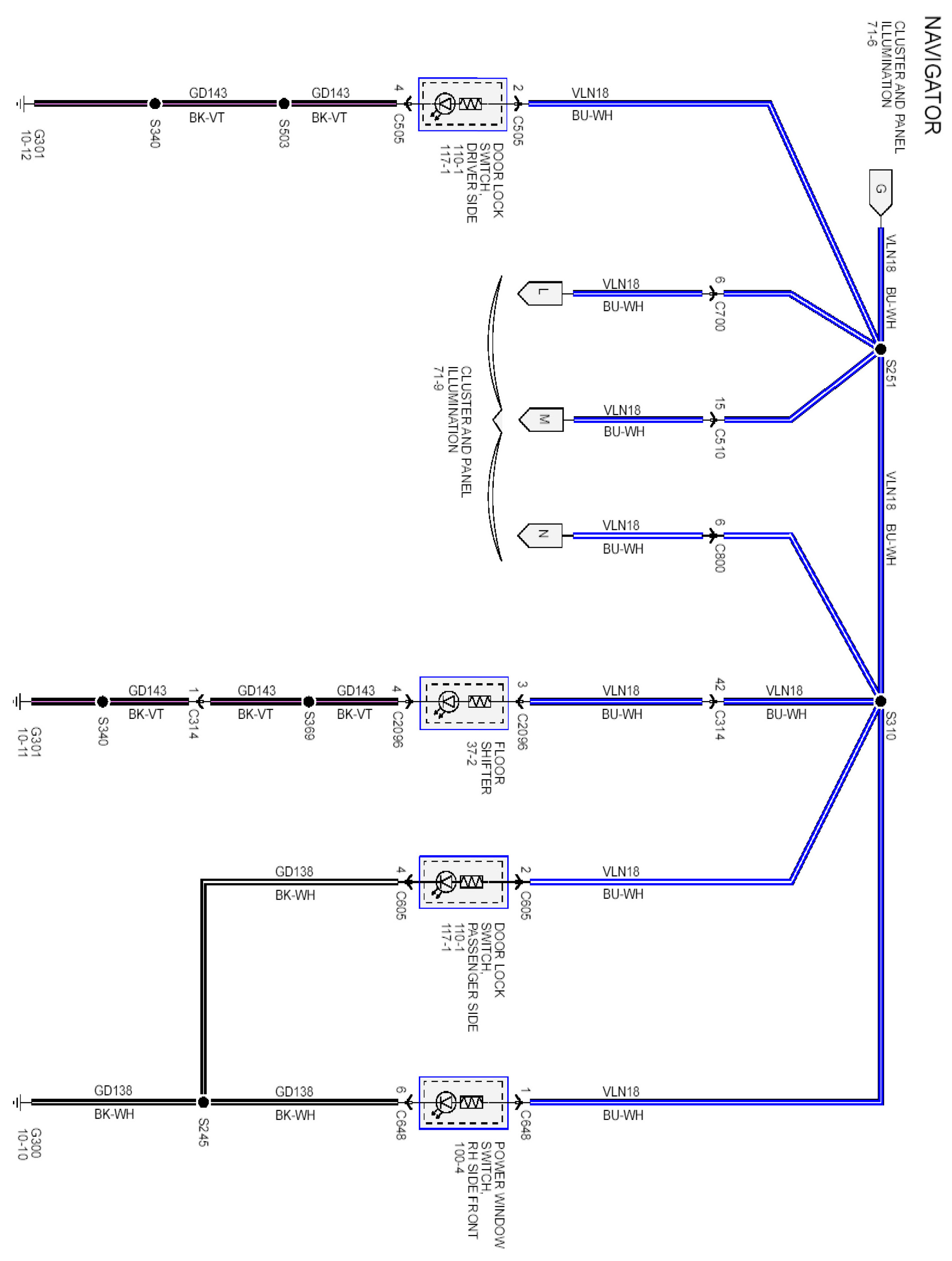

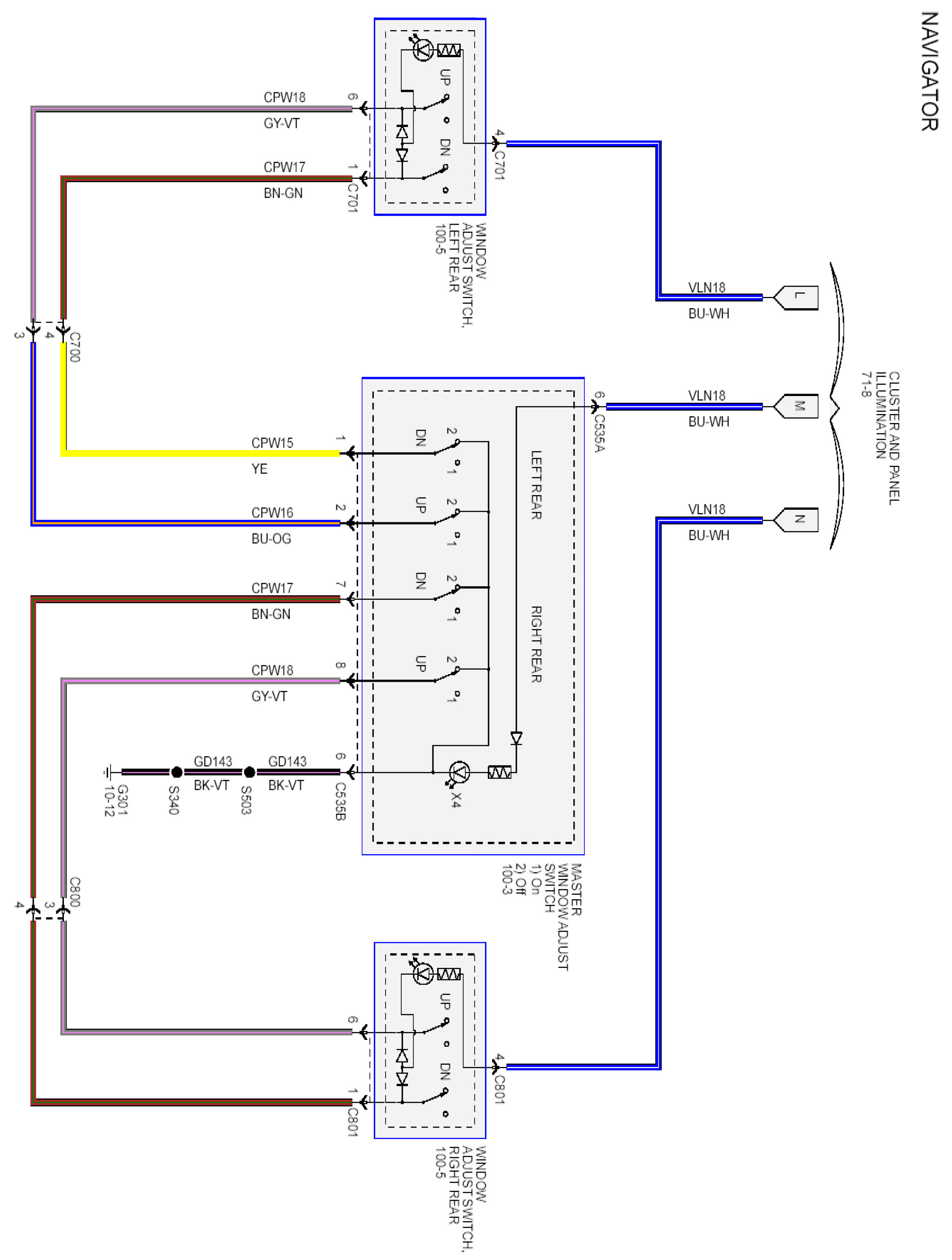

Diagram Set 71 (Cluster and Panel Illumination)
