Pinpoint Test E: Poor Quality/Distorted/No Sound From One Or More Speakers (Not All Speakers)
Information and Entertainment System
Pinpoint Test E: Poor Quality/Distorted/No Sound From One Or More Speakers (Not All Speakers) - Navigator
Refer to Wiring Diagram Set 130, Audio System/Navigation for schematic and connector information Electrical Diagrams.
Normal Operation
The Audio Front Control Module (ACM) directs the front speaker and subwoofer speaker audio signals directly to the audio Digital Signal Processing (DSP) module in the form of an AC voltage. The audio DSP (Digital Signal Processing) module boosts the audio signals and sends them to the speakers. The audio DSP (Digital Signal Processing) module provides internal circuit protection for shorts to ground or shorts to voltage.
The speaker audio signals from the ACM (Audio Front Control Module) route to the audio RCU (Rear Control Unit) module and the audio DSP (Digital Signal Processing) module. The audio DSP (Digital Signal Processing) module sends the audio signals to the speakers. In dual-play mode, the audio DSP (Digital Signal Processing) module mutes the rear speaker output. Make sure the audio system is in single-play mode before diagnosing a rear speaker concern.

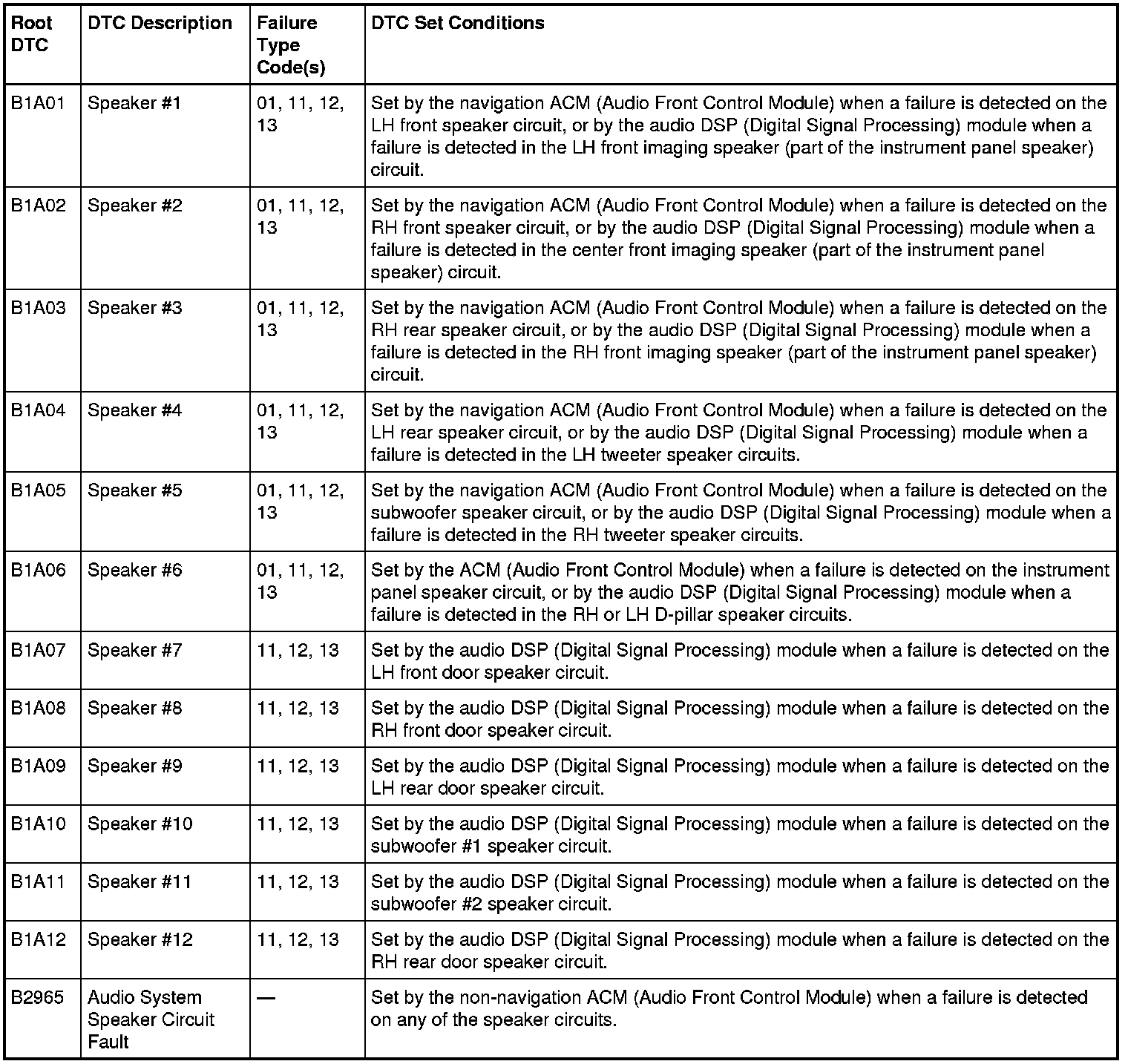

A short to ground or short to voltage in the circuitry to one of the speakers may cause multiple speakers to lose sound due to the built-in overload protection feature of the audio DSP (Digital Signal Processing) module. In this case, a speaker fault DTC sets, and this pinpoint test should be followed to isolate the damaged circuit.
For vehicles with navigation, it is also important to note that if the navigation voice guidance setting is set too low, it may appear that the front speakers intermittently produce no sound. Make sure the voice guidance setting is set high enough to hear the voice guidance commands before addressing a concern with the front speakers.
The speaker walk test can be used to isolate a concern with a particular speaker. This can reduce the diagnostic steps necessary to isolate the concern. To carry out the speaker walk test, refer to Audio Control Module (ACM) Self-Diagnostic Mode Service and Repair.
This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Speaker
- Audio DSP (Digital Signal Processing) module
- ACM (Audio Front Control Module)
PINPOINT TEST E : POOR QUALITY/DISTORTED/NO SOUND FROM ONE OR MORE SPEAKERS (NOT ALL SPEAKERS) - NAVIGATOR
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
NOTE: Failure to disconnect the battery when instructed will result in false resistance readings.
E1 CHECK THE AUDIO SIGNALS TO THE SUSPECT SPEAKER
NOTE: The D-pillar speakers are wired in series, so the signal voltage must be checked with both speakers disconnected and the measurements made between the LH D-pillar speaker C4337-1 and the RH D-pillar speaker C4338-2.
- Ignition OFF.
- Disconnect: Suspect Speaker.
- Operate the audio system in radio tuner (AM/FM), single-play mode.
- Measure the AC voltage between the suspect speaker pins, harness side as follows:
Suspect Speaker Positive Meter Lead Negative Meter Lead LH instrument panel C2359-1 VME28 (BN/VT) C2359-4 RME28 (BN/GN) Center instrument panel C2359-2 VME15 (GN/BU) C2359-5 RME15 (GY/BU) RH instrument panel C2359-3 VME29 (GN/WH) C2359-6 RME29 (BU/WH) D-pillar (LH or RH) C4337-1 VME30 (GN/BN) C4338-2 RME30 (VT/BN) LF door C570-1 VME07 (WH) C570-2 RME07 (WH/BN) RF door C647-1 VME10 (WH/VT) C647-2 RME10 (WH/OG) LF tweeter C513-1 VME08 (GN/OG) C513-2 RME08 (GY/OG) RF tweeter C613-1 VME11 (VT/OG) C613-2 RME11 (YE/OG) LR door C702-1 VME12 (BN/WH) C702-2 RME12 (BN/BU) RR door C802-1 VME12 (BN/WH) C802-2 RME12 (BN/BU) Subwoofer #1 C4212-1 VME01 (GN/VT) C4212-2 RME01 (GY) Subwoofer #2 C4212-3 VME02 (VT) C4212-4 RME02 (YE)
Is a fluctuating AC voltage present?
Yes
INSTALL a new speaker for the suspect speaker. REFER to Speaker - Door , Speaker - Instrument Panel , or Speaker - Subwoofer . CLEAR any DTCs present. TEST the system for normal operation.
No
GO to E2.
E2 CHECK THE AUDIO SIGNALS TO THE AUDIO DSP (Digital Signal Processing) MODULE
- Ignition OFF.
- Disconnect: Audio DSP (Digital Signal Processing) Module C2364C.
- Operate the audio system in radio tuner (AM/FM), single-play mode.
- Measure the AC voltage between the audio DSP (Digital Signal Processing) module pins, harness side as follows:
Suspect Speaker Positive Meter Lead Negative Meter Lead LF door or LF tweeter (all vehicles), instrument panel (without navigation) C2364C-7 VME07 (WH) C2364C-17 RME07 (WH/BN) RF door or RF tweeter (all vehicles), instrument panel (without navigation) C2364C-8 VME10 (WH/VT) C2364C-18 RME10 (WH/OG) Instrument panel or D-pillar (with navigation) C2364C-9 VME51 (BN/BU) C2364C-19 RME51 (WH/BU) Subwoofer (all vehicles) C2364C-15 VME22 (VT/GN) C2364C-5 RME22 (GN/WH) LR door (all vehicles) or D-pillar (without navigation) C2364C-4 VME09 (WH/GN) C2364C-14 RME09 (BN/YE) RR door (all vehicles) or D-pillar (without navigation) C2364C-10 VME12 (BN/WH) C2364C-20 RME12 (BN/BU)
Is a fluctuating AC voltage present?
Yes
GO to E3.
No
If no fluctuating AC voltage is present on circuit VME09 (WH/GN), RME09 (BN/YE), VME12 (BN/WH) or RME12 (BN/BU), GO to E7.
Otherwise, GO to E10.
E3 CHECK THE AUDIO DSP (Digital Signal Processing) MODULE VOLTAGE
- Ignition OFF.
- Disconnect: Audio DSP (Digital Signal Processing) Module C2364A.
- Measure the voltage between the audio DSP (Digital Signal Processing) module, harness side and ground as follows:
Positive Meter Lead Negative Meter Lead Circuit C2364A-9 Ground SBP38 (BN/RD) C2364A-10 Ground SBP38 (BN/RD) C2364A-11 Ground SBP40 (VT/RD) C2364A-12 Ground SBP40 (VT/RD)
Are the voltages greater than 10 volts?
Yes
GO to E4.
No
VERIFY the Smart Junction Box (SJB) fuse 38 (20A) or fuse 40 (20A) is OK. If OK, REPAIR the circuit in question. TEST the system for normal operation. If not OK, REFER to the Wiring Diagrams to identify the possible causes of the circuit short Electrical Diagrams.
E4 CHECK THE AUDIO DSP (Digital Signal Processing) MODULE GROUND CIRCUITS FOR CONTINUITY
- Disconnect: Negative Battery Cable.
- Measure the resistance between the audio DSP (Digital Signal Processing) module, harness side and ground as follows:
Positive Meter Lead Negative Meter Lead Circuit C2364A-21 Ground GD114 (BK/BU) C2364A-22 Ground GD114 (BK/BU) C2364A-23 Ground GD114 (BK/BU) C2364A-24 Ground GD114 (BK/BU)
Are the resistances less than 5 ohms?
Yes
GO to E5.
No
REPAIR the circuit in question. TEST the system for normal operation.
E5 CHECK THE CIRCUITS TO THE SUSPECT SPEAKER FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Disconnect: Audio DSP (Digital Signal Processing) Module C2364A or C2364B.
- Ignition ON.

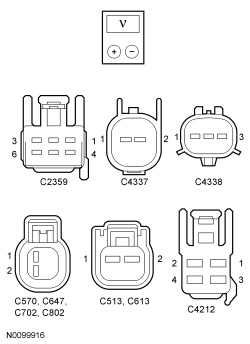

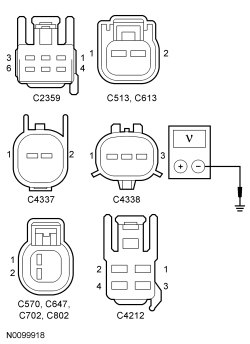

- Measure the voltage between the suspect speaker, harness side and ground as follows:
Suspect Speaker Positive Meter Lead Negative Meter Lead LH instrument panel C2359-1 VME28 (BN/VT) Ground C2359-4 RME28 (BN/GN) Ground Center instrument panel C2359-2 VME15 (GN/BU) Ground C2359-5 RME15 (GY/BU) Ground RH instrument panel C2359-3 VME29 (GN/WH) Ground C2359-6 RME29 (BU/WH) Ground LH D-pillar C4337-1 VME30 (GN/BN) Ground C4337-2 VME47 (BN/VT) Ground RH D-pillar C4338-1 VME47 (BN/VT) Ground C4338-2 RME30 (VT/BN) Ground LF door C570-1 VME07 (WH) Ground C570-2 RME07 (WH/BN) Ground RF door C647-1 VME10 (WH/VT) Ground C647-2 RME10 (WH/OG) Ground
Suspect Speaker Positive Meter Lead Negative Meter Lead LF tweeter C513-1 VME08 (GN/OG) Ground C513-2 RME08 (GY/OG) Ground RF tweeter C613-1 VME11 (VT/OG) Ground C613-2 RME11 (YE/OG) Ground LR door C702-1 VME12 (BN/WH) Ground C702-2 RME12 (BN/BU) Ground RR door C802-1 VME12 (BN/WH) Ground C802-2 RME12 (BN/BU) Ground Subwoofer #1 C4212-1 VME01 (GN) Ground C4212-2 RME01 (GY) Ground Subwoofer #2 C4212-3 VME02 (VT) Ground C4212-4 RME02 (YE) Ground
Is any voltage present?
Yes
REPAIR the circuit in question. CLEAR any DTCs present. TEST the system for normal operation.
No
GO to E6.
E6 CHECK THE CIRCUITS TO THE SUSPECT SPEAKER FOR AN OPEN OR SHORT TO GROUND
- Ignition OFF.
- NOTE: The circuit colors and numbers change between the audio DSP (Digital Signal Processing) module and the rear door speakers.
Measure the resistance between the suspect speaker, harness side and the audio DSP (Digital Signal Processing) module, harness side; and between the suspect speaker, harness side and ground as follows:

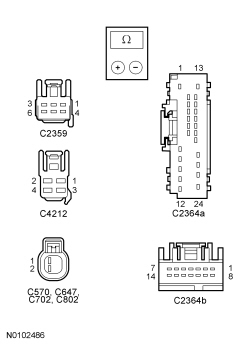

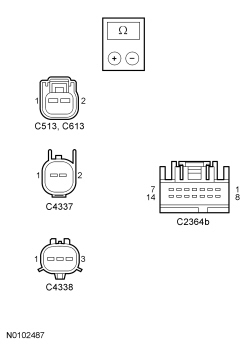

Suspect Speaker Positive Meter Lead Negative Meter Lead Circuit LH instrument panel C2359-1 C2364A-14, then ground VME28 (BN/VT) C2359-4 C2364A-2, then ground RME28 (BN/GN) Center instrument panel C2359-2 C2364B-13, then ground VME15 (GN/BU) C2359-5 C2364B-6, then ground RME15 (GY/BU) RH instrument panel C2359-3 C2364B-14, then ground VME29 (GN/WH) C2359-6 C2364B-7, then ground RME29 (BU/WH) LF door C570-1 C2364B-9, then ground VME07 (WH) C570-2 C2364B-2, then ground RME07 (WH/BN) RF door C647-1 C2364B-8, then ground VME10 (WH/VT) C647-2 C2364B-1, then ground RME10 (WH/OG)
Suspect Speaker Positive Meter Lead Negative Meter Lead Circuit LR door C702-1 C2364A-18, then ground VME12 (BN/WH)/ VME39 (GN/BN) C702-2 C2364A-6, then ground RME12 (BN/BU)/ RME39 (GY/BN) RR door C802-1 C2364A-17, then ground VME12 (BN/WH)/ VME40 (BU/WH) C802-2 C2364A-5, then ground RME12 (BN/BU)/ RME40 (VT/WH) Subwoofer #1 C4212-1 C2364A-16, then ground VME01 (GN) C4212-2 C2364A-4, then ground RME01 (GY) Subwoofer #2 C4212-3 C2364A-15, then ground VME02 (VT) C4212-4 C2364A-3, then ground RME02 (YE)
(Continued)
Suspect Speaker Positive Meter Lead Negative Meter Lead Circuit LH D-pillar C4337-1 C2364B-12, then ground VME30 (GN/BN) C4337-2 C4338-1, then ground VME47 (BN/VT) RH D-pillar C4338-1 C4337-2, then ground VME47 (BN/VT) C4338-2 C2364B-5, then ground RME30 (VT/BN) LF tweeter C513-1 C2364B-11, then ground VME08 (GN/OG) C513-2 C2364B-4, then ground RME08 (GY/OG) RF tweeter C613-1 C2364B-10, then ground VME11 (VT/OG) C613-2 C2364B-3, then ground RME11 (YE/OG)
Is the resistance less than 5 ohms between the suspect speaker and the audio DSP (Digital Signal Processing) module, and greater than 10,000 ohms between the suspect speaker and ground?
Yes
GO to E12.
No
REPAIR the circuit in question. CLEAR any DTCs present. TEST the system for normal operation.
E7 CHECK THE ACM (Audio Front Control Module) REAR SPEAKER OUTPUT SIGNALS
- Ignition OFF.
- Disconnect: Audio RCU (Rear Control Unit) Module C3077.
- Operate the audio system in radio tuner (AM/FM), single-play mode.
- Measure the AC voltage between the audio RCU (Rear Control Unit) module C3077-11, circuit VME12 (BN/WH), harness side and the audio RCU (Rear Control Unit) module C3077-12, circuit RME12 (BN/BU), harness side.
- Measure the AC voltage between the audio RCU (Rear Control Unit) module C3077-27, circuit VME09 (WH/GN), harness side and the audio RCU (Rear Control Unit) module C3077-28, circuit RME09 (BN/YE), harness side.
Is a fluctuating AC voltage present?
Yes
GO to E10.
No
GO to E8.
E8 CHECK THE AUDIO CIRCUITS TO THE AUDIO RCU (Rear Control Unit) MODULE FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Disconnect: ACM (Audio Front Control Module) C240A.
- Ignition ON.
- Measure the voltage between the audio RCU (Rear Control Unit) module, harness side and ground as follows:
Positive Meter Lead Negative Meter Lead C3077-11 VME12 (BN/WH) Ground C3077-12 RME12 (BN/BU) Ground C3077-27 VME09 (WH/GN) Ground C3077-28 RME09 (BN/YE) Ground
Is any voltage present?
Yes
REPAIR the circuit in question. TEST the system for normal operation.
No
GO to E9.
E9 CHECK THE AUDIO CIRCUITS TO THE AUDIO RCU (Rear Control Unit) MODULE FOR AN OPEN OR SHORT TO GROUND
- Ignition OFF.
- Measure the resistance between the ACM (Audio Front Control Module), harness side and the audio RCU (Rear Control Unit) module, harness side; and between the ACM (Audio Front Control Module), harness side and ground as follows:
Positive Meter Lead Negative Meter Lead Circuit C240A-10 C3077-11, then ground VME12 (BN/WH) C240A-23 C3077-12, then ground RME12 (BN/BU) C240A-9 C3077-27, then ground VME09 (WH/GN) C240A-22 C3077-28, then ground RME09 (BN/YE)
Are the resistances less than 5 ohms between the ACM (Audio Front Control Module) and the audio RCU (Rear Control Unit) module, and greater than 10,000 ohms between the ACM (Audio Front Control Module) and ground?
Yes
GO to E10.
No
REPAIR the circuit in question. TEST the system for normal operation.
E10 CHECK THE AUDIO SIGNALS TO THE AUDIO DSP (Digital Signal Processing) MODULE FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Disconnect: ACM (Audio Front Control Module) C240A (Except Subwoofer Concern) or ACM (Audio Front Control Module) C240D (Subwoofer Concern).
- Ignition ON.
- Measure the voltage between the audio DSP (Digital Signal Processing) module, harness side and ground as follows:
Suspect Speaker Bank Positive Meter Lead Negative Meter Lead LH front C2364C-7 VME07 (WH) Ground C2364C-17 RME07 (WH/BN) Ground RH front C2364C-8 VME10 (WH/VT) Ground C2364C-18 RME10 (WH/OG) Ground LH rear C2364C-4 VME09 (WH/GN) Ground C2364C-14 RME09 (BN/YE) Ground RH rear C2364C-10 VME12 (BN/WH) Ground C2364C-20 RME12 (BN/BU) Ground Center imaging (with navigation) C2364C-9 VME51 (BN/BU) Ground C2364C-19 RME51 (WH/BU) Ground Subwoofer C2364C-15 VME22 (VT/GN) Ground C2364C-5 RME22 (GN/WH) Ground
Is any voltage present?
Yes
REPAIR the circuit in question. CLEAR any DTCs present. TEST the system for normal operation.
No
GO to E11.
E11 CHECK THE AUDIO SIGNALS TO THE AUDIO DSP (Digital Signal Processing) MODULE FOR AN OPEN OR SHORT TO GROUND
- Ignition OFF.

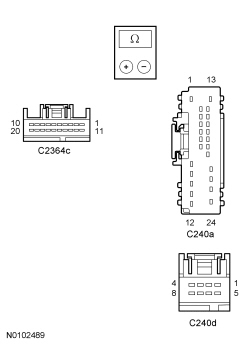

- For a front speaker concern, measure the voltage between the audio DSP (Digital Signal Processing) module, harness side and the ACM (Audio Front Control Module), harness side; and between the audio DSP (Digital Signal Processing) module, harness side and ground as follows:
Suspect Speaker Bank Positive Meter Lead Negative Meter Lead Circuit LH front C2364C-7 C240A-8, then ground VME07 (WH) C2364C-17 C240A-21, then ground RME07 (WH/BN) RH front C2364C-8 C240A-11, then ground VME10 (WH/VT) C2364C-18 C240A-12, then ground RME10 (WH/OG) Center imaging C2364C-9 C240D-5, then ground VME51 (BN/BU) C2364C-19 C240D-6, then ground RME51 (WH/BU) Subwoofer C2364C-15 C240D-1, then ground VME22 (VT/GN) C2364C-5 C240D-2, then ground RME22 (GN/WH)
- For a rear speaker concern, measure the voltage between the audio DSP (Digital Signal Processing) module, harness side and the audio RCU (Rear Control Unit) module, harness side; and between the audio DSP (Digital Signal Processing) module, harness side and ground as follows:
Suspect Speaker Bank Positive Meter Lead Negative Meter Lead Circuit LH rear C2364C-4 C3077-30, then ground VME09 (WH/GN) C2364C-14 C3077-29, then ground RME09 (BN/YE) RH rear C2364C-10 C3077-14, then ground VME12 (BN/WH) C2364C-20 C3077-13, then ground RME12 (BN/BU)
Are the resistances less than 5 ohms between the audio DSP (Digital Signal Processing) module and the suspect module, and greater than 10,000 ohms between the audio DSP (Digital Signal Processing) module and ground?
Yes
For a front speaker concern, GO to E13.
For a rear speaker concern GO to E14.
No
REPAIR the circuit in question. CLEAR any DTCs present. TEST the system for normal operation.
E12 CHECK FOR CORRECT AUDIO DSP (Digital Signal Processing) MODULE OPERATION
- Ignition OFF.
- Connect: All Disconnected Connectors.
- Disconnect all the audio DSP (Digital Signal Processing) module connectors.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect all the audio DSP (Digital Signal Processing) module connectors and make sure they seat correctly.
- Operate the system and determine if the concern is still present.
Is the concern still present?
Yes
INSTALL a new audio DSP (Digital Signal Processing) module. REFER to Audio Digital Signal Processing (DSP) Module . TEST the system for normal operation.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR any DTCs.
E13 CHECK FOR CORRECT ACM (Audio Front Control Module) OPERATION
- Ignition OFF.
- Connect: All Disconnected Connectors.
- Disconnect all the ACM (Audio Front Control Module) connectors.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect all the ACM (Audio Front Control Module) connectors and make sure they seat correctly.
- Operate the system and determine if the concern is still present.
Is the concern still present?
Yes
INSTALL a new ACM (Audio Front Control Module). REFER to Audio Control Module (ACM) . TEST the system for normal operation.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR any DTCs present.
E14 CHECK FOR CORRECT AUDIO RCU (Rear Control Unit) MODULE OPERATION
- Ignition OFF.
- Connect: All Disconnected Connectors.
- Disconnect the audio RCU (Rear Control Unit) module connector.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect the audio RCU (Rear Control Unit) module connector and make sure it seats correctly.
- Operate the system and determine if the concern is still present.
Is the concern still present?
Yes
INSTALL a new audio RCU (Rear Control Unit) module. REFER to Audio Rear Control Unit (RCU) Module . TEST the system for normal operation.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
