Terminal not properly seated

WARNING: This page is about a different variant/trim than selected.

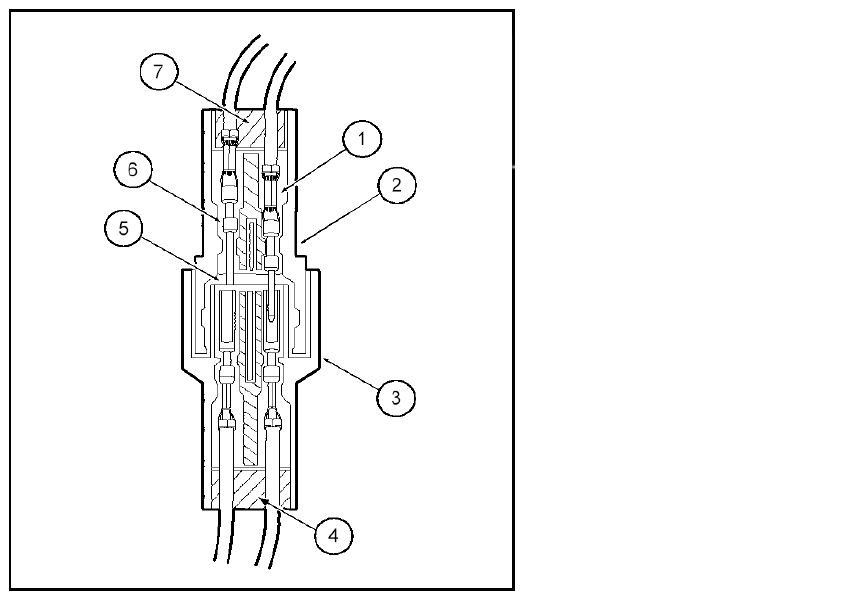

  1. = Locked terminal
  2. = Male half
  3. = Female half
  4. = Seal
  5. = Intermittent contact
  6. = Unlocked terminal (Hidden by wire seal)
  7. = Seal

Check for unlocked terminals by pulling each wire at the end of the connector.

Fig 1: Identifying Restraint System Terminals Not Properly Seated
G07922582Courtesy of FORD MOTOR CO.
