Broken wire strands in harness

WARNING: This page is about a different variant/trim than selected.
  1. = Wiring harness tape
  2. = Wiring strand
  3. = Broken strands intermittent signal
  4. = Circuit insulation

Remove the tape and flex/feel each circuit for a reduction in diameter at break.

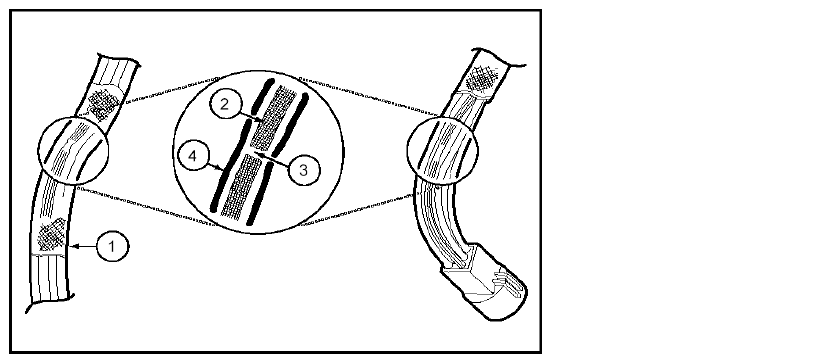

Fig 1: Identifying Broken Wire Strands In Harness
G07922588Courtesy of FORD MOTOR CO.
