Wipers and Washers

WARNING: This page is about a different variant/trim than selected.

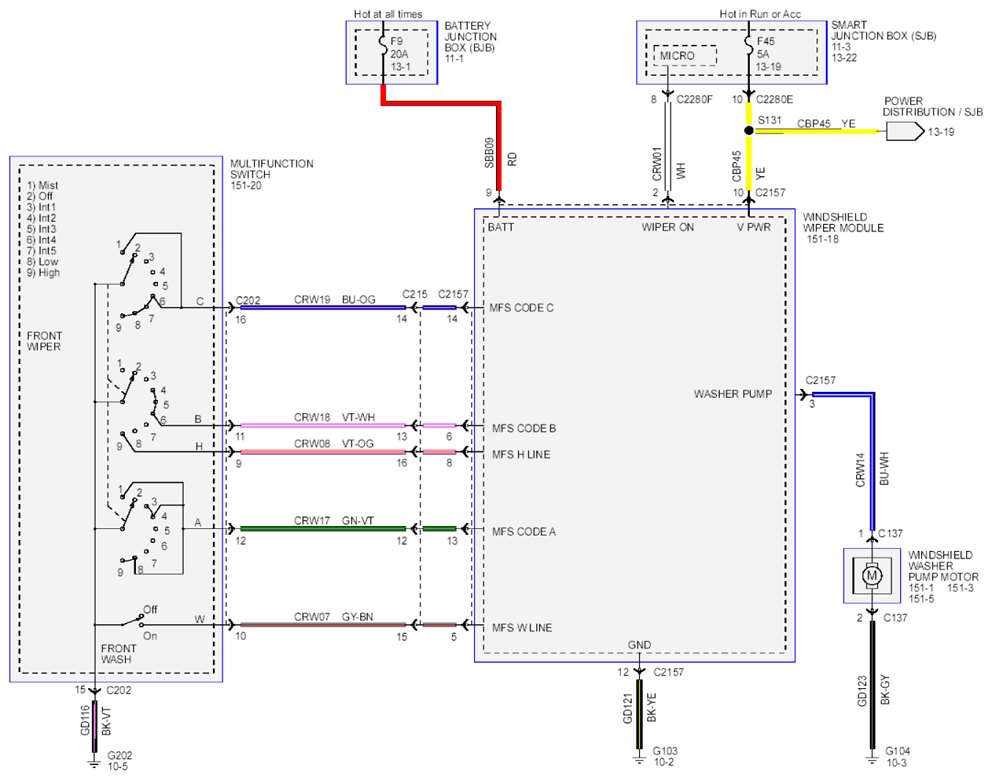

Fig 1: Wipers And Washers Wiring Diagram (1 Of 2)
G07922720Courtesy of FORD MOTOR CO.

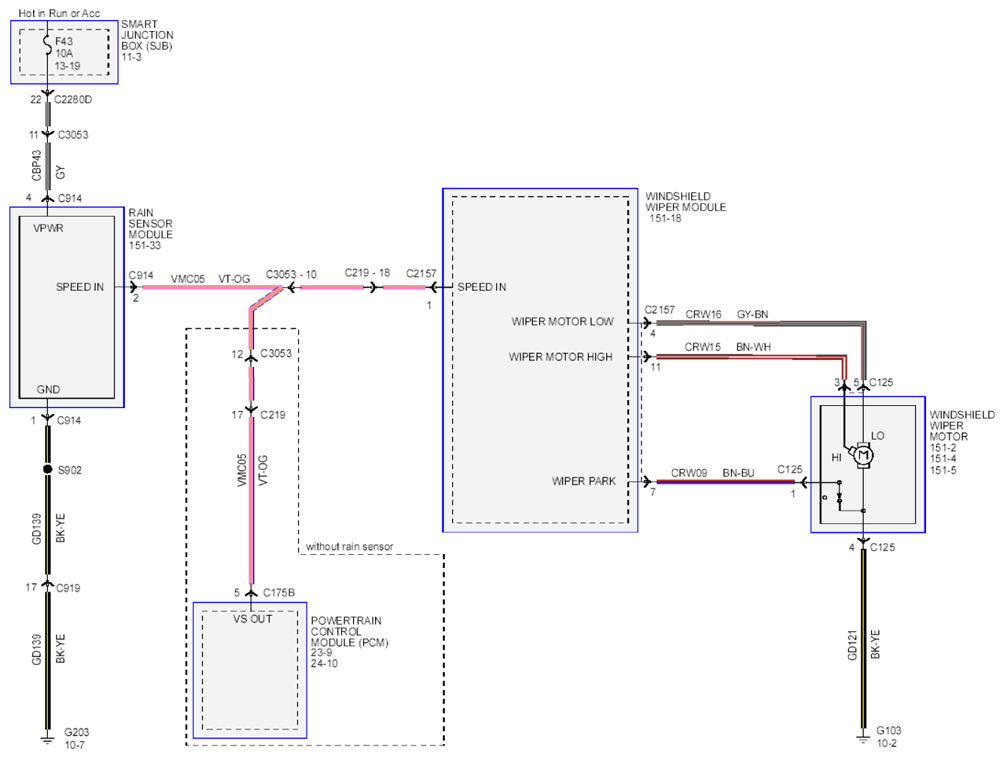

Fig 2: Wipers And Washers Wiring Diagram (2 Of 2)
G07922721Courtesy of FORD MOTOR CO.
