Vehicle Dynamic Systems: 3.5L

WARNING: This page is about a different variant/trim than selected.

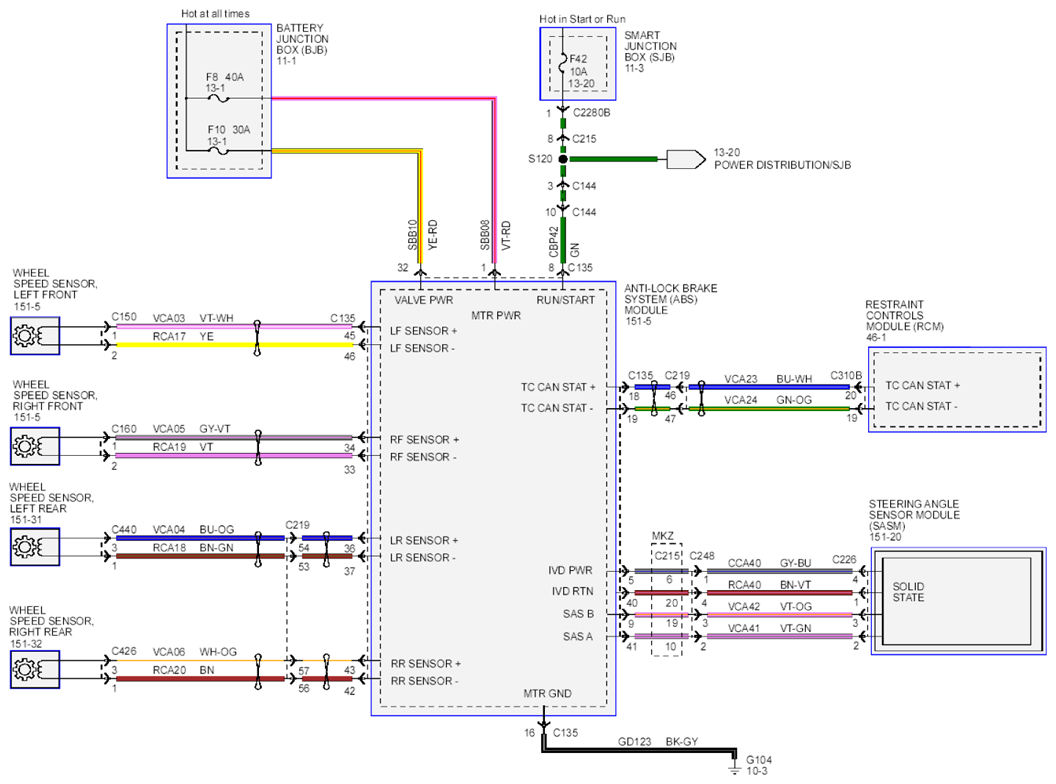

Fig 1: Vehicle Dynamic System Wiring Diagram - 3.5L (1 Of 2)
G07922689Courtesy of FORD MOTOR CO.
Fig 2: Vehicle Dynamic System Wiring Diagram - 3.5L (2 Of 2)
G07922690Courtesy of FORD MOTOR CO.
