Turn Signal_Stop_Hazard Lamps: Fusion

WARNING: This page is about a different variant/trim than selected.

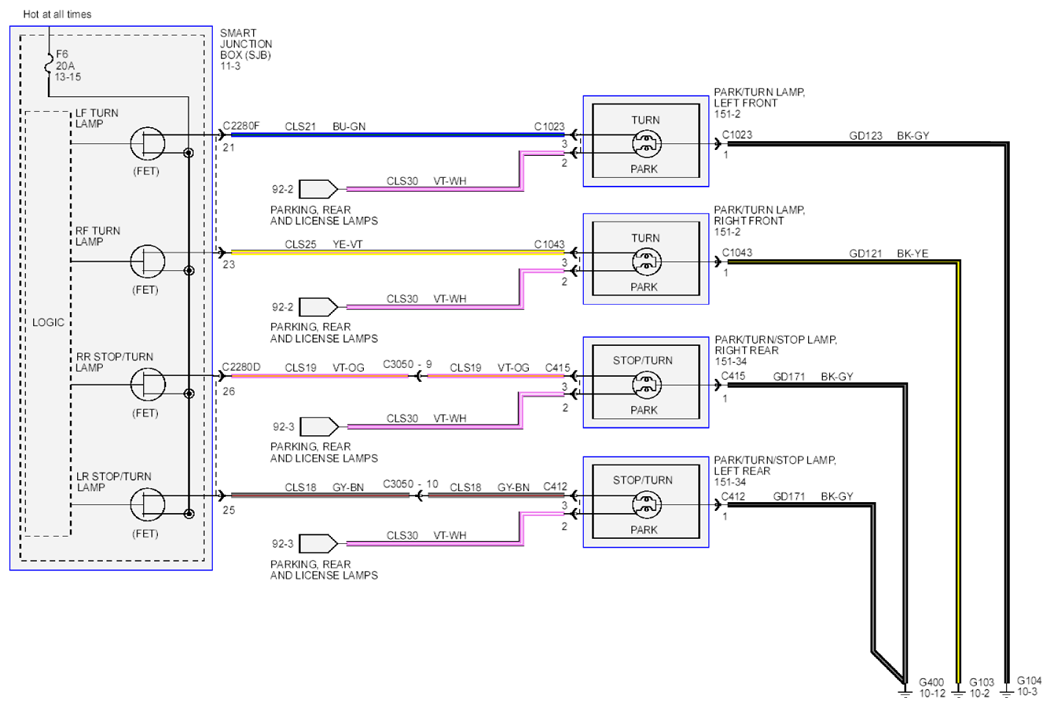

Fig 1: Turn Signal Stop Hazard Lamps Wiring Diagram - Fusion (1 Of 2)
G07922737Courtesy of FORD MOTOR CO.

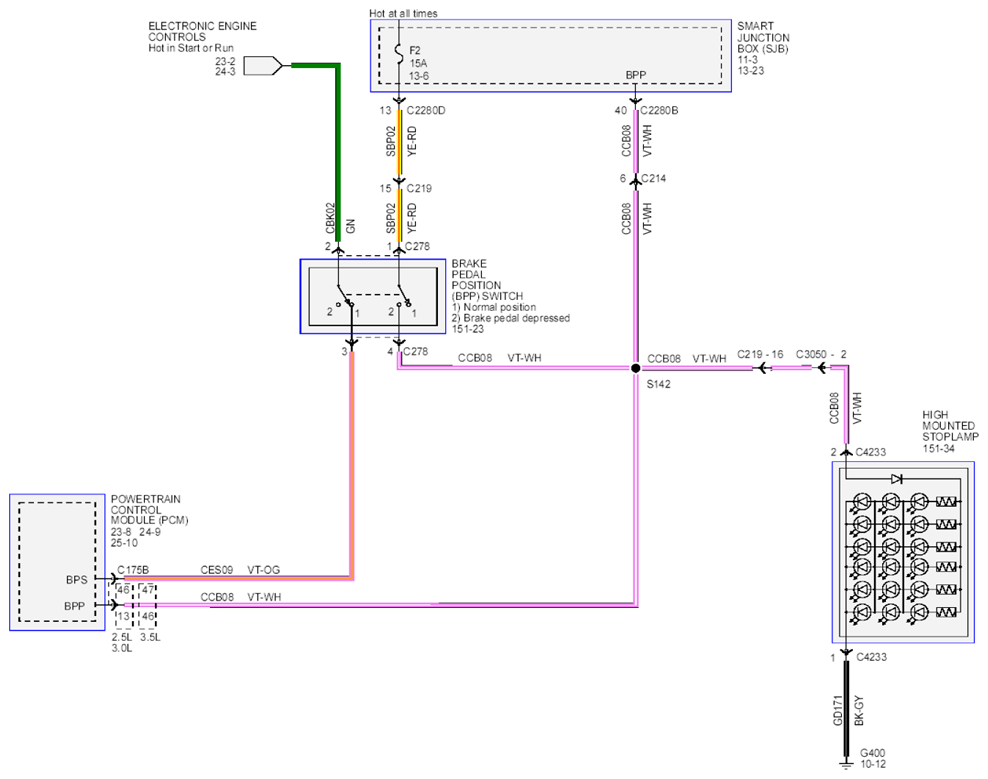

Fig 2: Turn Signal Stop Hazard Lamps Wiring Diagram - Fusion (2 Of 2)
G07922738Courtesy of FORD MOTOR CO.
