Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Transmission Controls-6Speed
>>
3.5L
Transmission Controls-6Speed: 3.5L
WARNING:
This page is about a different variant/trim than selected.

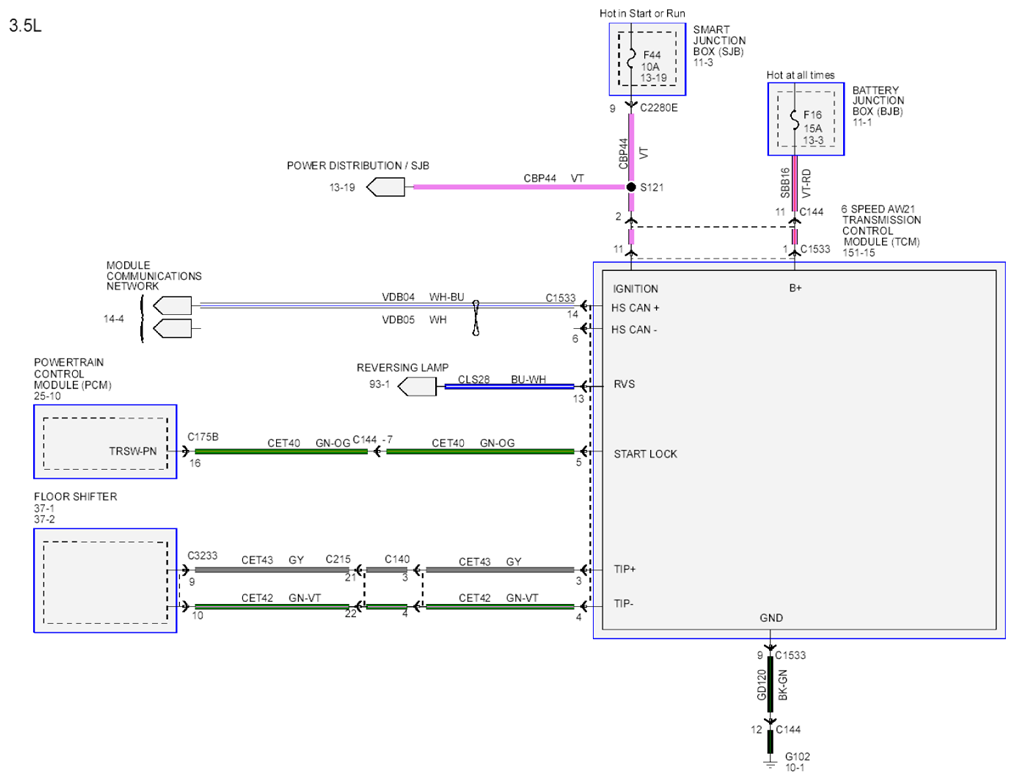

Fig 1: Transmission Controls Wiring Diagram - 6 Speed (3.5L)
Courtesy of FORD MOTOR CO.
