Transmission Controls-6F35

WARNING: This page is about a different variant/trim than selected.

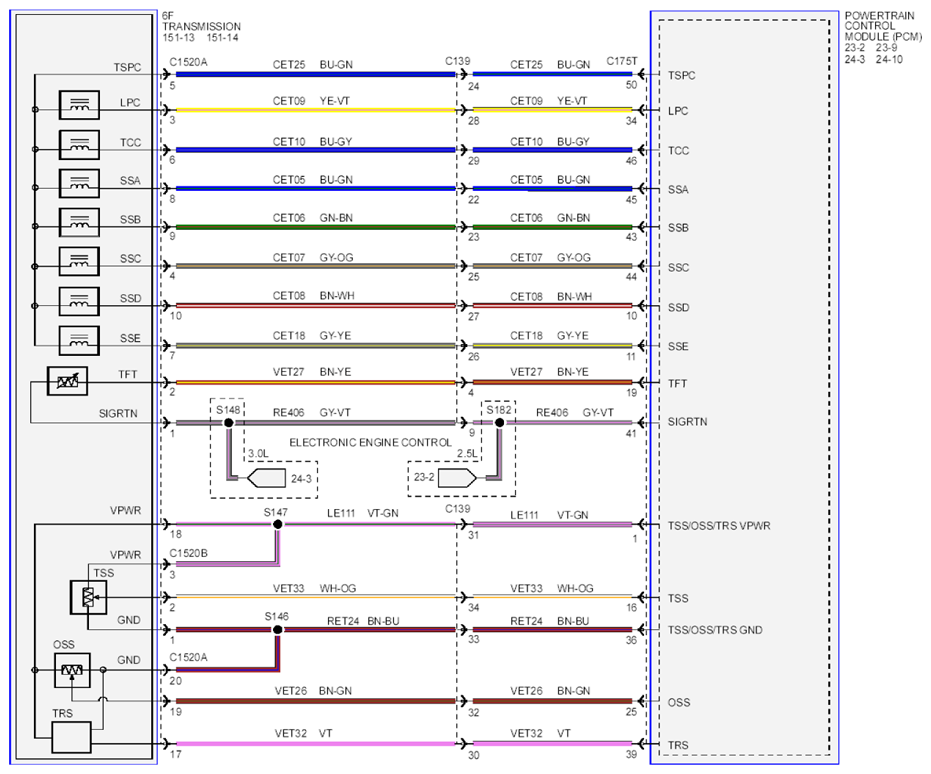

Fig 1: Transmission Controls Wiring Diagram - 6F35 (1 Of 2)
G07922677Courtesy of FORD MOTOR CO.
Fig 2: Transmission Controls Wiring Diagram - 6F35 (2 Of 2)
G07922678Courtesy of FORD MOTOR CO.
