Supplemental Restraint System

WARNING: This page is about a different variant/trim than selected.

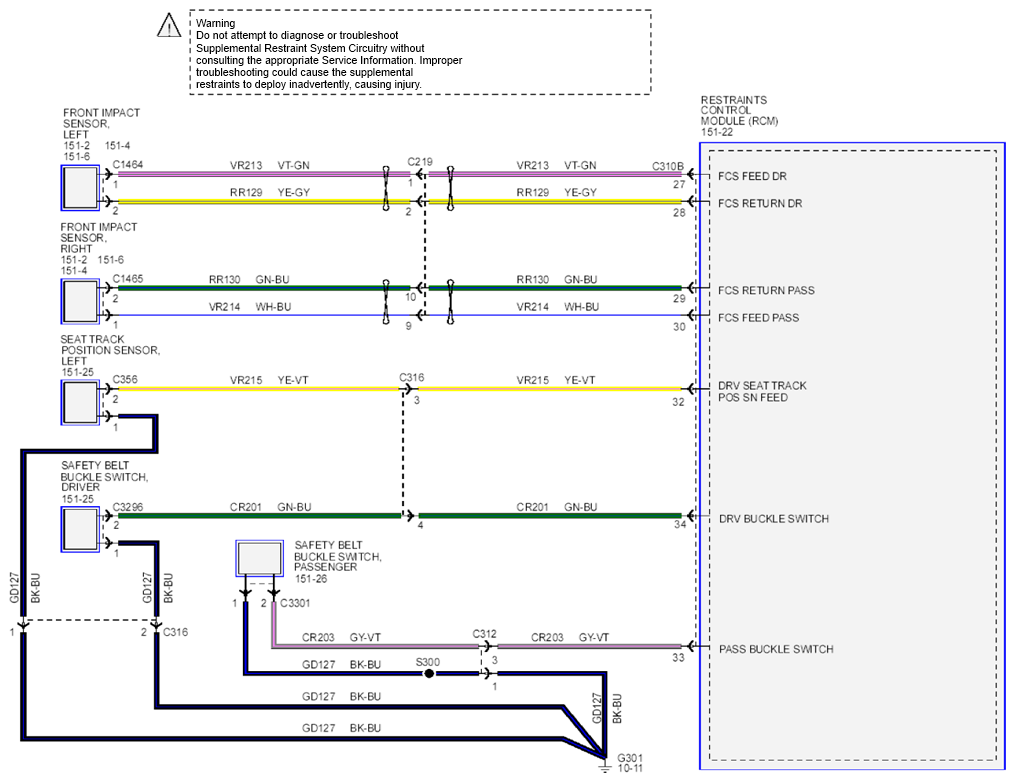

Fig 1: Supplemental Restraints Wiring Diagrams (1 Of 6)

Courtesy of FORD MOTOR CO.

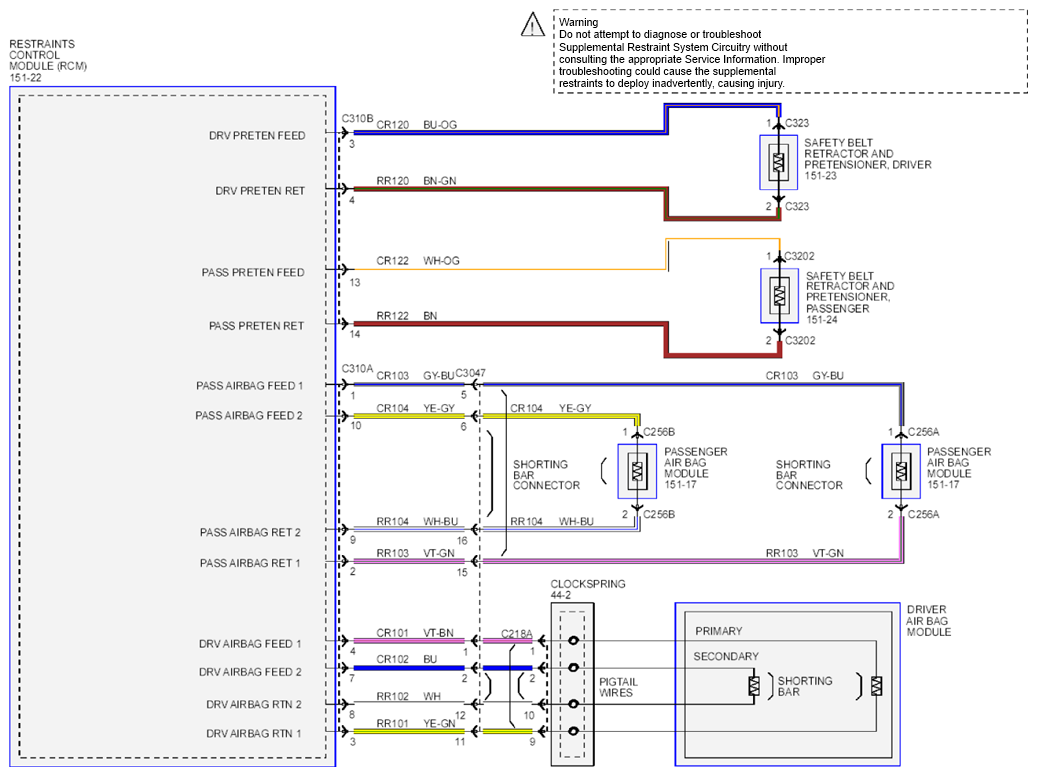

Fig 2: Supplemental Restraints Wiring Diagrams (2 Of 6)

Courtesy of FORD MOTOR CO.

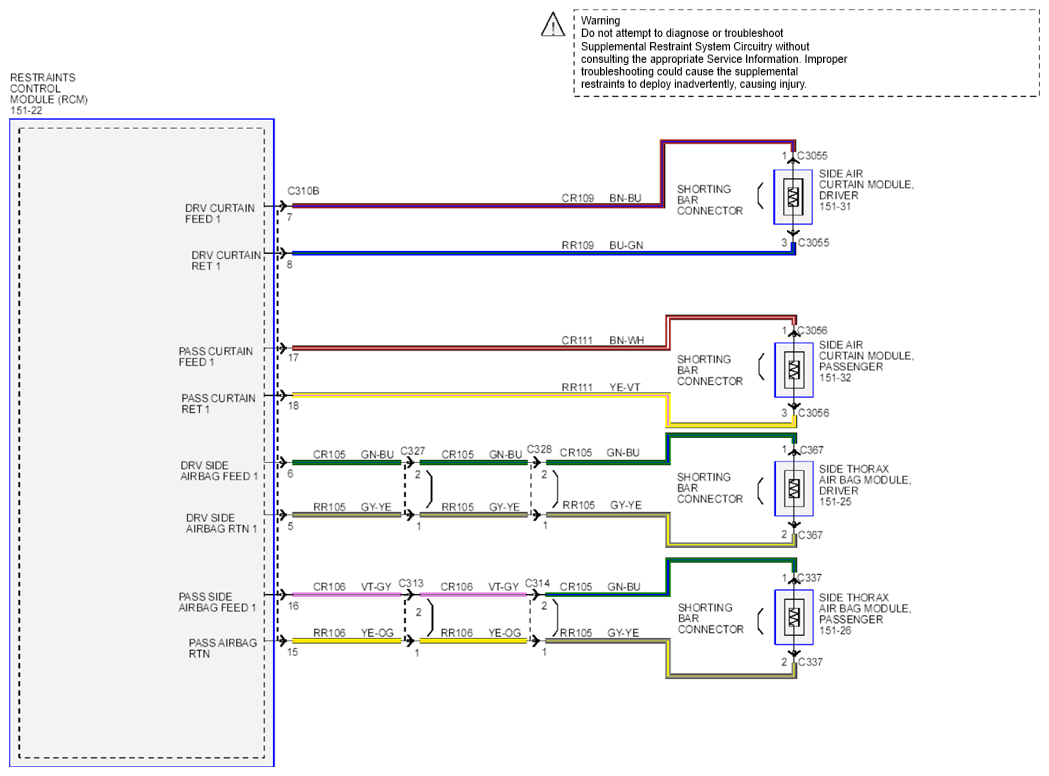

Fig 3: Supplemental Restraints Wiring Diagrams (3 Of 6)

Courtesy of FORD MOTOR CO.

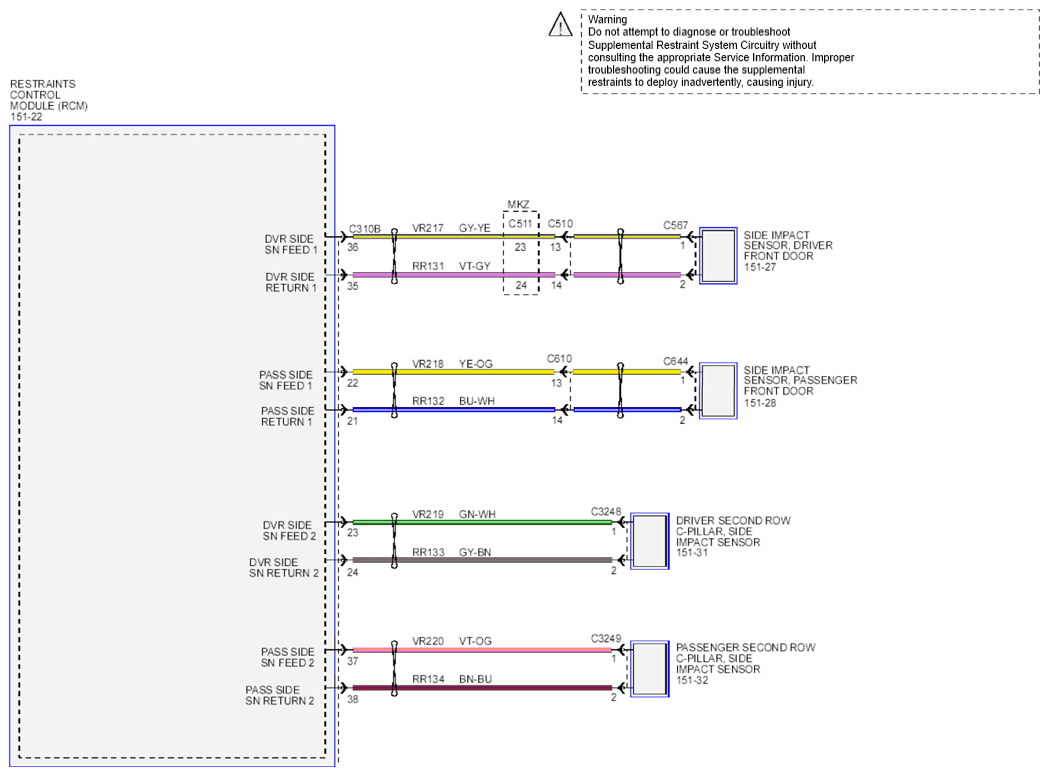

Fig 4: Supplemental Restraints Wiring Diagrams (4 Of 6)

Courtesy of FORD MOTOR CO.

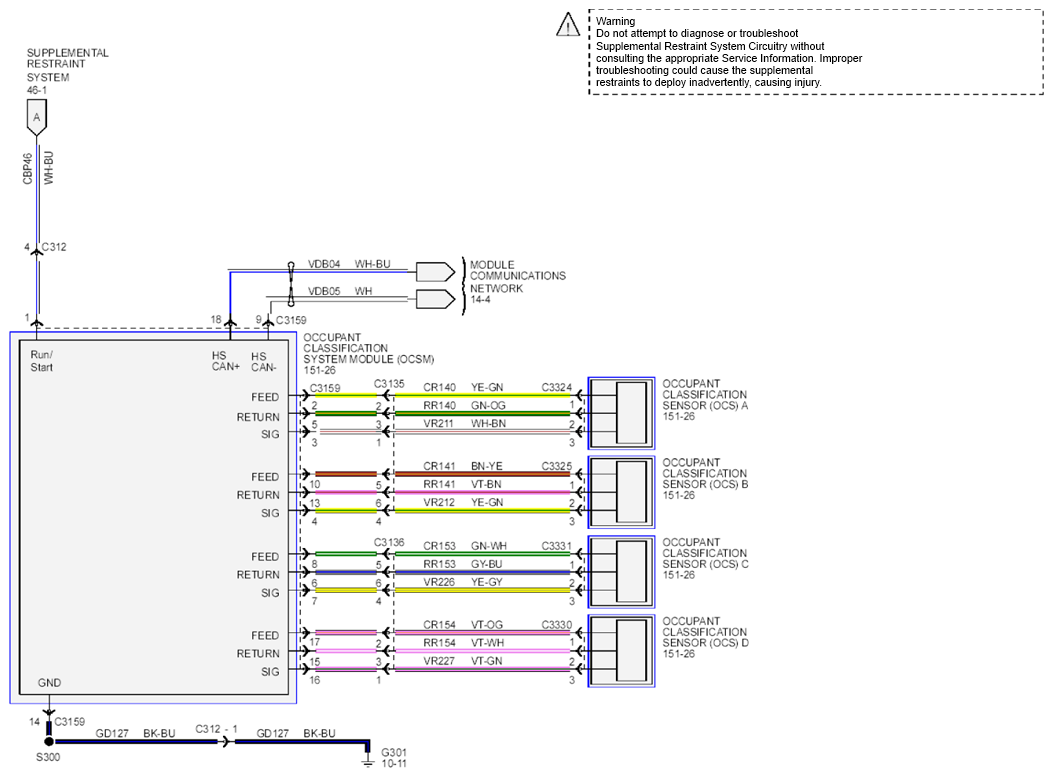

Fig 5: Supplemental Restraints Wiring Diagrams (5 Of 6)

Courtesy of FORD MOTOR CO.

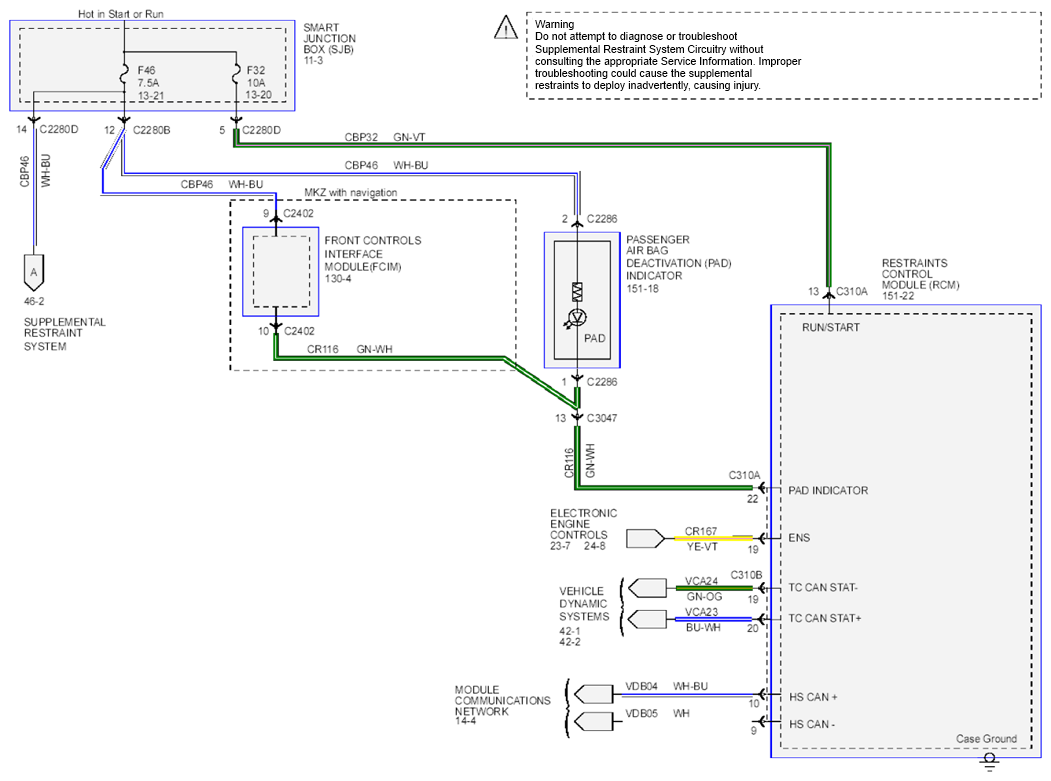

Fig 6: Supplemental Restraints Wiring Diagrams (6 Of 6)

Courtesy of FORD MOTOR CO.
