Starting System

WARNING: This page is about a different variant/trim than selected.

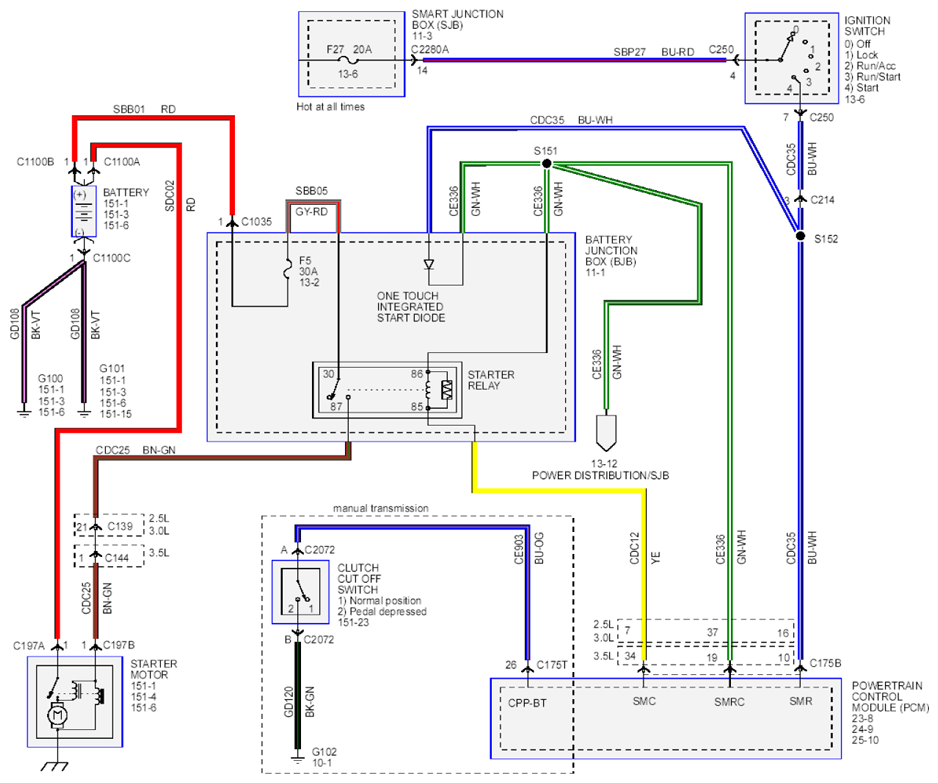

Fig 1: Starting System Wiring Diagram (1 Of 2)
G07922645Courtesy of FORD MOTOR CO.
Fig 2: Starting System Wiring Diagram (2 Of 2)
G07922646Courtesy of FORD MOTOR CO.
