Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Shift Interlock
>>
Fusion
Shift Interlock: Fusion
WARNING:
This page is about a different variant/trim than selected.

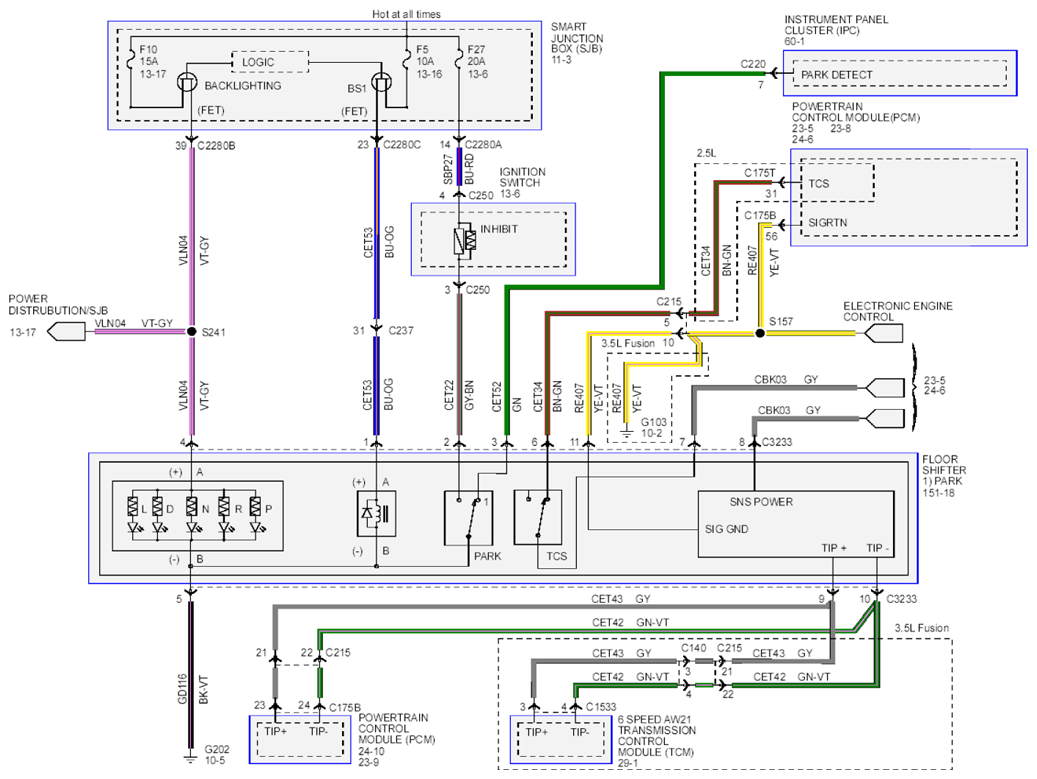

Fig 1: Shift Interlock Wiring Diagrams - Fusion
Courtesy of FORD MOTOR CO.
