Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Reversing Lamps
>>
Manual Transmission
Manual Transmission
WARNING:
This page is about a different variant/trim than selected.

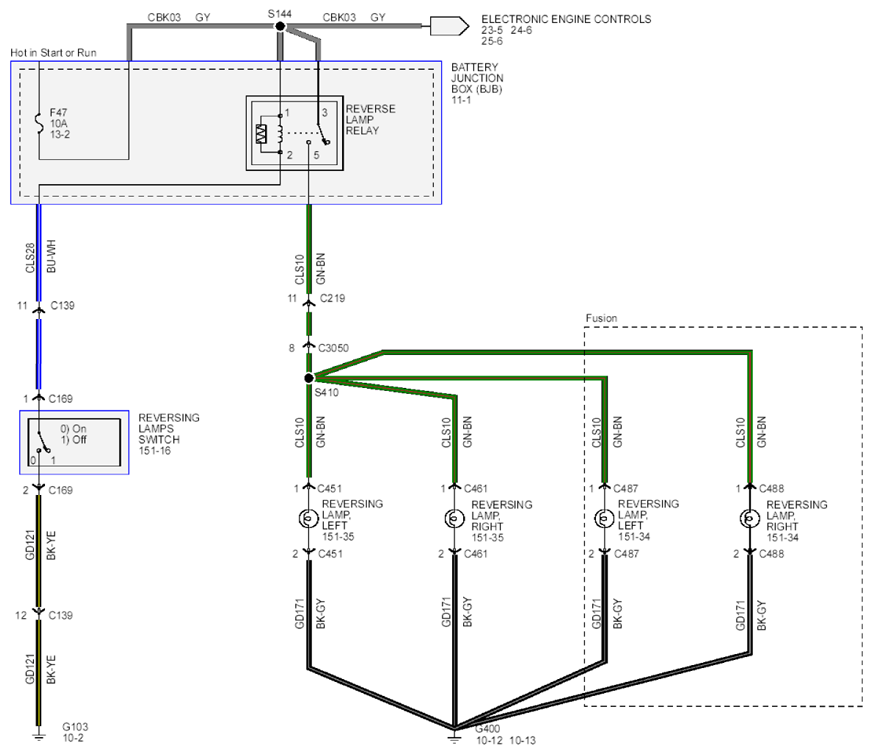

Fig 1: Reversing Lamps Wiring Diagram - Manual Transmission
Courtesy of FORD MOTOR CO.
