Remote Keyless Entry and Alarm: Fusion

WARNING: This page is about a different variant/trim than selected.
Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - Fusion (1 Of 2)
G07922763Courtesy of FORD MOTOR CO.

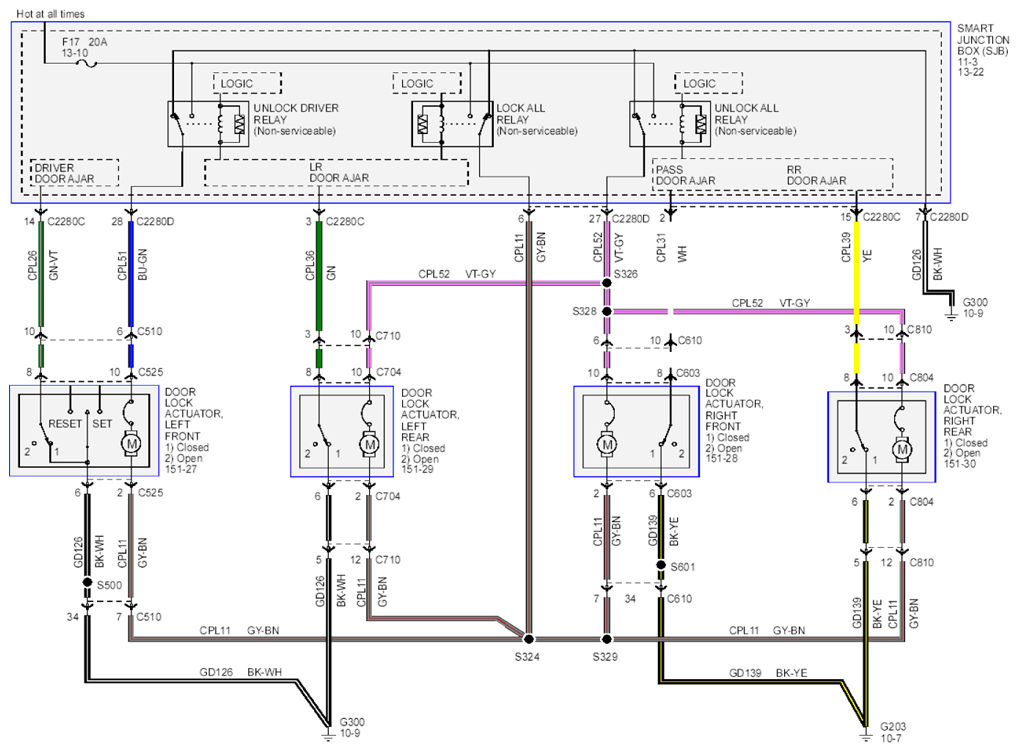

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - Fusion (2 Of 2)
G07922764Courtesy of FORD MOTOR CO.
