Power Windows: MKZ

WARNING: This page is about a different variant/trim than selected.

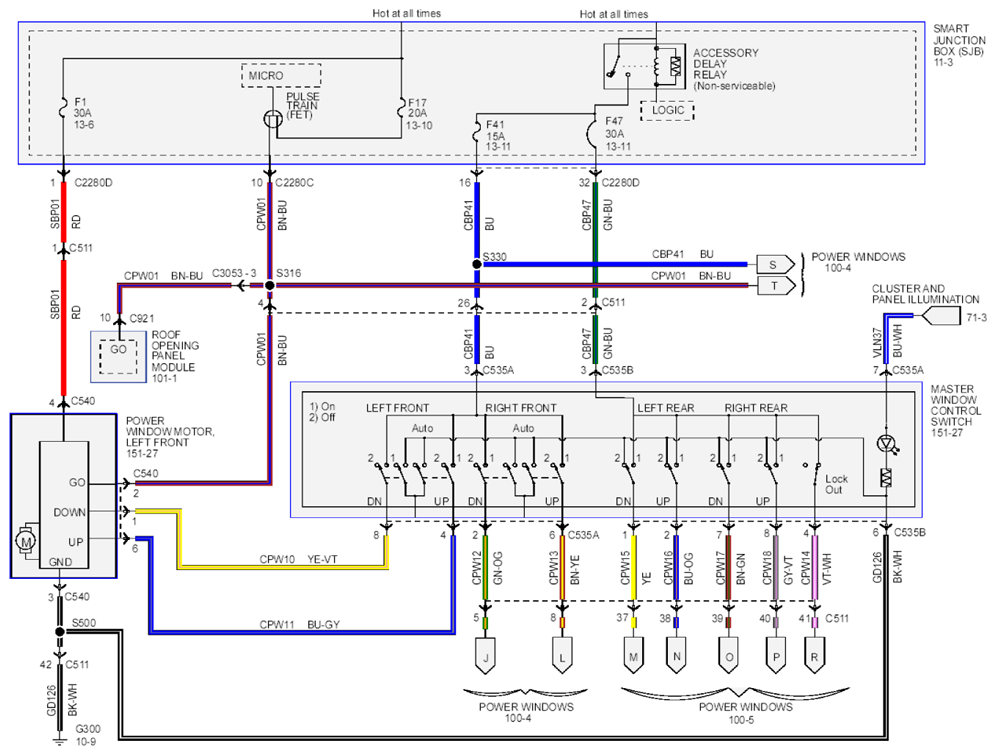

Fig 1: Power Windows Wiring Diagram - MKZ (1 Of 3)
G07922750Courtesy of FORD MOTOR CO.

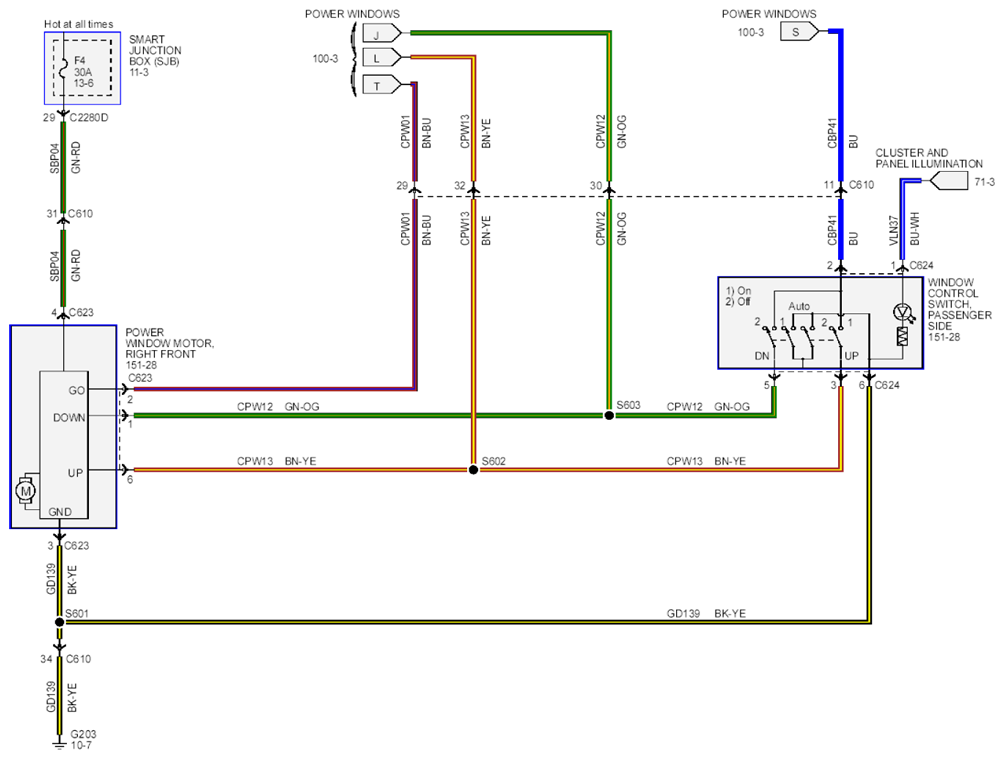

Fig 2: Power Windows Wiring Diagram - MKZ (2 Of 3)
G07922751Courtesy of FORD MOTOR CO.

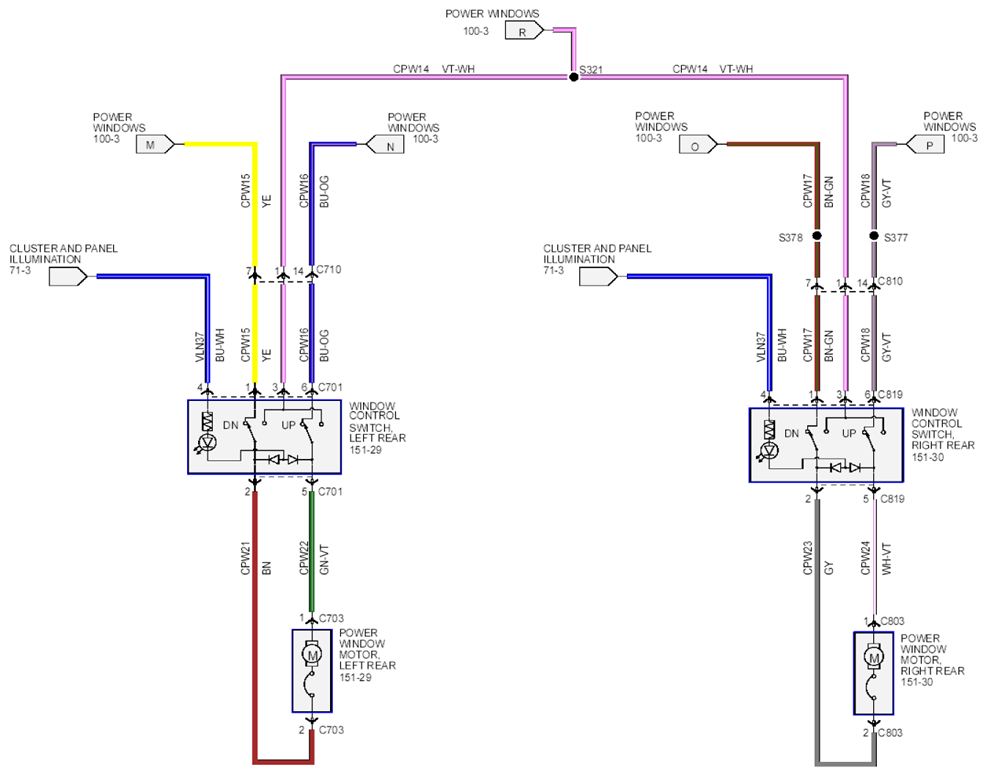

Fig 3: Power Windows Wiring Diagram - MKZ (3 Of 3)
G07922752Courtesy of FORD MOTOR CO.
