Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Power Windows
>>
Fusion, Without Passenger One Touch
Fusion, Without Passenger One Touch
WARNING:
This page is about a different variant/trim than selected.

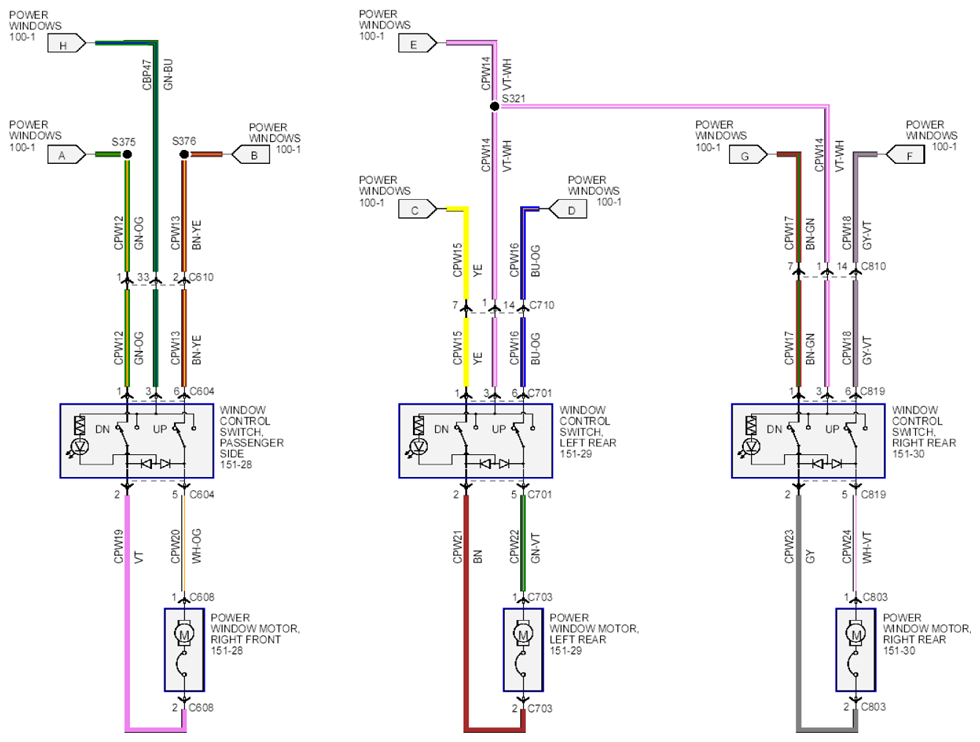

Fig 1: Power Windows Wiring Diagram - Fusion, Without Passenger One Touch (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Power Windows Wiring Diagram - Fusion, Without Passenger One Touch (2 Of 2)
Courtesy of FORD MOTOR CO.
