Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Power Steering Controls
Power Steering Controls
WARNING:
This page is about a different variant/trim than selected.

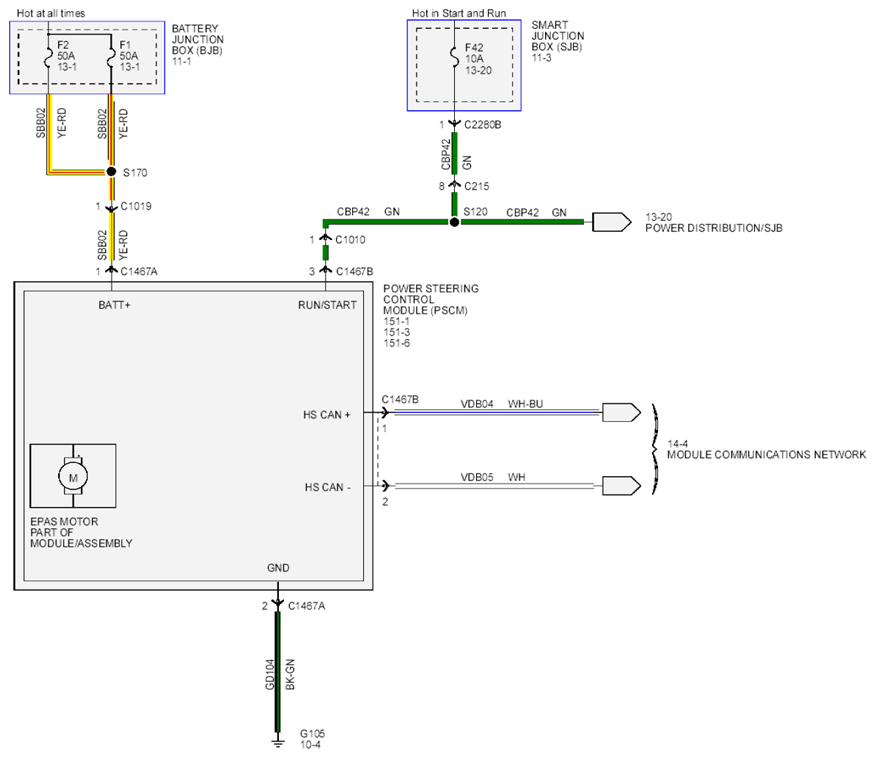

Fig 1: Power Steering Controls Wiring Diagram
Courtesy of FORD MOTOR CO.
