Section 27 (OEM Wiring Diagrams (Except Hybrid))
>>
Power Seats
>>
4-Way Passenger Seat
4-Way Passenger Seat
WARNING:
This page is about a different variant/trim than selected.

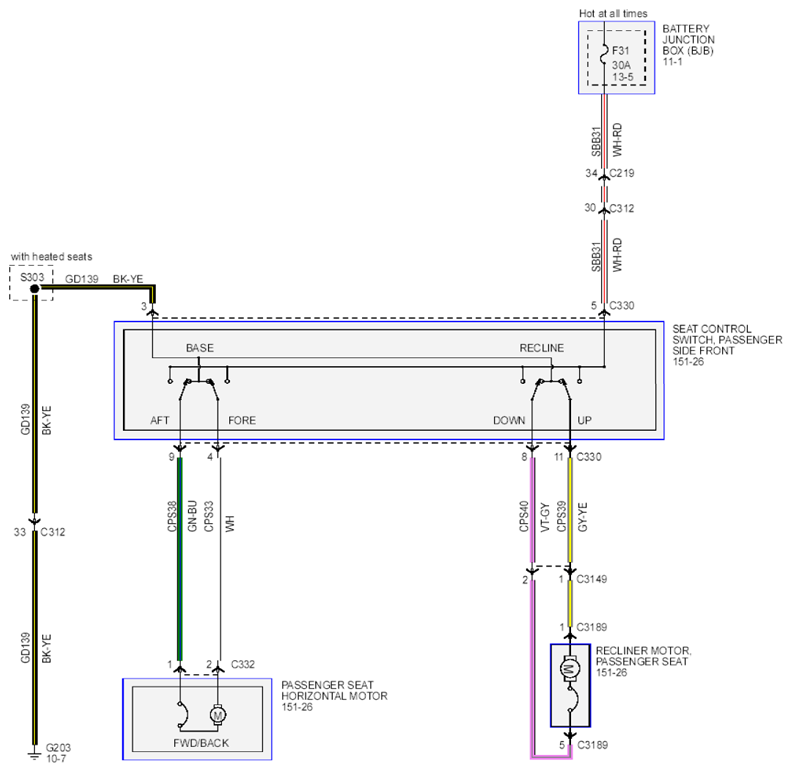

Fig 1: Power Seats Wiring Diagram - 4-Way Passenger Seat
Courtesy of FORD MOTOR CO.
